| Specification Compliance | ATX12V/EPS12V |
| Specification Compliance | ATX12V/EPS12V |
| Brand Name | Thermaltake |
| Depth | 6.7" |
| Efficiency | 85% |
| Environmental Certification | cTUVus |
| Environmental Certification | 80 Plus Bronze |
| Environmental Certification | TÜV |
| Environmentally Friendly | Yes |
| Form factor | Internal |
| Height | 3.4" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Limited Warranty | 7 Year |
| Manufacturer | Thermaltake Technology Co. Ltd |
| Manufacturer Part Number | PS-SPR-0750FPCBUS-R |
| Manufacturer Website Address | http://www.thermaltakeusa.com |
| Marketing Information | Thermaltake as the pioneer who incorporates RGB lights into PSU has launched the Thermaltake Smart Pro RGB Bronze Series coming with a pre-installed patented 256 Colors Riing 14 RGB fan with 5 lighting modes to choose from and built-in memory. Featuring capacities ranging from 650W to 850W and 80 PLUS Bronze certification Smart Pro RGB Bronze Series adopts the highest quality components and fully modular design that always accommodate any mainstream build under any circumstances. One Button to Your Desired Color By pressing the RGB lighting button the fan color can be switched among a 256 Color RGB Cycle with variants including Solid Red Green Blue White and a LED Off mode. The fan is also constructed with a built-in memory function saving the color applied and insuring the same color selection every time you boot your PC. Power Supply Fan Face-Up Placement for Better Cooling With the face-up placement of the fan users can freely gaze upon their patented circular 256 multi-colored RGB fan and at the same time obtaining additional performance by using the fan as a additional exhaust mechanism repelling unwanted heat from your chassis. As the thermal image testing shown the temperature of PSU and computer system will decrease around 3°C (5.4 °F) by placing PSU face-up. Riing 14 RGB Fan with Concentrated Compression Fan Blade The fan blade is designed for high static pressure requirements of demanding applications; the concentrated compression blade is engineered to focus the weaker inner circle of air outward allowing the outer section to pressurize the air. The fan blades are optimized to enhance static pressure for an impressive cooling performance. Hydraulic bearings for silent operation guarantee ultra-low noise and the anti-vibration mounting system strengthens the product's stability during operation. Moreover In-mold injection anti-vibration rubber pads provide hassle-free usage for 80% protection coverage including all four corners. Ultra Quiet Smart Zero Fan Smart Zero Fan ensures zero noise when the fan operates below approximately 10% working load to minimize audible noise. < 50 mV Low Ripple Noise All ripples are lower than 50mV for high stability on +12V +5V or +3.3V from 0% to 100% load to ensure a high quality power supply. Low ripple noise will keep your performance-critical components such as high-end graphics cards to operate reliably for longer. Strict Voltage Regulation < ±3% The voltage regulation of the PSU is set to no more than ±3% for major rails to meet the greater performance. The strict voltage regulation of the Smart Pro RGB Bronze Series is better than Intel's standard ±5% for major rails and ±10% for -12V. High Quality Japanese 105°C/221°F Main Capacitor High quality 105 °C (221 ° F) Japanese brand main capacitor which greatly improve the durability and offer the highest stability and reliability. High Amperage Single +12V Rail & DC to DC Design Smart Pro RGB 850W Bronze is equipped with a powerful single +12V rail eliminating the limitations caused by voltage distributions delivering the power your CPU and VGA demand in any situations. Besides with DC to DC design the unit optimizes maximum energy harvest for computer systems providing the best compatibility conversion efficiency and stable voltage output. |
| Number of Fans | 1 |
| Output power | 750 W |
| Output voltage | 5 V DC @ 2.5 A |
| Output voltage | 12 V DC @ 300 mA |
| Output voltage | 5 V DC @ 22 A |
| Output voltage | 3.3 V DC @ 22 A |
| Output voltage | 12 V DC @ 62.5 A |
| Product Family | Smart Pro RGB |
| Product Line | Smart |
| Product Model | SPR-750AH3FSB-R |

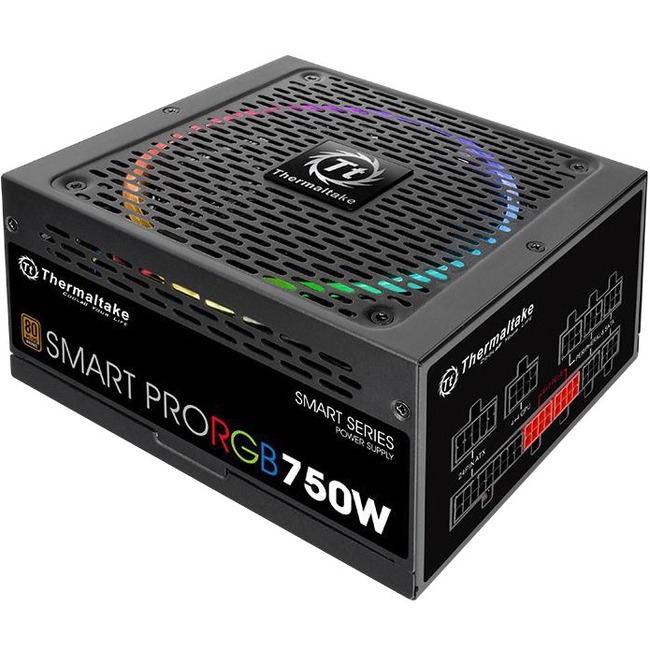

| Product Name | Smart Pro RGB 750W Bronze Fully Modular |
| Product Series | Pro RGB |
| Product Type | Power Supply |
| UPC Alternates | 098379082734 695975086359 728072216302 841163067215 841196306725 997856767693 |
| Width | 5.9" |
