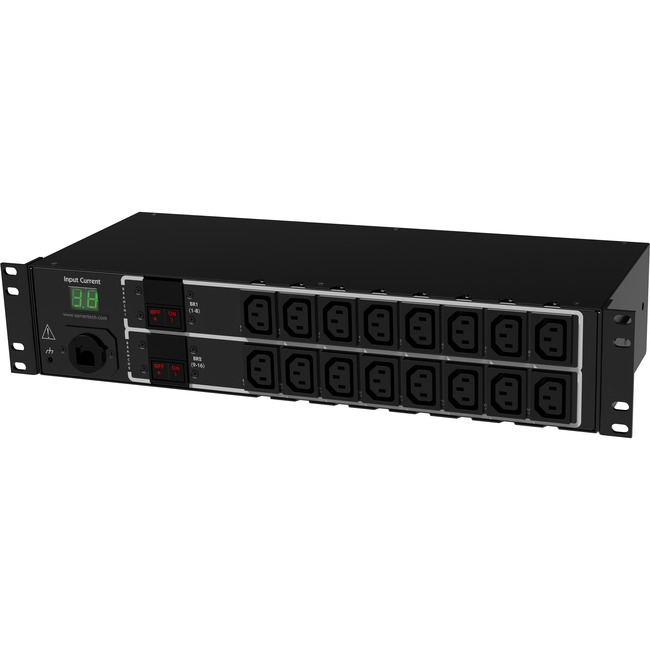

Server Technology PRO1 C1W16HR-2CAA5BAC 16-Outlets PDU - Switched - NEMA L6-30P - 16 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 2U - Horizontal - Rack-mountable
Switched - NEMA L6-30P - 16 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 2U - Horizontal - Rack-mountable
| Mounting Orientation | Horizontal |
| Mounting Orientation | Horizontal |
| PDU Type | Switched |
| PDU Type | Switched |
| Phase | Single Phase |
| Phase | Single Phase |
| Power Rating (Watt) | 5000 W |
| Power Rating (Watt) | 5000 W |
| Receptacle Detail | 16 x IEC 60320 C13 |
| Receptacle Detail | 16 x IEC 60320 C13 |
| Brand Name | Server Technology |
| Brand Name | Server Technology |
| Certifications & Standards | cTUVus |
| Depth | 7.1" |
| Depth | 7.1" |
| Environmental Certification | cTUVus |
| Environmental Certification | cTUVus |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Height | 3.5" |
| Height | 3.5" |
| Input current | 30 A |
| Input current | 30 A |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Management | - SSH
- SMTP
- Syslog
- HTTP/HTTPS
- TLSv1.2
- SSHv2
- Telnet
- SNMPv2c and v3 (GET SET Traps)
- IPv4 and IPv6
- LDAPv3/LDAPS
- TACACS+
- RADIUS
- FTP/SFTP
|
| Management | - SSH
- SMTP
- Syslog
- HTTP/HTTPS
- TLSv1.2
- SSHv2
- Telnet
- SNMPv2c and v3 (GET SET Traps)
- IPv4 and IPv6
- LDAPv3/LDAPS
- TACACS+
- RADIUS
- FTP/SFTP
|
| Manufacturer | Server Technology Inc |
| Manufacturer | Server Technology Inc |
| Manufacturer Part Number | C1W16HR-2CAA5BAC |
| Manufacturer Part Number | C1W16HR-2CAA5BAC |
| Manufacturer Website Address | http://www.servertech.com |
| Manufacturer Website Address | http://www.servertech.com |
| Marketing Information | The Server Technology® PRO1 Switched Rack PDU provides control of outlet power and local LED input current monitoring allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current voltage active power apparent power power factor crest factor and accumulated energy at the input. These power data points along with temperature and humidity measurements (provided via optional probes) are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Switched "Master" PDU can be connected to as many as three PRO1 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration. |
| Marketing Information | The Server Technology® PRO1 Switched Rack PDU provides control of outlet power and local LED input current monitoring allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current voltage active power apparent power power factor crest factor and accumulated energy at the input. These power data points along with temperature and humidity measurements (provided via optional probes) are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Switched "Master" PDU can be connected to as many as three PRO1 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration. |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Package Contents | - PRO1 C1W16HR-2CAA5BAC 16-Outlets PDU
- Mounting Brackets
|
| Package Contents | - PRO1 C1W16HR-2CAA5BAC 16-Outlets PDU
- Mounting Brackets
|
| Plug/Connector Type | NEMA L6-30P |
| Plug/Connector Type | NEMA L6-30P |
| Product Name | PRO1 C1W16HR-2CAA5BAC 16-Outlets PDU |
| Product Name | PRO1 C1W16HR-2CAA5BAC 16-Outlets PDU |
| Product Series | PRO1 |
| Product Series | PRO1 |
| Product Type | PDU |
| Product Type | PDU |
| Protection Type | Double Pole |
| Protection Type | Overcurrent Protection |
| Protection Type | Overcurrent Protection |
| Protection Type | Double Pole |
| Rack Height | 2U |
| Rack Height | 2U |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Width | 17.2" |
| Width | 17.2" |
