Kramer WP-20 Video Extender Transmitter - 2 Input Device - 590.55 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x VGA In - 4K - 4096 x 2160 - Twisted Pair
2 Input Device - 590.55 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x VGA In - 4K - 4096 x 2160 - Twisted Pair
| Transmitter Depth | 2.01" |
| Transmitter Height | 4.49" |
| Transmitter Weight (Approximate) | 8.11 oz |
| Transmitter Width | 4.57" |
| Brand Name | Kramer |
| Connectivity technology | Wired |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Graphics Modes | 4K |
| Limited Warranty | 7 Year |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | WP-20 |
| Manufacturer Website Address | http://www.kramerelectronics.com |

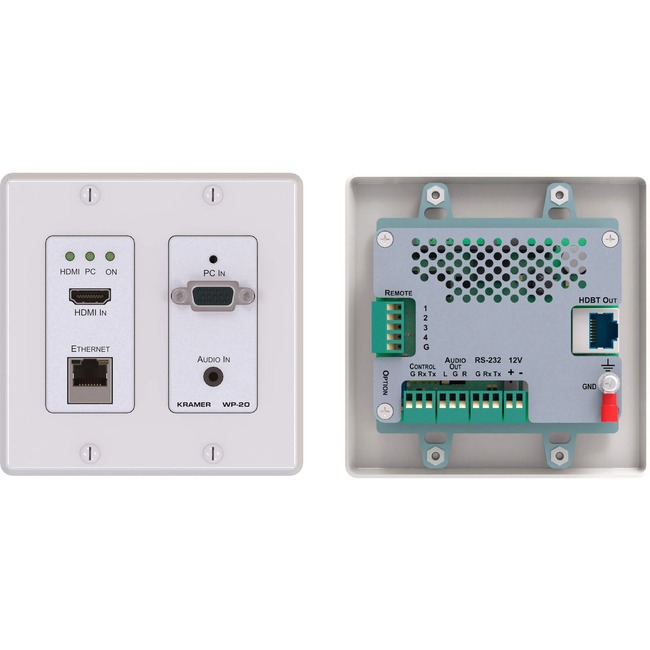

| Marketing Information | WP-20 is a 4K UHD HDBaseT active wall plate auto switcher for HDMI VGA and analog audio signals that supports resolutions up to 4K@60Hz (4:2:0) UHD. The device has EDID management various control options and audio embedding. The unit is a fully-featured auto-switcher with the convenience and simplicity of a wall plate. WP-20 is easy to configure can be powered remotely over Ethernet (PoE) and is designed for any size room. - Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
- Max. Resolution - Up to 4K@60Hz (4:2:0) UHD and WUXGA.
- HDTV Compatible.
- HDCP Compliant - Works with sources that support HDCP repeater mode.
- HDMI Support - Deep Color x.v.Color™ and 3D.
- Automatic Live Input Detection - Based on video clock presence.
- Automatic Input Selection - Based on manual selection or last connected input.
- Automatic Analog Audio Detection & Embedding.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
- Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
- Range - Up to 130m (430ft) at normal mode (2K) up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC-HDKat6a cables.
- Lockable EDID.
- Flexible Control Options - Via Kramer Protocol 3000 Ethernet and embedded Web pages over RS-232.
- Digital Audio Format Support.
- Mounting Option - For wall mounting use Kramer's OWB-2G.
|
| Maximum Operating Distance | 590.55 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents | - WP-20 Video Extender Transmitter
- Power Adapter
|
| Product Name | WP-20 Video Extender Transmitter |
| Product Type | Video Extender Transmitter |
