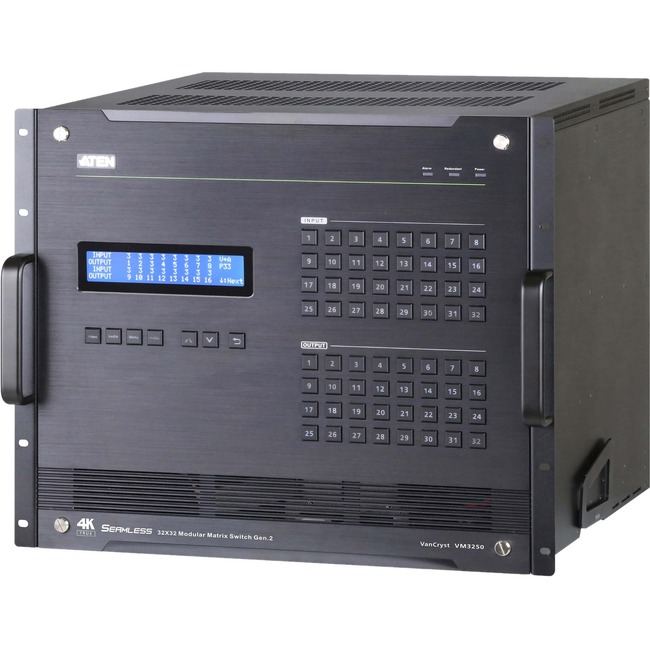

ATEN 32 x 32 Modular Matrix Switch Gen.2

Name: ATEN 32 x 32 Modular Matrix Switch Gen.2
Brand: ATEN Technology, Inc
SKU: 7VZ002
Price: 11473.27 USD

New

ATEN 32 x 32 Modular Matrix Switch Gen.2 - 4096 x 2160 - 4K - Twisted Pair - 32 x 32 - Display

0 Review(s) Item: VM3250 | By: ATEN | 0 In Stock

Sorry This Product is Currently not Available to Buy.

32 x 32 I/O connections via 8 x 8 I/O slots for modular matrix boards
Multiple Control Methods - system management via front-panel pushbuttons, serial control over RS-232/RS-485/RS-422, and web GUI/Telnet over Ethernet connections
View and control via ATEN Video Matrix Control App in a swift and agile way
True 4K Resolutions - Supports uncompressed video resolutions up to 4096 x 2160 / 3840 x 2160@60Hz (4:4:4)
Scaler - features a video scaling function to convert input resolutions to the optimum display resolutions
Seamless Switch™ - features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions
Video Wall - allows you to create custom video wall layouts via intuitive web GUI
Live Streaming - supports single source live streaming via web GUI for convenient evaluation of display output
Content and Layout Preview - displays thumbnails of so

More Details

Sorry This Product is Currently not Available to Buy.

Brand Name	ATEN
Brand Name	ATEN
Connectivity technology	Cable
Connectivity technology	Cable
Depth	18.6"
Depth	18.6"
Device Supported	Display
Device Supported	Display
Environmental Certification	RoHS
Environmental Certification	WEEE
Environmental Certification	RoHS
Environmental Certification	WEEE
Environmentally Friendly	Yes
Environmentally Friendly	Yes
Graphics Modes	4K
Graphics Modes	4K
Height	15.7"
Height	15.7"
Limited Warranty	3 Year
Limited Warranty	3 Year
Manufacturer	ATEN Technology Inc
Manufacturer	ATEN Technology Inc
Manufacturer Part Number	VM3250

Manufacturer Part Number	VM3250
Manufacturer Website Address	http://www.aten.com/us/en/
Manufacturer Website Address	http://www.aten.com/us/en/
Marketing Information	The VM3250 Modular Matrix Switch Gen. 2 offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3250 allows users to independently switch and route video and/or audio content directly to various monitors displays projectors and/or speakers from the front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless real-time switching. The front panel LCD shows a quick view of active port connections. The switch also includes an option to select an EDID Mode that yields the best resolution across different monitors. Boasting a sophisticated and reliable design that delivers the best audio/visual distribution and control the solution also incorporates an Award-winning GUI that can be accessed from anywhere over a network or the internet. Through the intuitive web interface video sources can be previewed in real-time via live streaming and video walls can be easily set up. A calendar-based scheduling function allows you to queue and play connection profiles via a calendar view for a set period of time reducing related operation costs. The VM3250 is easily expandable and accommodates a lineup of hot-swappable ATEN I/O boards. Equipped with automatic signal conversion it allows various combinations of digital and analog video interfaces including Fiber Optic HDBaseT DisplayPort HDMI DVI 3G-SDI and VGA. The flexibility and expandability make it ideal for large-scale A/V applications such as broadcasting stations traffic and transportation-related control rooms emergency service centers and any application that requires customizable high-speed A/V signal routing.
Marketing Information	The VM3250 Modular Matrix Switch Gen. 2 offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3250 allows users to independently switch and route video and/or audio content directly to various monitors displays projectors and/or speakers from the front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless real-time switching. The front panel LCD shows a quick view of active port connections. The switch also includes an option to select an EDID Mode that yields the best resolution across different monitors. Boasting a sophisticated and reliable design that delivers the best audio/visual distribution and control the solution also incorporates an Award-winning GUI that can be accessed from anywhere over a network or the internet. Through the intuitive web interface video sources can be previewed in real-time via live streaming and video walls can be easily set up. A calendar-based scheduling function allows you to queue and play connection profiles via a calendar view for a set period of time reducing related operation costs. The VM3250 is easily expandable and accommodates a lineup of hot-swappable ATEN I/O boards. Equipped with automatic signal conversion it allows various combinations of digital and analog video interfaces including Fiber Optic HDBaseT DisplayPort HDMI DVI 3G-SDI and VGA. The flexibility and expandability make it ideal for large-scale A/V applications such as broadcasting stations traffic and transportation-related control rooms emergency service centers and any application that requires customizable high-speed A/V signal routing.
Maximum Video Resolution	4096 x 2160
Maximum Video Resolution	4096 x 2160
Media Type Supported	Twisted Pair
Media Type Supported	Twisted Pair
Number of Displays Supported	32
Number of Displays Supported	32
Package Contents	32 x 32 Modular Matrix Switch Gen.2 1 x Power Module 1 x Terminal Block Connector 1 x Power Cord 1 x User Instructions
Package Contents	32 x 32 Modular Matrix Switch Gen.2 1 x Power Module 1 x Terminal Block Connector 1 x Power Cord 1 x User Instructions
Packaged Quantity	1
Packaged Quantity	1
Product Name	32 x 32 Modular Matrix Switch Gen.2
Product Name	32 x 32 Modular Matrix Switch Gen.2
Product Type	Audio/Video Switchbox
Product Type	Audio/Video Switchbox
UPC Alternates	672792011344
Weight (Approximate)	40.12 lb
Weight (Approximate)	40.12 lb
Width	19"
Width	19"
