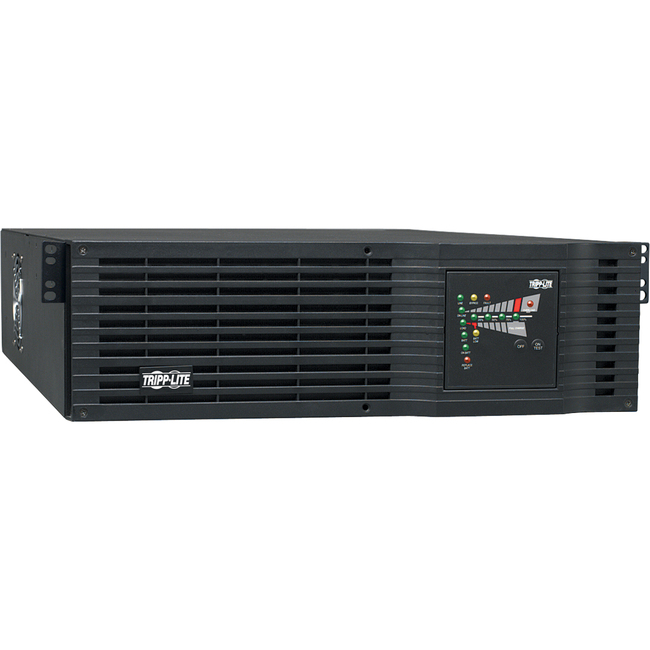

Tripp Lite UPS Smart Online 3000VA 2400W Rackmount 208V / 240V DB9 Preinstalled WEBCARDLX 3URM - 3000 VA/2400 W - 5 Minute Stand-by Time - 3U Tower/Rack Mountable - 4 x NEMA 5-15R, 4 x NEMA 5-15/20R, 1 x NEMA L5-30R - Over Voltage, Under Voltage, Brownout, EMI / RFI
3000 VA/2400 W - 5 Minute Stand-by Time - 3U Tower/Rack Mountable - 4 x NEMA 5-15R, 4 x NEMA 5-15/20R, 1 x NEMA L5-30R - Over Voltage, Under Voltage, Brownout, EMI / RFI
| Bypass Switch | Automatic |
| Bypass Switch | Automatic |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (W) | 2400 W |
| Load Capacity (W) | 2400 W |
| Receptacle Detail | 4 x NEMA 5-15/20R |
| Receptacle Detail | 1 x NEMA L5-30R |
| Receptacle Detail | 1 x NEMA L5-30R |
| Receptacle Detail | 4 x NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15/20R |
| Waveform Type | Sine Wave |
| Waveform Type | Sine Wave |
| Waveform Type | Pure Sine Wave |
| Waveform Type | Pure Sine Wave |
| Alarm | UPS StartUp |
| Alarm | Low Battery |
| Alarm | UPS Fault |
| Alarm | UPS StartUp |
| Alarm | Power Failure |
| Alarm | Low Battery |
| Alarm | Remote Shutdown |
| Alarm | Overload |
| Alarm | UPS Fault |
| Alarm | Remote Shutdown |
| Alarm | Overload |
| Alarm | Power Failure |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 14 Minute |
| Backup/Run Time (Half Load) | 14 Minute |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Certifications & Standards | - UL1778 (USA)
- CSA (Canada)
- NOM (Mexico)
- FCC Part 15 Category A (EMI)
|
| Certifications & Standards | - UL1778 (USA)
- CSA (Canada)
- NOM (Mexico)
- FCC Part 15 Category A (EMI)
|
| Circuit Breaker | Yes |
| Circuit Breaker | Yes |
| Cord Length | 10 ft |
| Cord Length | 10 ft |
| Country of origin | China |
| Country of origin | China |
| Dataline Protection | RJ-11 |
| Dataline Protection | RJ-11 |
| Dataline Protection | RJ-45 |
| Dataline Protection | RJ-45 |
| Depth | 26" |
| Depth | 26" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Form factor | Rack/Tower |
| Form factor | Rack/Tower |
| Height | 5.2" |
| Height | 5.2" |
| Input current | 24 A |
| Input current | 24 A |
| Input voltage | 120 V AC |
| Input voltage | 120 V AC |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Load Capacity | 3000 VA/2400 W |
| Load Capacity | 3000 VA/2400 W |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SU3000RTXL3UN |
| Manufacturer Part Number | SU3000RTXL3UN |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The SU3000RTXL3UN SmartOnline® 120V 3kVA 2.4kW On-Line Double-Conversion UPS provides the highest level of battery backup and AC power protection for critical server network and telecom equipment. It converts AC input to DC power and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes and zero transfer time to battery.
Operating with a high 94% efficiency in optional economy mode the SU3000RTXL2U cuts BTU heat output power consumption and energy costs. Featuring four NEMA 5-15/20R and four 5-15R outlets in two switchable breakered load banks as well as one non-breakered L5-30R outlet the SU3000RTXL3UN has an internal battery that provides 14 minutes of support at half load and 5 minutes at full load. Adding optional external battery packs such as Tripp Lite's BP72V15-2U (sold separately) provides extended runtime.
The pre-installed Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring configuration control and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP. |
| Marketing Information | The SU3000RTXL3UN SmartOnline® 120V 3kVA 2.4kW On-Line Double-Conversion UPS provides the highest level of battery backup and AC power protection for critical server network and telecom equipment. It converts AC input to DC power and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes and zero transfer time to battery.
Operating with a high 94% efficiency in optional economy mode the SU3000RTXL2U cuts BTU heat output power consumption and energy costs. Featuring four NEMA 5-15/20R and four 5-15R outlets in two switchable breakered load banks as well as one non-breakered L5-30R outlet the SU3000RTXL3UN has an internal battery that provides 14 minutes of support at half load and 5 minutes at full load. Adding optional external battery packs such as Tripp Lite's BP72V15-2U (sold separately) provides extended runtime.
The pre-installed Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring configuration control and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP. |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Network Management | SNMP Manageable |
| Network Management | SNMP Manageable |
| Package Contents | - SU3000RTXL3UN US with Pre-installed WEBCARDLX
- Poweralert Software and Cabling
- Mounting Hardware For 4 Post Rack Enclosures
- Instruction Manual
|
| Package Contents | - SU3000RTXL3UN US with Pre-installed WEBCARDLX
- Poweralert Software and Cabling
- Mounting Hardware For 4 Post Rack Enclosures
- Instruction Manual
|
| Plug/Connector Type | NEMA L5-30P |
| Plug/Connector Type | NEMA L5-30P |
| Product Line | SmartOnline |
| Product Line | SmartOnline |
| Product Name | SU3000RTXL3UN US with Pre-installed WEBCARDLX |
| Product Name | SU3000RTXL3UN US with Pre-installed WEBCARDLX |
| Product Type | Dual Conversion Online UPS |
| Product Type | Dual Conversion Online UPS |
| Product Type | Double Conversion Online UPS |
| Protection Type | Brownout |
| Protection Type | Brownout |
| Protection Type | Under Voltage |
| Protection Type | Over Voltage |
| Protection Type | Under Voltage |
| Protection Type | Over Voltage |
| Protection Type | EMI / RFI |
| Protection Type | EMI / RFI |
| Rack Height | 3U |
| Rack Height | 3U |
| Receptacle Type | NEMA L5-30R |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Type | NEMA 5-15R |
| Receptacle Type | NEMA L5-30R |
