| Cache Memory | 4 GB |
| Cache Memory | 4 GB |
| Data Backup Type | Flash Backed Cache |
| Data Backup Type | Flash Backed Cache |
| SAS Connector Details | Two x8 SFF-8654 |
| SAS Connector Details | Two x8 SFF-8654 |
| Total Number of SAS Ports | 16 |
| Total Number of SAS Ports | 16 |
| Brand Name | Lenovo |
| Brand Name | Lenovo |
| Controller Type | 12Gb/s SAS |
| Controller Type | 12Gb/s SAS |
| Device Supported | Server |
| Device Supported | Server |
| Form factor | Plug-in Card |
| Form factor | Plug-in Card |
| Host interface | PCI Express 4.0 x8 |
| Host interface | PCI Express 4.0 x8 |
| Manufacturer | Lenovo Group Limited |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 4Y37A78600 |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Marketing Information | The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) server adapters for connectivity to drives internal to the server. These adapters support RAID levels 0 1 10 5 50 6 and 60 and include an extensive list of RAS and management features. |
| Marketing Information | The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) server adapters for connectivity to drives internal to the server. These adapters support RAID levels 0 1 10 5 50 6 and 60 and include an extensive list of RAS and management features. |
| Operating System Supported | Windows Server 2022 |
| Operating System Supported | VMware ESXi 7.0 U2 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP1 |
| Operating System Supported | Windows Server 2019 |
| Operating System Supported | VMware ESXi 7.0 U1 |
| Operating System Supported | VMware ESXi 6.7 U1 |
| Operating System Supported | Ubuntu 20.04 LTS |
| Operating System Supported | VMware ESXi 6.7 U2 |
| Operating System Supported | Ubuntu 18.04 LTS |
| Operating System Supported | SuSE Linux Enterprise Server 15 |
| Operating System Supported | Red Hat Enterprise Linux 8.5 |
| Operating System Supported | Red Hat Enterprise Linux 8.3 |
| Operating System Supported | VMware ESXi 7.0 U3 |
| Operating System Supported | SUSE Linux Enterprise Server 12 SP3 |
| Operating System Supported | Red Hat Enterprise Linux 7.9 |
| Operating System Supported | Red Hat Enterprise Linux 7.6 |
| Operating System Supported | Red Hat Enterprise Linux 7.7 |
| Operating System Supported | Red Hat Enterprise Linux 8.2 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP2 |
| Operating System Supported | Windows Server 2016 |
| Operating System Supported | VMware ESXi 6.7 U3 |
| Operating System Supported | Red Hat Enterprise Linux 8.2 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP2 |
| Operating System Supported | Windows Server 2016 |
| Operating System Supported | Red Hat Enterprise Linux 8.1 |
| Operating System Supported | VMware ESXi 6.7 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP3 |
| Operating System Supported | SUSE Linux Enterprise Server 12 SP5 |
| Operating System Supported | Red Hat Enterprise Linux 8.4 |
| Operating System Supported | Red Hat Enterprise Linux 8 |
| Operating System Supported | VMware ESXi 7.0 U2 |
| Operating System Supported | VMware ESXi 6.7 U2 |
| Operating System Supported | Ubuntu 18.04 LTS |
| Operating System Supported | SuSE Linux Enterprise Server 15 |
| Operating System Supported | Red Hat Enterprise Linux 8.5 |
| Operating System Supported | Red Hat Enterprise Linux 8.3 |
| Operating System Supported | Windows Server 2022 |
| Operating System Supported | Red Hat Enterprise Linux 7.6 |
| Operating System Supported | Red Hat Enterprise Linux 7.9 |
| Operating System Supported | SUSE Linux Enterprise Server 12 SP3 |
| Operating System Supported | Ubuntu 20.04 LTS |
| Operating System Supported | VMware ESXi 6.7 U1 |
| Operating System Supported | VMware ESXi 7.0 U1 |
| Operating System Supported | Windows Server 2019 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP1 |
| Operating System Supported | Red Hat Enterprise Linux 7.8 |
| Operating System Supported | SUSE Linux Enterprise Server 12 SP4 |
| Operating System Supported | VMware ESXi 6.7 U3 |
| Operating System Supported | Red Hat Enterprise Linux 8.1 |
| Operating System Supported | VMware ESXi 6.7 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP3 |
| Operating System Supported | SUSE Linux Enterprise Server 12 SP5 |
| Operating System Supported | Red Hat Enterprise Linux 8.4 |
| Operating System Supported | Red Hat Enterprise Linux 8 |
| Operating System Supported | SUSE Linux Enterprise Server 12 SP4 |
| Operating System Supported | Red Hat Enterprise Linux 7.8 |
| Operating System Supported | VMware ESXi 7.0 U3 |
| Operating System Supported | Red Hat Enterprise Linux 7.7 |
| Platform Supported | PC |
| Platform Supported | PC |
| Product Model | RAID 940-16i |
| Product Model | RAID 940-16i |

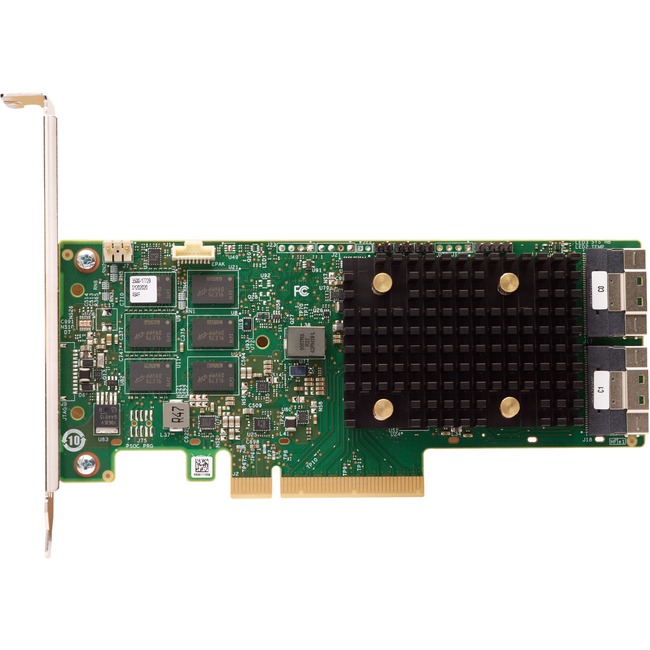

| Product Name | ThinkSystem RAID 940-16i 4GB Flash PCIe Gen4 12Gb Adapter |
| Product Name | ThinkSystem RAID 940-16i 4GB Flash PCIe Gen4 12Gb Adapter |
| Product Type | SAS Controller |
| Product Type | SAS Controller |
| RAID Levels | 50 |
| RAID Levels | 60 |
| RAID Levels | 10 |
| RAID Levels | 6 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| RAID Levels | 0 |
