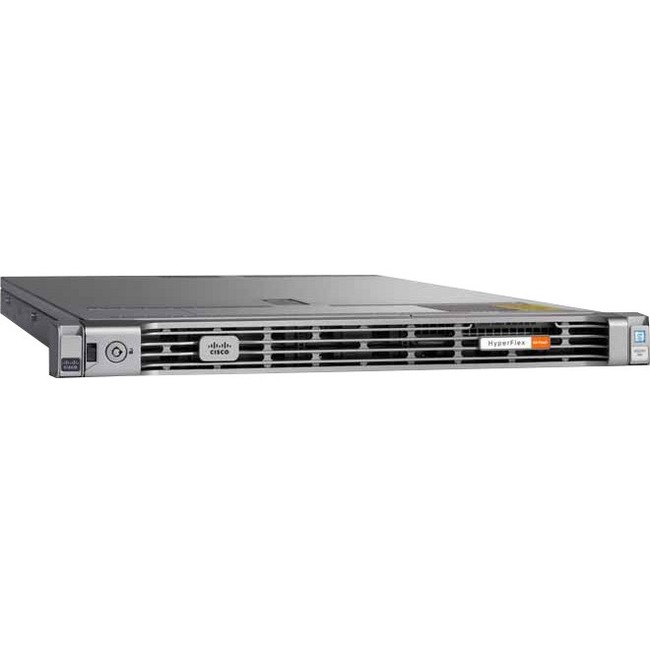

Cisco HyperFlex HX220c M6 Barebone System - 1U Rack-mountable - 2 x Processor Support - Intel C621A Chip - 4 TB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 32 Total Memory Slots - 12Gb/s SAS Controller - Matrox G200e 8 MB Graphic(s) - 10 2.5" Bay(s) - Processor Support (Xeon) - Gigabit Ethernet - Intel Optane Memory Ready - 2 USB 3.0 Port(s) - 3 Year
Intel C621A Chip - 4 TB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 32 Total Memory Slots - 12Gb/s SAS Controller - Matrox G200e 8 MB Graphic(s) - 10 2.5" Bay(s) - Processor Support (Xeon) - Gigabit Ethernet - Intel Optane Memory Ready - 2 USB 3.0 Port(s) - 3 Year
| Chipset | Intel C621A |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| Intel Optane Memory Ready | Yes |
| Maximum Memory Supported | 4 TB |
| Memory Standard | DDR4-3200/PC4-25600 |
| Number of Internal 2.5" Bays | 10 |
| Number of Nodes | 1 |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon |
| Additional Warranty Information | - Three-year parts coverage.
- Next business day (NBD) onsite parts replacement eight hours a day five days a week.
- 90-day software warranty on media.
|
| Brand Name | Cisco |
| Controller Type | 12Gb/s SAS |
| Depth | 30" |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Height | 1.7" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | HXAF220C-M6S |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.
The Cisco HyperFlex HX220C M6 All NVMe/All Flash/Hybrid Server Nodes extends the capabilities of Cisco's HyperFlex portfolio in a 1U form factor with the addition of the 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake) 16 DIMM slots per CPU for 3200-MHz DDR4 DIMMs with DIMM capacity points up to 128 GB. The maximum memory capacity for 2 CPUs is listed here: - 4 TB: 32 x 128 GB DDR4 DIMMs or
- 10 TB: 16 x 128 GB DDR4 DIMMs and 16 x 512 GB Intel® Optane™ Persistent Memory Modules (PMem)
|
| Memory Technology | DDR4 SDRAM |
| Number of Total Memory Slots | 32 |
| Product Family | HyperFlex HX220c M6 |
| Product Line | HyperFlex |
| Product Model | HX220c M6 |
| Product Name | HyperFlex HX220c M6 Barebone System |
| Product Type | Barebone System |
| Rack Height | 1U |
| RAID Supported | No |
| Weight (Approximate) | 42.55 lb |
| Width | 18.9" |
