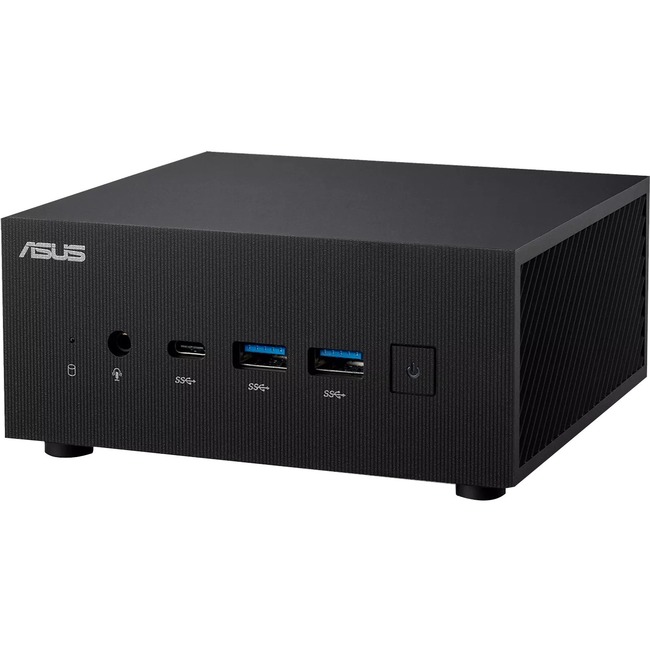

Asus ExpertCenter PN52-BB5000X1TD-NL Barebone System - Mini PC - 1 x Processor Support - AMD Ryzen 5 5600H Hexa-core (6 Core) - AMD Chip - 64 GB DDR4 SDRAM Maximum RAM Support - 2 Total Memory Slots - Serial ATA/600 Controller - AMD Radeon Graphics Graphic(s) - 1 SATA Interface(s) - 2.5 Gigabit Ethernet - Windows 11 Pro, Windows 11 Home Supported Operating System - 4 USB 3.2 Gen 1 Port(s)120 W - 3 Year
AMD Chip - 64 GB DDR4 SDRAM Maximum RAM Support - 2 Total Memory Slots - Serial ATA/600 Controller - AMD Radeon Graphics Graphic(s) - 1 SATA Interface(s) - 2.5 Gigabit Ethernet - Windows 11 Pro, Windows 11 Home Supported Operating System - 4 USB 3.2 Gen 1 Port(s)120 W - 3 Year
| Chipset | AMD |
| Graphics Controller Model | Radeon Graphics |
| Graphics Memory Accessibility | Shared |
| Maximum Memory Supported | 64 GB |
| Maximum Power Supply Wattage | 120 W |
| Number of SATA Interfaces | 1 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Processor Core | Hexa-core (6 Core) |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Types | SSD |
| Supported Storage Drive Types | HDD |
| USB Type-C Detail | 1 x USB 3.2 Gen2 TypeC (w/ DP output & PowerDelivery input) 1 x USB 3.2 Gen1 Type C |
| Brand Name | Asus |
| Controller Type | Serial ATA/600 |
| Country of origin | China |
| Depth | 5.1" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Form factor | Mini PC |
| Height | 2.3" |
| Limited Warranty | 3 Year |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PN52-BB5000X1TD-NL |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | Ultra-compact mini PC with AMD Ryzen™ 5000H series processors and AMD Radeon ™ Graphics supports Quad-4K displays and 8K resolution 2x PCIe® Gen3 x4 M.2 NVMe® SSD 2.5 Gb LAN WiFi 6E - Powered by the latest AMD Ryzen™ 5000H Series Processor with Radeon™ graphics
- Quad-4K displays support and 8K UHD support**
- Support 7 USB ports including 2 x Type C ports and on-board dual HDMI ports
- Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
- Military-grade durability: Adheres to the MIL-810H military standards for outstanding quality and reliability
- Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
- Onboard 2.5GbE LAN delivering faster Ethernet connectivity
- Multi-storage design support up to up to 2x M.2 SSD and 1x HDD
- Integrated Wi-Fi 6E and Bluetooth for easy cordless connections
- Configurable Port supports DP1.4/VGA/2.5G LAN/COM/HDMI options
- 24/7 reliability - Extensively tested to ensure long-term dependability
System & CPU Performance ASUS ExpertCenter PN52 is powered by the latest AMD Ryzen™ 5000H series processor for smooth and powerful multitasking. In PCMark 10 and Cinebench benchmark testing the Ryzen 5000H delivered a 17.4% boost in overall performance and up to 23.4% improvement in singlethread computing performance compared to the previous generation processor. Graphics Performance ASUS ExpertCenter PN52 gets a significant graphical boost with Radeon™ Graphics to deliver crisp clear visuals that are way ahead of its class. It delivers a marked improvement raising its score from 15% in 3DMark Fire Strike to 23.6% in the 3DMark Night Raid performance benchmarks. 4K Resolution & Quad Display Support ASUS ExpertCenter PN52 can support up to four 4K displays via two HDMI® ports DisplayPort™ over USB-C® or other user-configurable ports without any limitation on the combination used. Ultra-realistic 8K Visuals ASUS ExpertCenter PN52 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that's 4X greater than 4K or 16X that of traditional FHD output. USB Power Delivery Input ASUS ExpertCenter PN52 can draw power from any USB Power Delivery-enabled display or device eliminating the need for a separate power adapter to create a neater uncluttered workspace. Easy Upgrades An easy-access underside panel allows users replace and upgrade memory storage and the wireless card. All that's required is a screwdriver. |
| Memory Technology | DDR4 SDRAM |
| Number of Total Memory Slots | 2 |
| Operating System Supported | Windows 11 Pro |
| Operating System Supported | Windows 11 Home |
| Package Contents | - ExpertCenter PN52-BB5000X1TD-NL Barebone System
- Power Adapter
|
| Package type | Retail |
| Processor model | 5600H |
| Processor Type | Ryzen 5 |
| Product color | Eco Black |
| Product Family | ExpertCenter PN52 |
| Product Line | ExpertCenter |
| Product Name | ExpertCenter PN52-BB5000X1TD-NL Barebone System |
| Product Series | PN52 |
| Product Type | Barebone System |
| Total Number of USB Ports | 7 |
| UPC Alternates | 195553838030 |
| Width | 4.7" |
