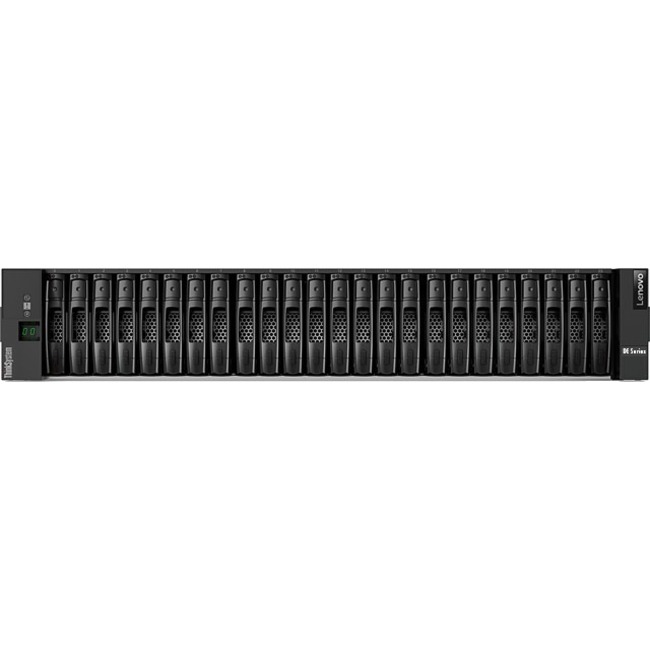

Lenovo ThinkSystem DE6000H SAN Storage System
| $24,050.31 |
- SAN Storage System offers maximum storage productivity with added dependability
- Robust scalability up to 24 drives to let you expand limitlessly
- Through RAID levels (0, 1, 3, 5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable san storage system allows a clutter-free, convenient usage with increased efficiency
- 25 Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
24 x HDD Supported - 24 x SSD Supported - 2 x iSCSI Controller - RAID Supported 0, 1, 3, 5, 6, 10 - 24 x Total Bays - 24 x 2.5" Bay - 25 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - iSCSI, SSH, SMI-S, SNMP, SSL, LDAP - 8 iSCSI Ports - 2U - Rack-mountable
Product Specifications
| Maximum Power Supply Wattage | 913 W |
| Maximum Power Supply Wattage | 913 W |
| Number of Controllers | 2 |
| Number of Controllers | 2 |
| Number of Hard Drives Installed | No |
| Number of Hard Drives Installed | No |
| Number of iSCSI Ports | 8 |
| Number of iSCSI Ports | 8 |
| SSD Cache Capacity | 16 GB |
| SSD Cache Capacity | 16 GB |
| Additional Warranty Information | Three-year Customer-replaceable Unit And Onsite Limited Warranty With 9x5 Next Business Day (Nbd) Parts Delivered. |
| Additional Warranty Information | Three-year Customer-replaceable Unit And Onsite Limited Warranty With 9x5 Next Business Day (Nbd) Parts Delivered. |
| Brand Name | Lenovo |
| Brand Name | Lenovo |
| Depth | 21.8" |
| Depth | 21.8" |
| Environmental Certification | EU RoHS |
| Environmental Certification | EU RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 25 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | 25 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Height | 3.3" |
| Height | 3.3" |
| Host interface | iSCSI |
| Host interface | iSCSI |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | Lenovo Group Limited |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7Y78A00EWW |
| Manufacturer Part Number | 7Y78A00EWW |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Marketing Information | Lenovo ThinkSystem DE6000H is a scalable hybrid mid-range storage system that is designed to provide high performance simplicity capacity security and high availability for medium to large businesses. The ThinkSystem DE6000H delivers enterprise-class storage management capabilities in a performance-optimized system with a wide choice of host connectivity options flexible drive configurations and enhanced data management features. The ThinkSystem DE6000H is a perfect fit for a wide range of enterprise workloads including big data and analytics video surveillance technical computing backup and recovery and other storage I/O-intensive applications. ThinkSystem DE6000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers each with 16 GB or 64 GB system memory for a system total of 32 GB or 128 GB. Host interface cards provide 12 Gb SAS 10/25 Gb iSCSI 8/16/32 Gb FC or NVMe/FC or 25/40/100 Gb NVMe/RoCE host connections. |
| Marketing Information | Lenovo ThinkSystem DE6000H is a scalable hybrid mid-range storage system that is designed to provide high performance simplicity capacity security and high availability for medium to large businesses. The ThinkSystem DE6000H delivers enterprise-class storage management capabilities in a performance-optimized system with a wide choice of host connectivity options flexible drive configurations and enhanced data management features. The ThinkSystem DE6000H is a perfect fit for a wide range of enterprise workloads including big data and analytics video surveillance technical computing backup and recovery and other storage I/O-intensive applications. ThinkSystem DE6000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers each with 16 GB or 64 GB system memory for a system total of 32 GB or 128 GB. Host interface cards provide 12 Gb SAS 10/25 Gb iSCSI 8/16/32 Gb FC or NVMe/FC or 25/40/100 Gb NVMe/RoCE host connections. |
| Number of Total Expansion Bays | 24 |
| Number of Total Expansion Bays | 24 |
| Package Contents |
|
| Package Contents |
|
| Plug/Connector Type | C13 to IEC 320-C14 |
| Plug/Connector Type | C13 to IEC 320-C14 |
| Product Family | ThinkSystem DE |
| Product Family | ThinkSystem DE |
| Product Line | ThinkSystem |
| Product Line | ThinkSystem |
| Product Model | DE6000H |
| Product Model | DE6000H |
| Product Name | ThinkSystem DE6000H SAN Storage System |
| Product Name | ThinkSystem DE6000H SAN Storage System |
| Product Series | DE |
| Product Series | DE |
| Product Type | SAN Storage System |
| Product Type | SAN Storage System |
| Protocols | LDAP |
| Protocols | SNMP |
| Protocols | SSL |
| Protocols | SMI-S |
| Protocols | SSH |
| Protocols | SSL |
| Protocols | SMI-S |
| Protocols | SSH |
| Protocols | LDAP |
| Protocols | SNMP |
| Rack Height | 2U |
| Rack Height | 2U |
| RAID Levels | 0 1 3 5 6 10 |
| RAID Levels | 0 1 3 5 6 10 |
| Weight (Approximate) | 55.27 lb |
| Weight (Approximate) | 55.27 lb |
| Width | 17.7" |
| Width | 17.7" |
