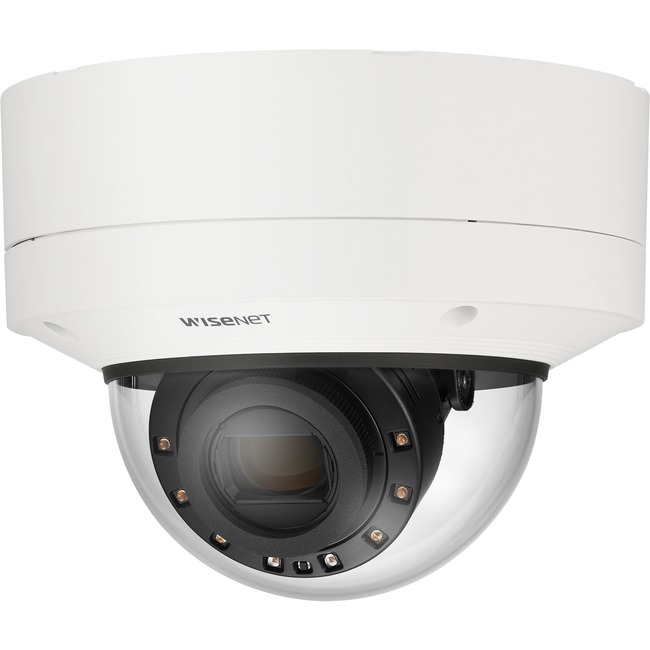

Wisenet XNV-6123R 2 Megapixel Outdoor Full HD Network Camera - Color - Dome - H.264, H.265, MJPEG - 1920 x 1080 - 5.20 mm- 62.40 mm Zoom Lens - 12x Optical - CMOS - Hanging Mount, Gang Box Mount, Conduit Mount - IK10+ - IP66, IP67, IP6K9K - Vandal Resistant
H.264, H.265, MJPEG - 1920 x 1080 - 5.20 mm- 62.40 mm Zoom Lens - 12x Optical - CMOS - Hanging Mount, Gang Box Mount, Conduit Mount - IK10+ - IP66, IP67, IP6K9K - Vandal Resistant
| Analog Video Signal Format | CVBS |
| Field of View | H: 54.58(Wide)~5.30(Tele) V: 32.19(Wide)~3.00(Tele) |
| Impact Protection Rating | IK10+ |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP66 |
| Ingress Protection Rating | IP67 |
| Ingress Protection Rating | IP6K9K |
| Maximum Aperture | f/1.6 |
| Minimum Aperture | f/3 |
| Minimum Focal Length | 5.20 mm |
| Minimum Operating Temperature | -40°F (-40°C) |
| Network (RJ-45) | Yes |
| Operating Humidity | 95% |
| Brand Name | Wisenet |
| Color Supported | Color |
| Connectivity technology | Wired |
| Diameter | 7.1" |
| Durability | Vandal Resistant |
| Effective Camera Resolution | 2 Megapixel |
| Features | Back Light Compensation (BLC) |
| Features | Privacy Masking |
| Features | Automatic White Balance |
| Features | Anti-flicker |
| Features | Digital Noise Reduction |
| Features | Wide Dynamic Range |
| Features | Day/Night |
| Features | Fog Reduction |
| Features | Defog |
| Features | Digital Image Stabilization |
| Form factor | Dome |
| Image Sensor Type | CMOS |
| Input voltage | 12 V DC |
| Lens Type | Zoom |
| Longest Shutter Speed | 2 Second |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNV-6123R |
| Manufacturer Website Address | http://www.hanwha.com |
| Marketing Information | Reducing False alarm based on AI
The new X series cameras utilize AI to detect and classify people vehicles faces license plates and more in real-time. The cameras' deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion like wind-blown trees shadows or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events while making post-event forensic searches highly efficient. AI-based object detection for operational efficiency
Metadata including information (person face vehicle license plate) is sent to the backend server and used to extract information on specific events. Operators are able to search AI events on the backend server. This greatly enhances search efficiency and reduces time spent on searching events. Also it can be reducing false alarm when operators were monitoring scene. Powerful 12x optical zoom Equipped with powerful 12x optical zoom capabilities in real-time using AI-based object detection it can help to provide further enhanced security. In certain preset areas XNO-6123R and XNV-6123R can detect and capture clear images of person face vehicle and license plate by zooming in up to 12x (5.2~62.4mm). With the collaboration of 12x optical zoom and AI it can offer improved security for entering/exit door areas chemical factories or corrections facilities. |
| Maximum Focal Length | 62.40 mm |
| Maximum frame rate | 120 fps |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Video Resolution | 1920 x 1080 |
| Mount Type | Gang Box Mount |
| Mount Type | Hanging Mount |
| Mount Type | Conduit Mount |
| Optical zoom | 12x |
| Power source type | DC |
| Product color | White |
| Product Name | 2MP AI IR Vandal Dome Camera |
| Product Series | X |
| Product Type | Network Camera |
| Recording Formats | Full HD |
| Shortest Shutter Speed | 1/12000 Second |
| Storage Type | Memory Card |
| Video Formats | H.265 |
| Video Formats | MJPEG |
| Video Formats | H.264 |
| Weight (Approximate) | 4.70 lb |
