Black Box DKM Compact KVM Extender - DVI-D, USB HID, Single-Access, CATx - 1 Computer(s) - 1 Local User(s) - 460 ft Range - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 2 x USB - 2 x DVI - 120 V AC, 240 V AC Input Voltage
1 Computer(s) - 1 Local User(s) - 460 ft Range - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 2 x USB - 2 x DVI - 120 V AC, 240 V AC Input Voltage
| Transmitter Depth | 5.60" |
| Transmitter Height | 1.10" |
| Transmitter Weight (Approximate) | 10.58 oz |
| Transmitter Width | 4" |
| Brand Name | Black Box |
| Connectivity technology | Wired |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Input voltage | 240 V AC |
| Input voltage | 120 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACX1K-11-C |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | - Maximum distance over solid CATx is 460 feet (140 m).
- Compact housing enables high-density mounting within 19" racks (up to four devices in 1U).
- Chassis range in size from 2 4 6 or 21 ports to 48 80 160 and 288 ports.
- The compact extenders also work in standalone point-to-point KVM extension without a DKM switch.
- Also available in fiber optic models.
Part of the DKM FX and DKM FX Compact (FXC) HD Video and Peripheral Matrix Switching System the DKM FX Compact Extenders expand the options in an already flexible extension system.DKM FX Compact transmitters and receivers extend DVI-D and USB HID and 2.0 signals. Other models are available for digital audio RS232 serial and fiber.
You can combine extender modules depending your particular needs. These DKM FX components are part of a modular systems. Compact and modular extenders are fully compatible with each other.
Mount the extenders on a tabletop DIN rail or 19-inch rack. Optional wallmount and rackmount kits are available.
|
| Maximum Operating Distance | 460 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Number of Computers Supported | 1 |
| Number of Network (RJ-45) Ports | 2 |

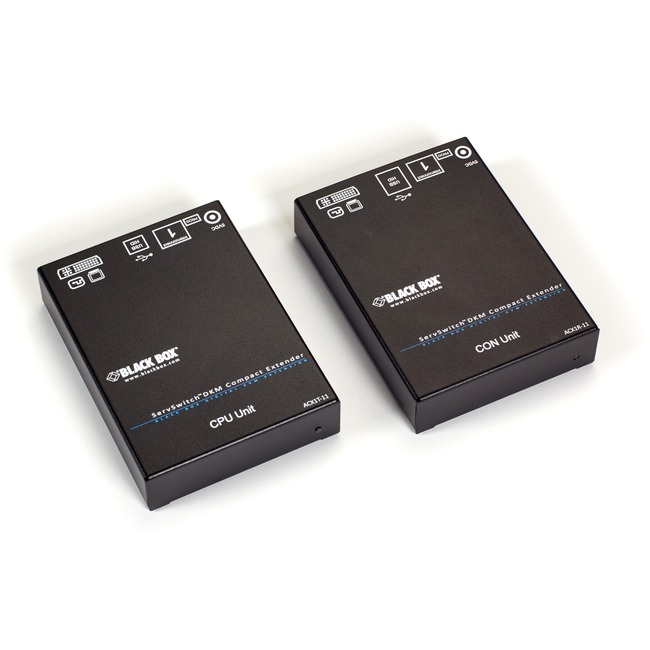

| Package Contents | - 1 x DKM Compact Transmitter
- 1 x DKM Compact Receiver
- 1 x DVI M/M cable
- 1 x USB Type A to B M/M cable
- 2 x Power supplies with power cords
|
| Product Name | DKM Compact KVM Extender - DVI-D USB HID Single-Access CATx |
| Product Series | DKM FX Compact |
| Product Type | KVM Extender |
| UPC Alternates | 822088153306 |
