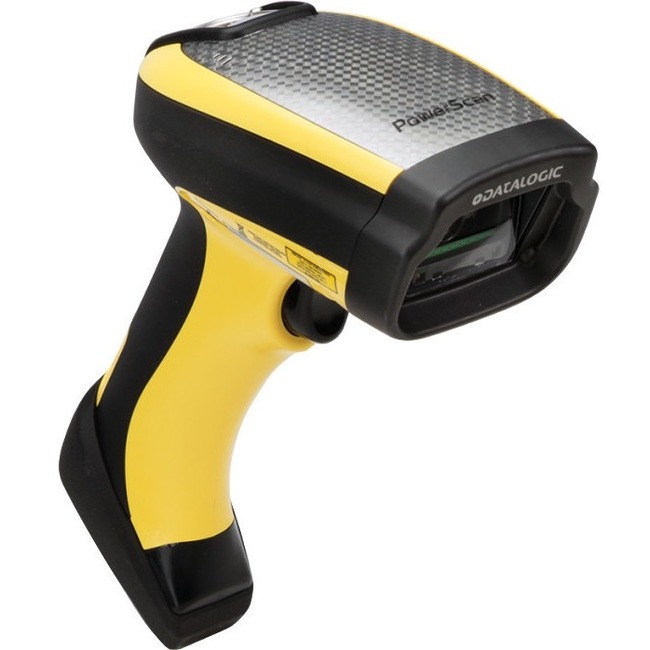

Datalogic PowerScan PD9530-DPM Evo PD9531 Handheld Barcode Scanner Kit - Cable Connectivity - 1D, 2D - Imager - USB - Black, Yellow
Cable Connectivity - 1D, 2D - Imager - USB - Black, Yellow
| Scanning Capability | 1D |
| Scanning Capability | 2D |
| Barcode Symbology Supported | 1D:
- Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D:
- Aztec Code
- China Han Xin Code
- Data Matrix
- MaxiCode
- Micro QR Code
- QR Code
Postal Codes:
- Australian Post
- China Post
- IMB; Japanese Post
- KIX Post
- Planet Code
- Portuguese Post
- Postnet
- Royal Mail Code (RM4SCC)
- Swedish Post
Stacked Codes:
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MacroPDF
- MicroPDF417
- PDF417
- UPC A/E Composites
|
| Brand Name | Datalogic |
| Connectivity technology | Cable |
| Depth | 4.3" |
| Form factor | Handheld |
| Height | 8.3" |
| Host interface | Serial |
| Host interface | USB |
| Host interface | Keyboard Wedge |
| Image Sensor Type | Imager |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PD9531-HPK2 |
| Manufacturer Website Address | http://www.datalogic.com |
| Marketing Information | DPM TECHNOLOGY
Direct Part Marking (DPM) is a process that allows users to imprint a bar code directly on an item instead of printing the code on a paper label. Different technologies are available to directly mark objects: laser/ chemical etching dot peening and ink jet printing. Each of these methods have specific advantages and disadvantages in terms of durability cost and ease of reading.
The PowerScan™ 9500-DPM Evo series of scanners are rugged handheld area imagers specifically addressed and capable of reading codes marked with DPM.
READING CAPABILITIES
The PowerScan DPM series include the latest optics and software from Datalogic to make the reading of codes with DPM easy and intuitive. The typical reading distance is from contact to 4-5 cm / 1.5-1.9 in depending on the DPM technology used the code resolution and the material and surface type. The scanner is also capable of reading standard bar codes on printed labels. High density optics allow the capture of very small high-resolution codes in a range from near contact up to 15.0 cm / 5.9 in. The intuitive aiming system provides the highest first-pass reading rates. A soft pulsed white illumination light results in reduced flashes and is very gentle to the eyes.
FULL CONNECIVITY
The PM9500 DPM Evo series offers the display option with 4 configurable keys. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.
The BC9180 is provided with Standard MultiInterface: USB-KBD USB-COM USB-OEM RS-232 and Ethernet connectivity: Telnet Web Server Data Socket Ethernet/IP.
MOTIONIX™ MOTION-SENSING TECHNOLOGY
Datalogic's Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. |
| Product color | Yellow |
| Product color | Black |
| Product Family | PowerScan PD9530-DPM Evo |
| Product Line | PowerScan |
| Product Model | PD9531 |
| Product Name | PowerScan PD9530-DPM Evo PD9531 Handheld Barcode Scanner Kit |
| Product Series | PD9530-DPM Evo |
| Product Type | Barcode Scanner Kit |
| Weight (Approximate) | 11.64 oz |
| Width | 2.9" |
