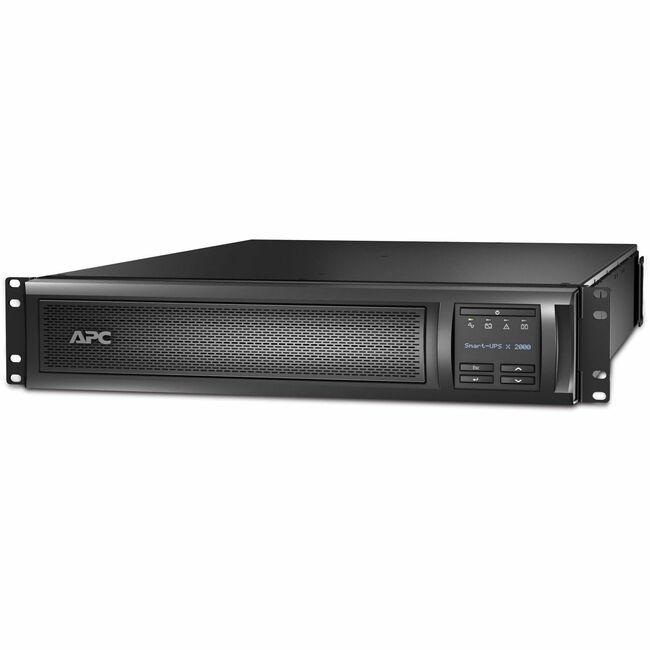

APC by Schneider Electric Smart-UPS X 2000VA Tower/Rack Convertible UPS - 2U Tower/Rack Convertible - 3 Hour Recharge - 120 V AC Input - 120 V AC, 100 V AC, 110 V AC, 127 V AC Output - 3 x NEMA 5-15R, 3 x NEMA 5-20R, 1 x NEMA L5-20R
2U Tower/Rack Convertible - 3 Hour Recharge - 120 V AC Input - 120 V AC, 100 V AC, 110 V AC, 127 V AC Output - 3 x NEMA 5-15R, 3 x NEMA 5-20R, 1 x NEMA L5-20R
| Load Capacity (VA) | 2000 VA |
| Load Capacity (W) | 1800 W |
| Maximum Operating Elevation | 10000 ft |
| Number of Battery & Surge Outlets | 7 |
| Output Frequency | 60 Hz |
| Receptacle Detail | 1 x NEMA L5-20R |
| Receptacle Detail | 3 x NEMA 5-20R |
| Receptacle Detail | 3 x NEMA 5-15R |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Waveform Type | Sine Wave |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Alarm | Configurable Delay |
| Alarm | On Battery |
| Alarm | Low Battery |
| Application/Usage | Switch |
| Application/Usage | Server |
| Application/Usage | Router |
| Application/Usage | POS |
| Application/Usage | Network Device |
| Application/Usage | Hub |
| Battery Chemistry | Lead Acid |
| Battery life | 5 Year |
| Brand Name | APC by Schneider Electric |
| Depth | 26.3" |
| Environmental Certification | WEEE |
| Environmental Certification | EU RoHS |
| Environmentally Friendly | Yes |
| Form factor | Tower/Rack Convertible |
| Height | 3.4" |
| Input voltage | 120 V AC |
| Input Voltage Range | 70 V AC - 153 V AC |
| Input Voltage Range | 75 V AC -154 V AC |
| Limited Warranty | 3 Year |
| Load Capacity | 2000 VA/1800 W |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMX2KR2UX145 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Marketing Information | Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers point-of-sale routers switches hubs and other network devices. Part of Smart-UPS Over 20 million units sold - the UPS you can trust |
| Maximum Operating Temperature | 104°F (40°C) |
| Output voltage | 127 V AC |
| Output voltage | 110 V AC |
| Output voltage | 100 V AC |
| Package Contents | - Smart-UPS X 2000VA Tower/Rack Convertible UPS
- CD With Software
- Documentation CD
- Installation Guide
- Rack Mounting Hardware
- Rack Mounting Brackets
- Rack Mounting Support Rails
- Removable Support Feet
- Smart UPS Signalling RS-232 Cable
- USB Cable
|
| Plug/Connector Type | NEMA 5-20P |
| Product color | Black |
| Product Line | Smart-UPS X |
| Product Name | Smart-UPS X 2000VA Tower/Rack Convertible UPS |
| Product Type | Line-interactive UPS |
| Rack Height | 2U |
| Receptacle Type | NEMA 5-15R |
| Receptacle Type | NEMA 5-20R |
| Receptacle Type | NEMA L5-20R |
| Status Indicators | LED: - On Line
- On Battery
- Replace Battery
- Overload Indicators
|
| Surge energy rating | 540 J |
| Thermal Dissipation | 59.49 W |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 3 Hour |
| UPC Alternates | 731304405269 |
| Weight (Approximate) | 84.59 lb |
| Width | 17" |
