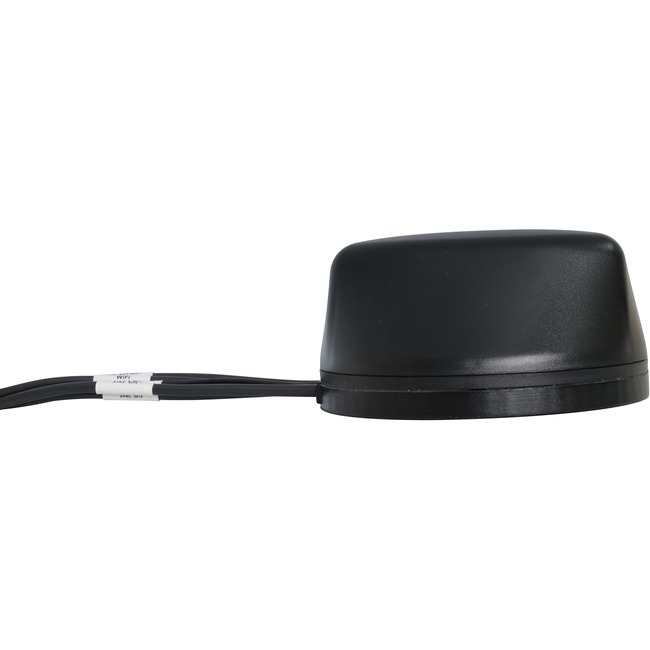

Mobile Mark MLTM502-3C3C3J3J2C-BLK-180 Antenna - 1575.42 MHz, 4.9 GHz to 6.0 GHz, 2.4 GHz to 2.5 GHz, 1710 MHz to 3700 MHz, 694 MHz to 960 MHz - 26 dB - Cellular Network, GPS, Wireless Data Network - Black - Magnetic Mount - SMA, RP-SMA Connector
1575.42 MHz, 4.9 GHz to 6.0 GHz, 2.4 GHz to 2.5 GHz, 1710 MHz to 3700 MHz, 694 MHz to 960 MHz - 26 dB - Cellular Network, GPS, Wireless Data Network - Black - Magnetic Mount - SMA, RP-SMA Connector
| Antenna Gain | 26 dB |
| Operating Frequency Range | 1575.42 MHz |
| Operating Frequency Range | 4.9 GHz to 6.0 GHz |
| Operating Frequency Range | 2.4 GHz to 2.5 GHz |
| Operating Frequency Range | 694 MHz to 960 MHz |
| Operating Frequency Range | 1710 MHz to 3700 MHz |
| Application/Usage | GPS |
| Application/Usage | Cellular Network |
| Application/Usage | Wireless Data Network |
| Brand Name | Mobile Mark |
| Connector Type | RP-SMA |
| Connector Type | SMA |
| Diameter | 5.50" |
| Form factor | Magnetic Mount |
| Height | 2.78" |
| Limited Warranty | 2 Year |
| Manufacturer | Mobile Mark Inc |
| Manufacturer Part Number | MLTM502-3C3C3J3J2C-BLK-180 |
| Manufacturer Website Address | http://www.mobilemark.com |
| Marketing Information | Mobile Mark's LTM502 Series Multiband Diversity/MIMO antenna
contains five separate antennas all in one compact antenna housing:
two broadband LTE/Cellular antennas two dual-band WiFi antennas
and one GPS antenna. The LTM502 differs from the LTM501 in
that the broadband LTE/Cellular element covers all LTE frequencies
worldwide from 694-3700 MHz.
Both WiFi and LTE MIMO (multiple-input-multiple-output) modems
offer greater speed and capacity than earlier generations of modems.
To ensure optimum performance the systems need multiple antennas
on both the transmission and receive ends.
With 5-elements the new LTM502 antenna is ideal for fleet management
systems that combine GPS with both any Global LTE MIMO
modem as well as WiFi MIMO modem.
Measuring 5.5" (140mm) in diameter with a low profile of 2.38" the
LTM series antennas take up significantly less space than multiple
antennas and cut down on installation time and costs by offering a
single mounting hole. The antennas are available in either surfacemount
or mag-mount and can also be configured for combined GPS
& Glonass use. |
| Packaged Quantity | 1 |
| Product color | Black |
| Product Name | MLTM502-3C3C3J3J2C-BLK-180 Antenna |
| Product Series | LTM502 |
| Product Type | Antenna |
