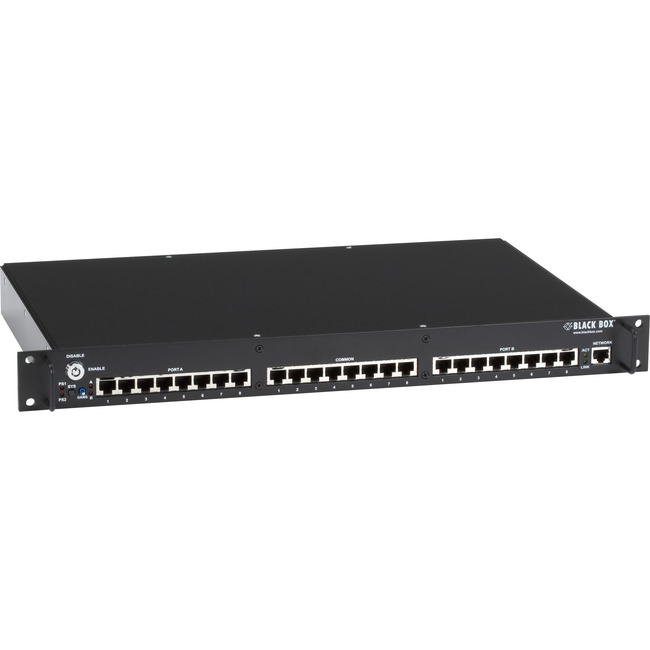

Black Box Rackmount Gang Switch - 19" , 1U, (8) RJ-45 A/B (All Pins) - 8 Ports - Manageable - TAA Compliant - 2 Layer Supported - Twisted Pair - 1U High - Rack-mountable - 1 Year Limited Warranty
8 Ports - Manageable - TAA Compliant - 2 Layer Supported - Twisted Pair - 1U High - Rack-mountable - 1 Year Limited Warranty
| Compatible Rack Unit | 1U |
| Total Number of Network Ports | 8 |
| Brand Name | Black Box |
| Country of origin | United States |
| Depth | 10.5" |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Frequency | 60 Hz |
| Height | 1.8" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Layer Supported | 2 |
| Limited Warranty | 1 Year |
| Manageable | Yes |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | NBSALL8 |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | - Enables individual or simultaneous (ganged) control of circuits.
- Switch manually or electronically using a local RS-232 serial console.
- Lockable switch with removable key for securing gang switching control.
- Supports connections to Gigabit Ethernet segments.
- Features highly reliable internal telecommunications relays.
- Transparent to data rates protocols formats and signal levels.
- Compact 1U-high rack-mountable chassis.
- Includes dual power inputs for redundancy.
- Daisychain multiple units for up to 4080 ports or 255 chassis.
Use this Layer 1 switching system to add network backup and failover switching to your data networks. It's ideal for mission-critical applications including classified information and military systems broadcast networks and stock exchanges.
With the Pro Switching System 1U NBS it's very simple to switch all users from the main network to a backup network at the chassis itself using a momentary toggle switch on the front or via a serial RS-232 workstation.
This model switches all eight leads on the RJ-45 ports. It's designed for use in 10BASE-T/100BASE-TX/1000BASE-TX Ethernet networks for switching RS-232 circuits that use both data and hardware handshake leads or any application that requires the use of more than four leads. (We also offer models that switch just Pins 1/2 and 3/6 of the RJ-45 connectors.)
Each switching circuit has a common (C) port that's latched to its associated A or B port which means it passes signals even if the chassis is without AC power. Because its relays are physically latched into position once a position is set it stays set. The switch circuit is as reliable as the CATx cables connected to it.
A key-lockable switch secures the gang switching function. With the key-lock switch in the enabled position all ports in the Pro Switching System 1U NBS can be simultaneously switched by pressing the momentary toggle switch on the chassis' front.
Port settings are also software controllable so you can toggle a connected device from the A to the B position from a workstation. You not only have reliable network paths but you can automate switching to control individual settings.
Need to add ports later? Simply daisy-chain multiple Pro Switching System 1U NBS chassis together - up to 255 in all - and control them as a single system.
|
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 1 x Fast Ethernet Network |
| Power source | Power Supply |
| Product Name | Rackmount Gang Switch - 19" 1U (8) RJ-45 A/B (All Pins) |
| Product Type | Ethernet Switch |
| UPC Alternates | 822088112181 |
| Weight (Approximate) | 5 lb |
| Width | 17.3" |
