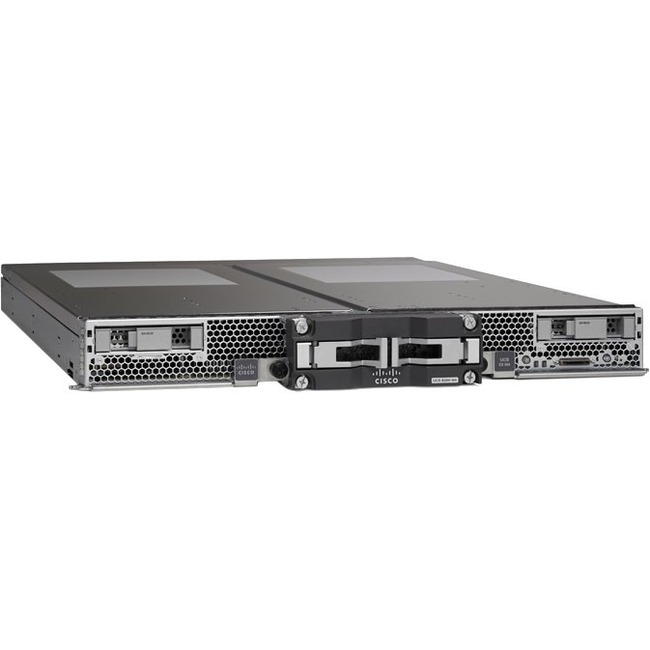

Cisco Barebone System - Blade - Socket R LGA-2011 - 2 x Processor Support - 3 TB DDR3 SDRAM Maximum RAM Support - 48 Total Memory Slots - 12Gb/s SAS RAID Supported Controller - Network (RJ-45) - Processor Support (Xeon)
3 TB DDR3 SDRAM Maximum RAM Support - 48 Total Memory Slots - 12Gb/s SAS RAID Supported Controller - Network (RJ-45) - Processor Support (Xeon)
| Maximum Memory Supported | 3 TB |
| Memory Card Reader | Yes |
| Number of Processors Supported | 2 |
| Number of Total Expansion Slots | 3 |
| Processor Socket | Socket R LGA-2011 |
| Processor Supported | Xeon |
| Processor Technology | Trusted Execution Technology |
| Processor Technology | Enhanced SpeedStep Technology |
| Processor Technology | Hyper-Threading Technology |
| Processor Technology | Virtualization Technology |
| QuickPath Interconnect | 8 GT/s |
| Brand Name | Cisco |
| Certifications & Standards | Regulatory Compliance: - Products should comply with CE Markings according to directives 2004/108/EC and 2006/108/EC
Safety: - UL 60950-1 No. 21CFR1040 Second Edition
- CAN/CSA-C22.2 No. 60950-1 Second Edition
- IEC 60950-1 Second Edition
- EN 60950-1 Second Edition
- IEC 60950-1 Second Edition
- AS/NZS 60950-1
- GB4943 2001
EMC: Emissions: - 47CFR Part 15 (CFR 47) Class A
- AS/NZS CISPR22 Class A
- CISPR2 2 Class A
- EN55022 Class A
- ICES003 Class A
- VCCI Class A
- EN61000-3-2
- EN61000-3-3
- KN22 Class A
- CNS13438 Class A
EMC: Immunity: - EN55024
- CISPR24
- EN300386
- KN24
|
| Controller Type | 12Gb/s SAS |
| Ethernet Technology | Ethernet |
| Form factor | Blade |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | UCSB-EX-M4-1C-U |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | The Cisco Unified Computing System™ (Cisco UCS®) combines Cisco UCS B-Series Blade Servers and C-Series Rack Servers with networking and storage access into a single converged system that greatly simplifies server management and delivers greater cost efficiency and agility with increased visibility and control. Cisco UCS automates all aspects of server deployment and provisioning through model-based service profiles: software objects that contain all attributes necessary to provision servers. |
| Memory Technology | DDR3 SDRAM |
| Number of Total Memory Slots | 48 |
| Product Name | B260 M4 Barebone System |
| Product Series | B260 M4 |
| Product Type | Barebone System |
| RAID Levels | 0 1 |
