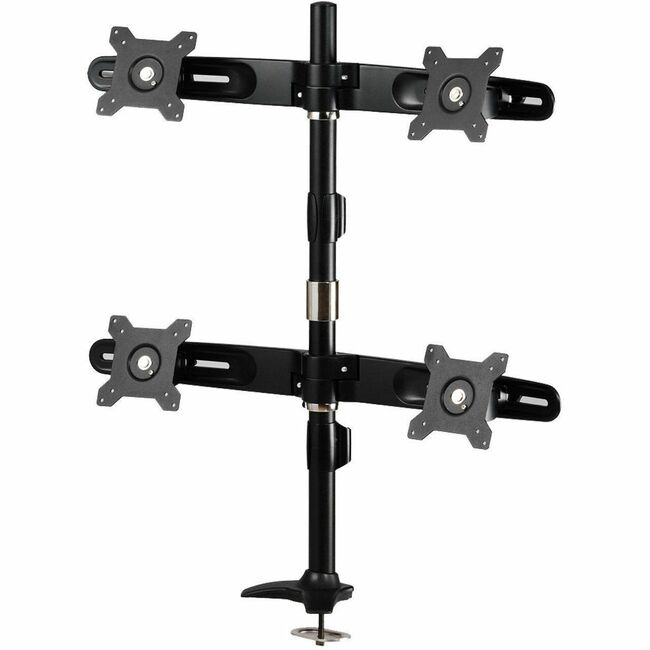

Amer Mounts Grommet Based Quad Monitor Mount for four 15"-24" LCD/LED Flat Panel Screens - Supports up to 17.6lb monitors, +/- 20 degree tilt, and VESA 75/100
Supports up to 17.6lb monitors, +/- 20 degree tilt, and VESA 75/100
Product Material | Plastic |
Product Material | Aluminum Alloy |
Product Material | Steel |
VESA Mount Standard | 75 x 75 |
VESA Mount Standard | 100 x 100 |
Additional Information | - Tilt: Max. + / -20° (For each "Hinge")
- Swivel: Max. +/-20° (For each "Hinge")
- Rotate(Pivot): 360°
- Screw Type: M4
- Easy Install
|
Adjustable Height | Yes |
Brand Name | Amer Mounts |
Compatibility | 4 x LCD Monitor |
Country of origin | Taiwan |
Device Supported | Flat Panel Display |
Features | Smart Torque Adjustment |
Features | Pivot |
Features | Tilt |
Features | Swivel |
Features | Rotate |
Features | Cable Management |
Height | 29.7" |
Length | 28.2" |
Limited Warranty | 3 Year |
Manufacturer | Amer Networks Inc |
Manufacturer Part Number | AMR4P |
Manufacturer Website Address | http://www.amermounts.com |
Marketing Information | This incredibly versatile product supports up to four 24" monitors each with a maximum individual weight of 17.6 lbs. Not only will this strong and sturdy mount have no trouble holding VESA certified 75x75 or 100x100 monitors (fitting the above criteria) it is also extremely adjustable! - Each monitor can be placed at a different height to accommodate different sized monitors
- All four monitors have 360º rotation (meaning landscape portrait or anything in-between)
- Also included is a +/- 20º tilt in any direction Individually for ALL 4 Monitors ensuring maximum user comfort
- Height adjustable with a maximum height of approximately 27" from the desk to the center of the highest mounting device
Benefits of Grommet Mounting: This type of mount takes the best of both clamp and stand style mounting filling in the holes on your desk and clamping onto the bottom for a secure mount. - Takes up less desk space than the stand style mount
- Incorporates the sturdiness of the clamp mount without the overhang off the desk
|
Maximum Adjustable Height | 27" |
Maximum Load Capacity | 70.40 lb |
Maximum Screen Size Supported | 24" |
Product color | Black |
Product Name | Grommet Based Quad Monitor Mount. Up to 24" 17.6lb monitors |
Product Type | Desk Mount |
UPC Alternates | 650177199085 818242764716 |
Weight (Approximate) | 12.63 lb |
Width | 5.7" |
