| Brand Name | Gefen |
| Connectivity technology | Cable |
| Depth | 1" |
| Device Supported | TV |
| Form factor | Surface-mountable |
| Height | 5.8" |
| Input voltage | 5 V DC |
| Manufacturer | Gefen Inc |
| Manufacturer Part Number | GTB-HD4K2K-441-BLK |
| Manufacturer Website Address | http://www.gefen.com |
| Marketing Information | Switch four Hi-Def sources to one Ultra HD display with 3DTV and 4K x 2K Ultra High-Definition support The GefenToolBox 4x1 Switcher for HDMI 4Kx2K is a compact and lightweight alternative to rack-mounted matrixes. It allows up to four Ultra High Definition 4K x 2K or Full HD 1080p sources to be routed to one Ultra HD display. This product supports resolutions up to 3840 x 2160 (4K x 2K). HDCP Deep Color 3DTV pass-through and lossless audio formats such as LPCM 7.1 Dolby® TrueHD and DTS-HD® Master Audio™ are also supported. Each Hi-Def source can be switched to the display using the front panel push-button controls the included IR remote RS-232 serial control interface or through IP using Telnet UDP and the built-in web server interface. LED indicators on the top panel display the current switching status. |
| Maximum Video Bandwidth | 300 MHz |
| Maximum Video Resolution | 3840 × 2160 |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 4 |
| Number of USB Ports | 1 |
| Package Contents |
|
| Power consumption | 13 W |
| Product color | Black |
| Product Line | GefenToolBox |

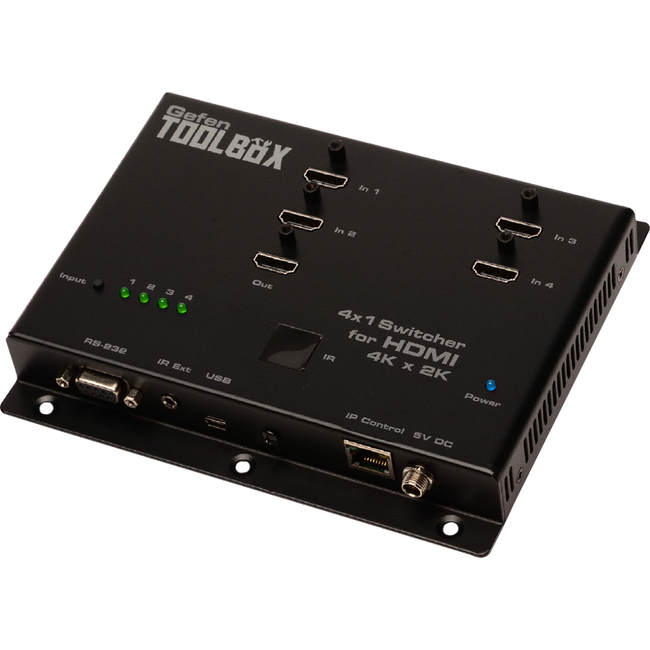

| Product Name | 4x1 Switcher for HDMI with Ultra HD 4K x 2K Support |
| Product Type | Audio/Video Switchbox |
| Scan Format | 1080i |
| UPC Alternates | 012300176965 097561722762 845344075280 |
| USB | Yes |
| Width | 6.9" |
