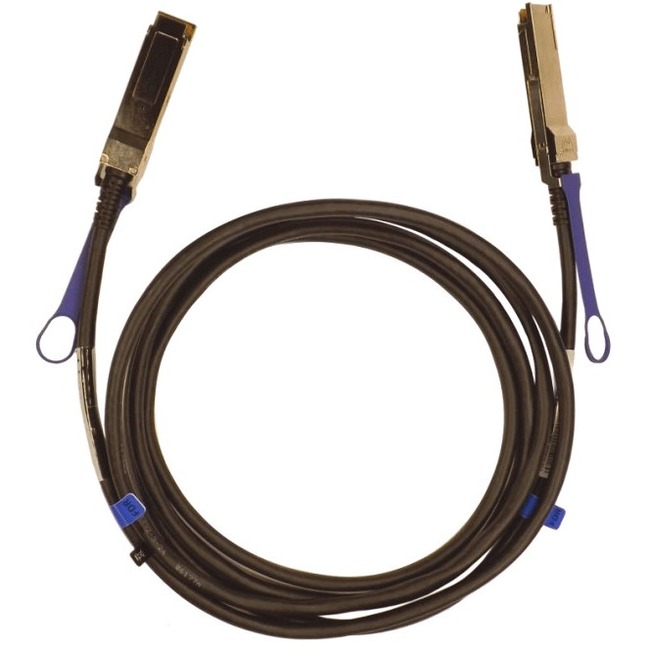

Mellanox LinkX Twinaxial Network Cable - 9.84 ft Twinaxial Network Cable for Network Device - First End: 1 x QSFP Network - Second End: 1 x QSFP Network - 40 Gbit/s - 28 AWG - Black
9.84 ft Twinaxial Network Cable for Network Device - First End: 1 x QSFP Network - Second End: 1 x QSFP Network - 40 Gbit/s - 28 AWG - Black
| American Wire Gauge | 28 AWG |
| Brand Name | Mellanox |
| Cable length | 9.84 ft |
| Cable type | Twinaxial |
| Color | Black |
| Color | Black Pull Tab |
| Connector on First End | QSFP Network |
| Connector on First End | 1 x QSFP Network |
| Connector on Second End | 1 x QSFP Network |
| Connector on Second End | QSFP - Network |
| Data transfer rate | 40 Gbit/s |
| Device Supported | Network Device |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | EMI Protection |
| Features | Passive |
| Limited Warranty | 1 Year |
| Manufacturer | Mellanox Technologies Ltd |
| Manufacturer Part Number | MCP1700-B003E |
| Manufacturer Website Address | http://www.mellanox.com |
| Marketing Information | Mellanox® QSFP+ direct attach copper (DAC) cables provide robust connections for leading edge 56Gb/s InfiniBand or 40GbE Ethernet systems. The cables consist of four lanes each operating at data rates of up to 14.0625Gb/s.
Passive copper cables require no additional power to ensure quality connectivity. The cables are compliant with SFF-8685 specifications and provide connectivity between devices using QSFP+ ports. Each QSFP+ port comprises an EEPROM providing product information which can be read by the host system.
This integrated cable solution provides reliable transport for aggregate data rates of up to 56Gb/s Virtual Protocol Interconnect (VPI). Optimizing systems to operate with Mellanox's 56Gb/s passive copper cables significantly reduces power consumption and EMI emission eliminating the use of enterprise data center (EDC) hosts.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability. |
| Product Line | LinkX |
| Product Name | LinkX Twinaxial Network Cable |
| Product Type | Network Cable |
