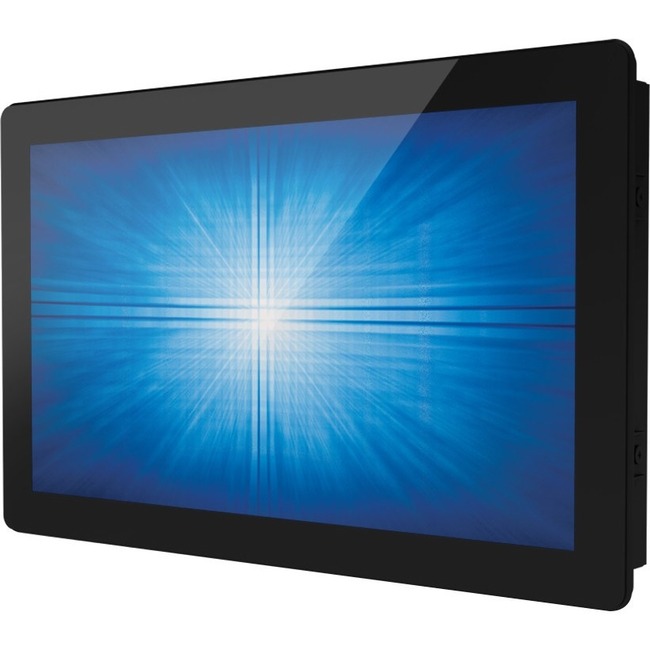

Elo 1593L 15.6" Open-frame LCD Touchscreen Monitor - 16:9 - 10 ms - Surface Acoustic Wave - 1366 x 768 - WXGA - 16.7 Million Colors - 500:1 - 300 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - TÜV, RoHS, China RoHS, WEEE - 3 Year
Surface Acoustic Wave - 1366 x 768 - WXGA - 16.7 Million Colors - 500:1 - 300 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - TÜV, RoHS, China RoHS, WEEE - 3 Year
| Touchscreen Type | Surface Acoustic Wave |
| Aspect ratio | 16:9 |
| Backlight Technology | LED |
| Brand Name | Elo |
| Brightness | 300 Nit |
| Color Supported | 16.7 Million Colors |
| Contrast Ratio | 500:1 |
| Depth | 1.8" |
| Environmental Certification | WEEE |
| Environmental Certification | China RoHS |
| Environmental Certification | RoHS |
| Environmental Certification | TÜV |
| Environmentally Friendly | Yes |
| Height | 8.7" |
| Limited Warranty | 3 Year |
| Manufacturer | Elo Touch Solutions Inc |
| Manufacturer Part Number | E329636 |
| Manufacturer Website Address | http://www.elotouch.com |
| Marketing Information | The Elo 1593L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art energy-saving LED backlight using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1593L provides stable drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention the 15.6-inch open frame is perfect for kiosks casino and amusement retail self-service and industrial automation environments. Easily integrated. The touchscreen is sealed against dirt dust and liquids which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs. Touch ready. Available with a choice of industry leading touch technologies in single- or multi-touch technology including IntelliTouch® single-touch surface acoustic wave (SAW) touchscreen technology and our latest zero-bezel TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Commercial-grade. The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design build and are responsible for the complete solution with touch integrated from the start. Using our touchscreens combined with our software and drivers everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50000 MTBF. Other features. - Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Display Port and VGA video interfaces
|
| Maximum resolution | 1366 x 768 |
| Mount Type | Front Mount |
| Mount Type | Rack-mountable |
| Operating Power Consumption | 13.60 W |
| Package Contents | - 1593L 15.6" Open Frame Touchscreen (Rev B)
- HDMI cable
- VGA Cable
- RJ45 OSD Remote
- Touch USB Cable
- User Manual CD
- Quick Install Guide
- "L" (Side Mount) Brackets and w/Screws
- EEI Label
- Japan Class-B TM info sheet
|
| Product color | Black |
| Product Model | 1593L |
| Product Name | 1593L 15.6" Open Frame Touchscreen (Rev B) |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Response time | 10 ms |
| Screen Mode | WXGA |
| UPC Alternates | 815335025938 |
| Viewable Screen Size | 15.6" |
| Weight (Approximate) | 6.70 lb |
| Width | 14.8" |
