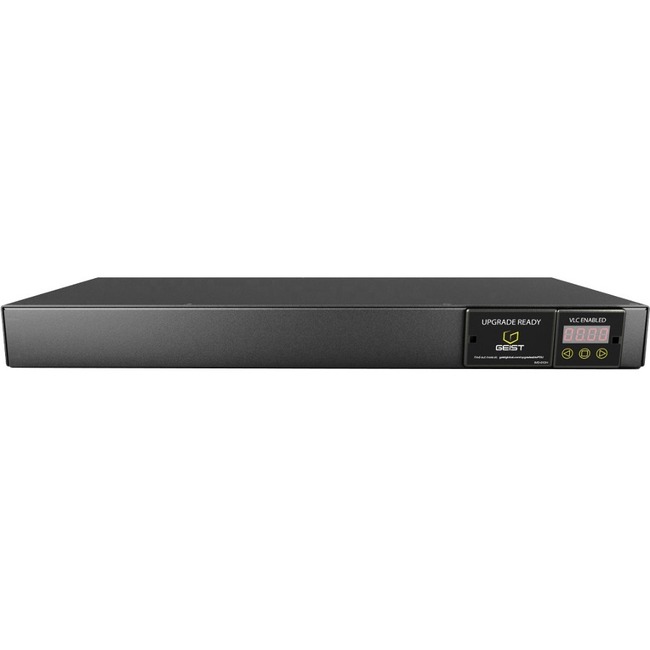

Geist rPDU MU01D1R0-10L137-2C20A9H00-S 10-Outlets PDU - Metered - IEC 60320 C20 - 10 x U-Lock IEC 60320 C13 - 120 V AC, 230 V AC - 1U - Horizontal - Rack-mountable, Cabinet-mountable
Metered - IEC 60320 C20 - 10 x U-Lock IEC 60320 C13 - 120 V AC, 230 V AC - 1U - Horizontal - Rack-mountable, Cabinet-mountable
| Mounting Orientation | Horizontal |
| Mounting Orientation | Horizontal |
| PDU Type | Metered |
| PDU Type | Metered |
| Plug/Connector Detail | 1 x IEC 60320 C20 |
| Plug/Connector Detail | 1 x IEC 60320 C20 |
| Power Rating (Watt) | 3600 W |
| Power Rating (Watt) | 3600 W |
| Receptacle Detail | 10 x U-Lock IEC 60320 C13 |
| Receptacle Detail | 10 x U-Lock IEC 60320 C13 |
| Brand Name | Geist |
| Brand Name | Geist |
| Country of origin | United States |
| Country of origin | United States |
| Depth | 8.5" |
| Depth | 8.5" |
| Height | 1.7" |
| Height | 1.7" |
| Input current | 20 A |
| Input current | 20 A |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 240 V AC |
| Input Voltage Range | 100 V AC - 240 V AC |
| Manufacturer | Vertiv |
| Manufacturer | Vertiv |
| Manufacturer Part Number | UI10016L |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Marketing Information | Upgradeable Metered rPDUs provide reliable power distribution to critical IT equipment within a rack or cabinet while delivering a view of real-time view of power usage from a local LED display. Benefits - With the Geist Upgradeable hot-swap technology users may easily transform metered rPDUs to monitored rPDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD).
- Avoid accidental overloads when deploying or moving critical server equipment with instant access to power consumption metrics on the local digital display.
- Gather comprehensive power data at the palm of your hand with the use of the Vertiv VLC mobile app.
- Every unit is 100% tested for reliability and functionality.
- Simple and convenient configuration options for cord lengths and chassis colors.
|
| Marketing Information | Upgradeable Metered rPDUs provide reliable power distribution to critical IT equipment within a rack or cabinet while delivering a view of real-time view of power usage from a local LED display. Benefits - With the Geist Upgradeable hot-swap technology users may easily transform metered rPDUs to monitored rPDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD).
- Avoid accidental overloads when deploying or moving critical server equipment with instant access to power consumption metrics on the local digital display.
- Gather comprehensive power data at the palm of your hand with the use of the Vertiv VLC mobile app.
- Every unit is 100% tested for reliability and functionality.
- Simple and convenient configuration options for cord lengths and chassis colors.
|
| Mount Type | Cabinet-mountable |
| Mount Type | Cabinet-mountable |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Output Voltage Range | 100 V AC - 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Output Voltage Range | 208 V AC - 240 V AC |
| Output Voltage Range | 208 V AC - 240 V AC |
| Plug/Connector Type | IEC 60320 C20 |
| Plug/Connector Type | IEC 60320 C20 |
| Product Model | MU01D1R0-10L137-2C20A9H00-S |
| Product Model | MU01D1R0-10L137-2C20A9H00-S |
| Product Name | rPDU MU01D1R0-10L137-2C20A9H00-S 10-Outlets PDU |
| Product Name | rPDU MU01D1R0-10L137-2C20A9H00-S 10-Outlets PDU |
| Product Series | rPDU |
| Product Series | rPDU |
| Product Type | PDU |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Protection Type | Overload Protection |
| Rack Height | 1U |
| Rack Height | 1U |
| Receptacle Type | U-Lock IEC 60320 C13 |
| Receptacle Type | U-Lock IEC 60320 C13 |
| Width | 17" |
| Width | 17" |
