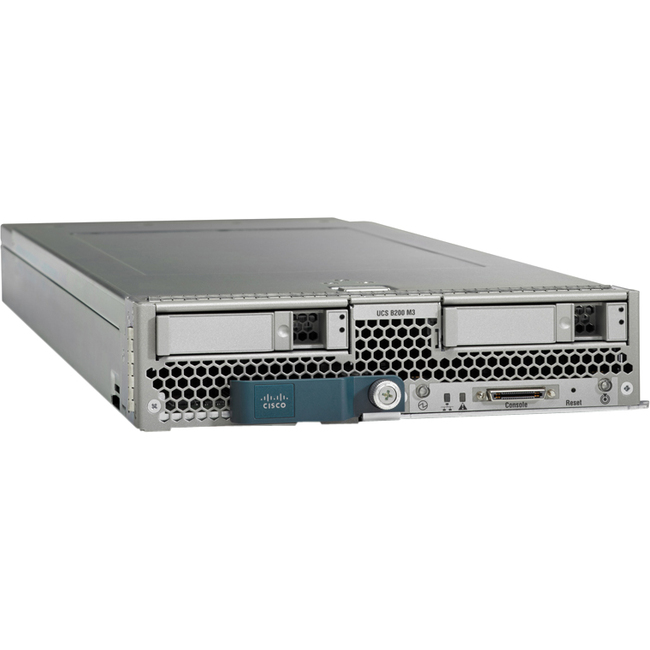

Cisco Barebone System - Blade - Socket R LGA-2011 - 2 x Processor Support - 768 GB DDR3 SDRAM DDR3-1600/PC3-12800 Maximum RAM Support - 24 Total Memory Slots - Serial ATA/600 RAID Supported, 6Gb/s SAS Controller - 1.20 TB HDD Support - Network (RJ-45) - Processor Support (Xeon) - 90 Day
768 GB DDR3 SDRAM DDR3-1600/PC3-12800 Maximum RAM Support - 24 Total Memory Slots - Serial ATA/600 RAID Supported, 6Gb/s SAS Controller - 1.20 TB HDD Support - Network (RJ-45) - Processor Support (Xeon) - 90 Day
| 64-bit Processing | Yes |
| 64-bit Processing | Yes |
| Maximum Memory Supported | 768 GB |
| Maximum Memory Supported | 768 GB |
| Memory Standard | DDR3-1600/PC3-12800 |
| Memory Standard | DDR3-1600/PC3-12800 |
| Number of Processors Supported | 2 |
| Number of Processors Supported | 2 |
| Processor Socket | Socket R LGA-2011 |
| Processor Socket | Socket R LGA-2011 |
| Processor Supported | Xeon |
| Processor Supported | Xeon |
| Processor Technology | vPro Technology |
| Processor Technology | Trusted Execution Technology |
| Processor Technology | vPro Technology |
| Processor Technology | Enhanced SpeedStep Technology |
| Processor Technology | Virtualization Technology |
| Processor Technology | Hyper-Threading Technology |
| Processor Technology | Virtualization Technology |
| Processor Technology | Hyper-Threading Technology |
| Processor Technology | Enhanced SpeedStep Technology |
| Processor Technology | Trusted Execution Technology |
| QuickPath Interconnect | 8 GT/s |
| QuickPath Interconnect | 8 GT/s |
| Total Hard Drive Capacity Supported | 1.20 TB |
| Total Hard Drive Capacity Supported | 1.20 TB |
| Brand Name | Cisco |
| Brand Name | Cisco |
| Certifications & Standards | Regulatory Compliance: - Products should comply with CE Markings according to directives 2004/108/EC and 2006/108/EC
Safety: - UL 60950-1 No. 21CFR1040 Second Edition
- CAN/CSA-C22.2 No. 60950-1 Second Edition
- IEC 60950-1 Second Edition
- EN 60950-1 Second Edition
- IEC 60950-1 Second Edition
- AS/NZS 60950-1
- GB4943 2001
EMC: Emissions: - 47CFR Part 15 (CFR 47) Class A
- AS/NZS CISPR22 Class A
- CISPR2 2 Class A
- EN55022 Class A
- ICES003 Class A
- VCCI Class A
- EN61000-3-2
- EN61000-3-3
- KN22 Class A
- CNS13438 Class A
EMC: Immunity: - EN55024
- CISPR24
- EN300386
- KN24
|
| Certifications & Standards | Regulatory Compliance: - Products should comply with CE Markings according to directives 2004/108/EC and 2006/108/EC
Safety: - UL 60950-1 No. 21CFR1040 Second Edition
- CAN/CSA-C22.2 No. 60950-1 Second Edition
- IEC 60950-1 Second Edition
- EN 60950-1 Second Edition
- IEC 60950-1 Second Edition
- AS/NZS 60950-1
- GB4943 2001
EMC: Emissions: - 47CFR Part 15 (CFR 47) Class A
- AS/NZS CISPR22 Class A
- CISPR2 2 Class A
- EN55022 Class A
- ICES003 Class A
- VCCI Class A
- EN61000-3-2
- EN61000-3-3
- KN22 Class A
- CNS13438 Class A
EMC: Immunity: - EN55024
- CISPR24
- EN300386
- KN24
|
| Controller Type | 6Gb/s SAS |
| Controller Type | Serial ATA/600 |
| Controller Type | 6Gb/s SAS |
| Controller Type | Serial ATA/600 |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Form factor | Blade |
| Form factor | Blade |
| Limited Warranty | 90 Day |
| Limited Warranty | 90 Day |
| Manufacturer | Cisco Systems Inc |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | UCSB-B200-M3-U |
| Manufacturer Part Number | UCSB-B200-M3-U |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | The Cisco® Unified Computing System™ (Cisco UCS™) combines Cisco UCS B-Series Blade Servers and C-Series Rack Servers with networking and storage access in a single converged system that simplifies management and delivers greater cost efficiency and agility with increased visibility and control. The latest server expansion of the Cisco UCS portfolio includes the new Cisco UCS B200 M3 Blade Server along with the new Cisco UCS C220 M3 Rack Server (one rack unit [1RU]) and Cisco UCS C240 M3 Rack Server (2RU). These three new servers increase compute density through more cores and cache balanced with more memory capacity and drives and with faster I/O. Together these server improvements and complementary Cisco UCS system advancements deliver the best combination of features and cost efficiency to support IT's diverse needs. |
| Marketing Information | The Cisco® Unified Computing System™ (Cisco UCS™) combines Cisco UCS B-Series Blade Servers and C-Series Rack Servers with networking and storage access in a single converged system that simplifies management and delivers greater cost efficiency and agility with increased visibility and control. The latest server expansion of the Cisco UCS portfolio includes the new Cisco UCS B200 M3 Blade Server along with the new Cisco UCS C220 M3 Rack Server (one rack unit [1RU]) and Cisco UCS C240 M3 Rack Server (2RU). These three new servers increase compute density through more cores and cache balanced with more memory capacity and drives and with faster I/O. Together these server improvements and complementary Cisco UCS system advancements deliver the best combination of features and cost efficiency to support IT's diverse needs. |
| Memory Technology | DDR3 SDRAM |
| Memory Technology | DDR3 SDRAM |
| Number of Total Memory Slots | 24 |
| Number of Total Memory Slots | 24 |
| Product Name | UCS B200 M3 Barebone System |
| Product Name | UCS B200 M3 Barebone System |
| Product Series | B200 M3 |
| Product Series | B200 M3 |
| Product Type | Barebone System |
| Product Type | Barebone System |
| RAID Levels | 0 1 |
| RAID Levels | 0 1 |
| UPC Alternates | 882658482526 |
| UPC Alternates | 882658482526 |
