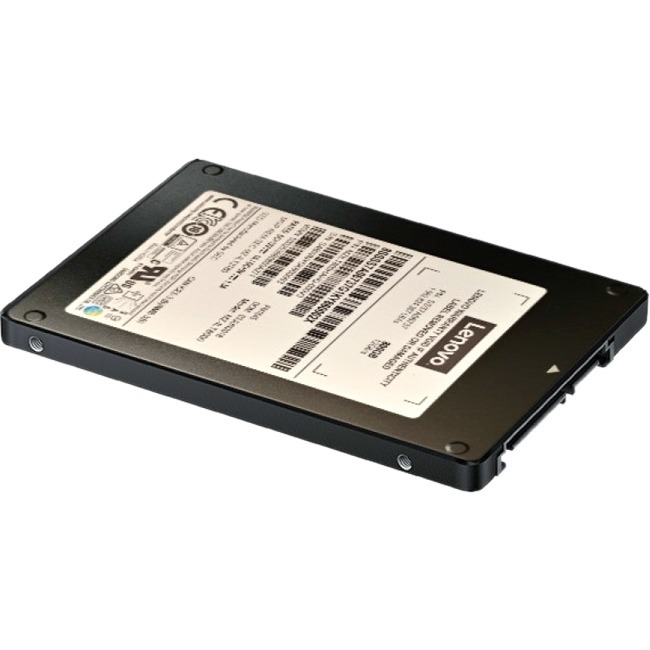

Lenovo PM1645a 6.40 TB Solid State Drive - 2.5" Internal - SAS (12Gb/s SAS) - 2.5" Carrier - Server Device Supported - 3 DWPD - 35040 TB TBW - 1000 MB/s Maximum Read Transfer Rate - Hot Swappable - 1 Year Warranty - 1 Pack
Server Device Supported - 3 DWPD - 35040 TB TBW - 1000 MB/s Maximum Read Transfer Rate - Hot Swappable - 1 Year Warranty - 1 Pack
| Endurance (DWPD) | 3 |
| Random 4KB Read | 230000IOPS |
| Random 4KB Write | 140000IOPS |
| Brand Name | Lenovo |
| Compatibility | ThinkSystem Servers: - SR630 V2 (7Z70 / 7Z71)
- SR650 V2 (7Z72 / 7Z73)
- SR670 V2 (7Z22 / 7Z23)
- SR635 (7Y98 / 7Y99)
- SR655 (7Y00 / 7Z01)
- SR645 (7D2Y / 7D2X)
- SR665 (7D2W / 7D2V)
- ST550 (7X09 / 7X10)
- SR530 (7X07 / 7X08)
- SR550 (7X03 / 7X04)
- SR570 (7Y02 / 7Y03)
- SR590 (7X98 / 7X99)
- SR630 (7X01 / 7X02)
- SR650 (7X05 / 7X06)
- SR670 (7Y36 / 7Y37)
- SD530 (7X21)
- SN550 (7X16)
- S850 (7X15)
- SR850 (7X18 / 7X19)
- SR850P (7D2F / 2D2G)
- SR860 (7X69 / 7X70)
|
| Depth | 3.9" |
| Device Supported | Server |
| Drive Interface | SAS |
| Drive Interface Standard | 12Gb/s SAS |
| Drive Type | Internal |
| Endurance (TBW) | 35040 TB |
| Environmental Certification | RoHS |
| Form factor | 2.5" |
| Height | 0.6" |
| Hot Swappable | Yes |
| Limited Warranty | 1 Year |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 4XB7A17065 |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Marketing Information | The ThinkSystem PM1645a Mainstream SAS 12Gb solid-state drives (SSDs) in capacities of up to 6.4 TB are next-generation high-performance SSDs suitable for a wide range of applications of running on ThinkSystem servers.
The PM1645a SSDs are the follow-on to the PM1645 SSDs and offer improved random write performance.
Unlike SATA drives the 12 Gb/s SAS interface on these drives supports full duplex data transfer for higher performance and enterprise-level error recovery for better availability. By combining the enhanced reliability of Samsung NAND flash memory silicon with NAND Flash management technologies PM1645a SSDs deliver the extended endurance of up to 3 drive writes per day (DWPD) for 5 years which is suitable for many enterprise applications. |
| Maximum Read Transfer Rate | 1000 MB/s |
| Package Contents | - One solid-state drive with a hot-swap tray
- Documentation flyer
|
| Packaged Quantity | 1 |
| Product Name | ThinkSystem 2.5" PM1645a 6.4TB Mainstream SAS 12Gb Hot Swap SSD |
| Product Series | PM1645a |
| Product Type | Solid State Drive |
| Storage Capacity | 6.40 TB |
| UPC Alternates | 889488526789 |
| Weight (Approximate) | 4.94 oz |
| Width | 2.8" |
| Wireless LAN | No |
