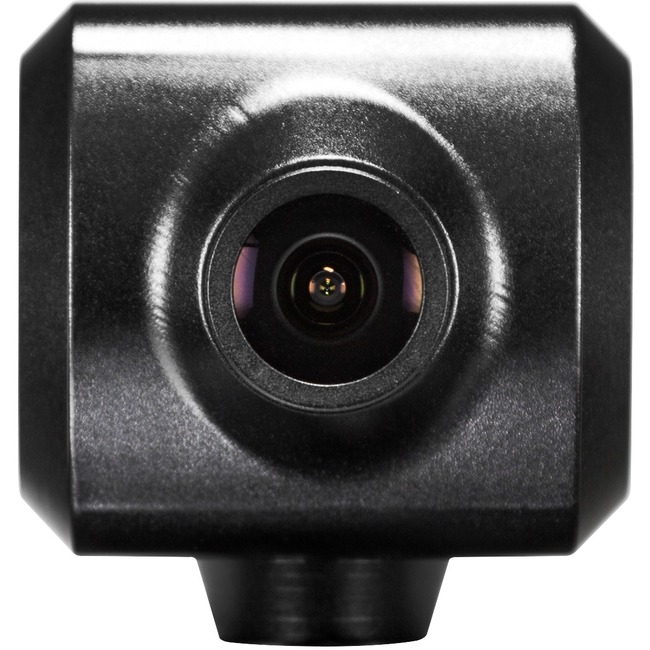

Marshall Miniature CV503-U3 2.5 Megapixel Full HD Surveillance Camera - Color - 1920 x 1080 - 2.80 mm Fixed Lens - CMOS 1920 x 1080 - 2.80 mm Fixed Lens - CMOS
Product Specifications
Field of View
90°AOV
HD Recording
Yes
Lens Mount Type
M12-mount
Minimum Operating Temperature
14°F (-10°C)
Remote Management
No
Brand Name
Marshall
Color Supported
Color
Connectivity technology
Wired
Depth
1.9"
Effective Camera Resolution
2.5 Megapixel
Features
Gain Control
Features
Back Light Compensation (BLC)
Features
Automatic White Balance
Height
1.8"
Image Sensor Type
CMOS
Lens Type
Fixed
Manufacturer
Marshall Electronics Inc
Manufacturer Part Number
CV503-U3
Manufacturer Website Address
http://www.mars-cam.com
Marketing Information
The Marshall CV503-U3 is a straight forward USB3.0 HD camera with secure locking USB connection and customizable lens options. CV503-U3 uses drivers already existent on your PC Laptop Mac or Linux system and is software agnostic so any soft codec can be used. Settings adjustable via UVC1.5 offer simple plug-and-play connectivity and reliable operation. Miniature Broadcast Quality
CV503-U3 cameras use same sensor and processors as other Marshall Broadcast ProAV cameras such as CV503 CV506 CV566 CV344 CV346 commonly used in professional broadcast production sportscast newscast television production and a variety of other professional broadcast quality applications. These cameras have same adjustable broadcast features such as White Balance Black Levels Exposure Gain Gamma and many more.
Lens Flexibility
CV503-U3 arrives with a wide angle 2.8mm lens producing a 90° horizontal angle-of-view. Choose from a variety of Focal Length options to achieve a custom AOV (angle-of-view) for your personal huddle space streaming studio workspace live event venue or collaboration area. Interchangeable lenses provides unprecedented customization and personal design control.
Software Agnostic Security
Marshall's USB cameras use capture device drivers already present on your laptop or computer so no additional drivers necessary that track and change your video capture settings. CV503-U3 is software agnostic so feel free to use any video conference streaming video chat or computer video capture soft codecs on the market today.
Durable and Secure
CV503-U3 is built with same durable body as other Marshall miniature POV cameras with rear connector protection wings on back panel. CV503-U3 ships with a locking six foot USB3.0 cable so USB cable can't be pulled out during video streaming or collaboration.
Maximum Focal Length
2.80 mm
Maximum frame rate
60 fps
Maximum Operating Temperature
122°F (50°C)
Maximum Video Resolution
1920 x 1080
Product Line
Miniature
Product Name
USB3.0 Miniature POV Camera
Product Type
Surveillance Camera
Recording Formats
Full HD
Weight (Approximate)
3.84 oz
Width
1.7"
