| First End Connector Detail | 1 x 5-pin IEC 60309 3P+N+E Male |
| First End Connector Detail | 1 x 5-pin IEC 60309 3P+N+E Male |
| First End Connector Type | IEC 60309 3P+N+E |
| First End Connector Type | IEC 60309 3P+N+E |
| Second End Connector Detail | 1 x 8-pin Universal Connector Female |
| Second End Connector Detail | 1 x 8-pin Universal Connector Female |
| Second End Connector Type | Universal Connector |
| Second End Connector Type | Universal Connector |
| Additional Information |
|
| Additional Information |
|
| Brand Name | Geist |
| Brand Name | Geist |
| Certifications & Standards |
|
| Certifications & Standards |
|
| Compatibility | Vertiv Geist Universal Rack PDU (UPDU) |
| Compatibility | Vertiv Geist Universal Rack PDU (UPDU) |
| Cord Length | 10 ft |
| Cord Length | 10 ft |
| Current rating | 20 A |
| Current rating | 16 A |
| Current rating | 20 A |
| Current rating | 16 A |
| Device Supported | PDU |
| Device Supported | PDU |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | Vertiv |
| Manufacturer | Vertiv |
| Manufacturer Part Number | FSC3U001 |
| Manufacturer Part Number | FSC3U001 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer Website Address | http://www.vertiv.com/ |

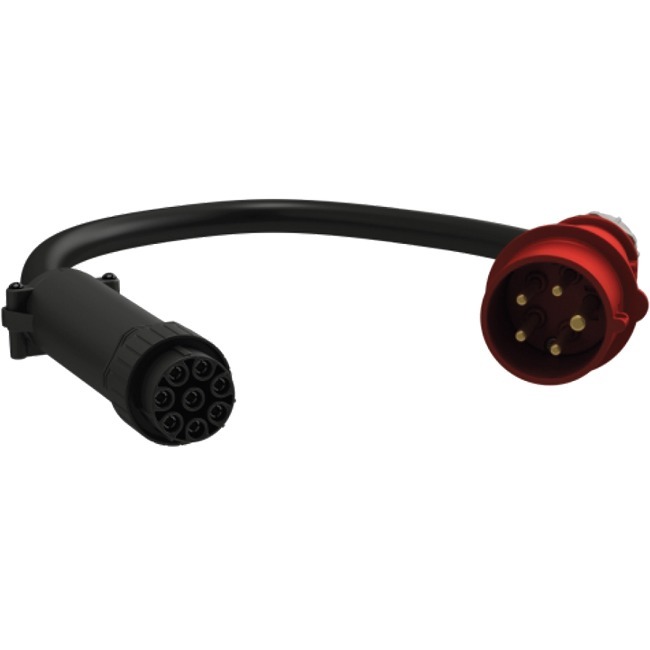

| Marketing Information | The Vertiv Geist Facility Side Cable (FSC3U001) is the detachable power cord used to define the input power configuration of the Vertiv Geist Universal Power Distribution Unit (Vertiv Geist UPDU). This 10-foot cord is equipped with a 3P+N+E plug. It has a max power capacity of 11kW and has a power rating of 16/20A and 230/400V WYE. |
| Marketing Information | The Vertiv Geist Facility Side Cable (FSC3U001) is the detachable power cord used to define the input power configuration of the Vertiv Geist Universal Power Distribution Unit (Vertiv Geist UPDU). This 10-foot cord is equipped with a 3P+N+E plug. It has a max power capacity of 11kW and has a power rating of 16/20A and 230/400V WYE. |
| Packaged Quantity | 1 |
| Packaged Quantity | 1 |
| Product Model | CSU-S02A3-43000-2PS56B-S |
| Product Model | CSU-S02A3-43000-2PS56B-S |
| Product Name | CSU-S02A3-43000-2PS56B-S Standard Power Cord |
| Product Name | CSU-S02A3-43000-2PS56B-S Standard Power Cord |
| Product Type | Standard Power Cord |
| Product Type | Standard Power Cord |
| UPC Alternates | 767041029826 |
| UPC Alternates | 767041029826 |
| Voltage Rating | 415 V AC |
| Voltage Rating | 230 V AC |
| Voltage Rating | 415 V AC |
| Voltage Rating | 230 V AC |
