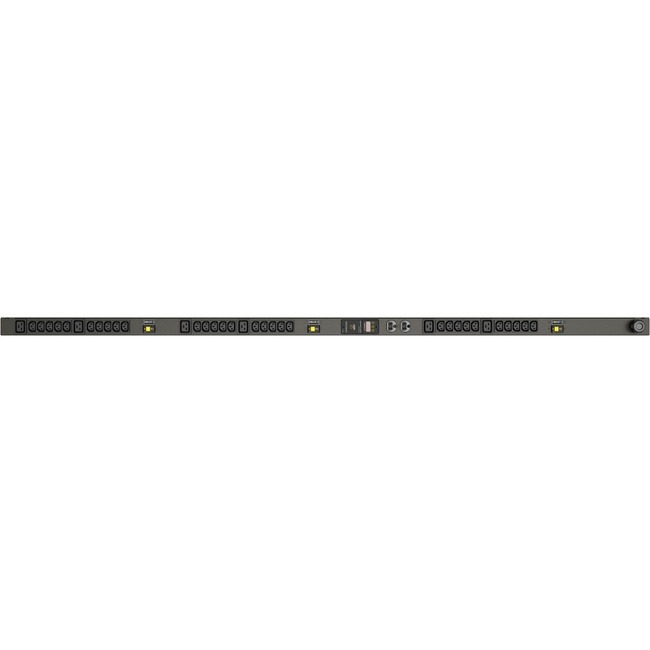

Geist MN01D4W1-38MP19-3TL21A0A10-S 38-Outlets PDU
| $821.48 Retail $1,088.00 |
- PDU is reliable for power protection and management solutions
- Monitor load level efficiently with PDU meter
Metered - NEMA L21-30P - 30 x IEC 60320 C13, 6 x IEC 60320 C19, 2 x NEMA 5-20R - 120 V AC, 230 V AC - 0U - Vertical - Rack-mountable
Product Specifications
| Mounting Orientation | Vertical |
| Mounting Orientation | Vertical |
| PDU Type | Metered |
| PDU Type | Metered |
| Phase | Three Phase |
| Phase | Three Phase |
| Plug/Connector Detail | 1 x NEMA L21-30P |
| Plug/Connector Detail | 1 x NEMA L21-30P |
| Power Rating (Watt) | 8600 W |
| Power Rating (Watt) | 8600 W |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Receptacle Detail | 30 x IEC 60320 C13 |
| Receptacle Detail | 2 x NEMA 5-20R |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Receptacle Detail | 2 x NEMA 5-20R |
| Receptacle Detail | 30 x IEC 60320 C13 |
| Brand Name | Geist |
| Brand Name | Geist |
| Country of origin | United States |
| Country of origin | United States |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Input current | 30 A |
| Input current | 30 A |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Input voltage | 120 V AC |
| Input Voltage Range | 120 V AC - 208 V AC |
| Input Voltage Range | 120 V AC - 208 V AC |
| Length | 72" |
| Length | 72" |
| Limited Warranty | 5 Year |
| Limited Warranty | 5 Year |
| Manufacturer | Vertiv |
| Manufacturer | Vertiv |
| Manufacturer Part Number | I10088 |
| Manufacturer Part Number | I10088 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Marketing Information | The I10088 provides real-time power metrics to help prevent overloads and safely optimize load levels. Using Visible Light Communication (VLC) technology I10088 optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geists Upgradeable hot-swap technology users may easily transform Metered PDUs to Monitored by replacing the Interchangeable Monitoring Device (IMD) module without causing any interruption. |
| Marketing Information | The I10088 provides real-time power metrics to help prevent overloads and safely optimize load levels. Using Visible Light Communication (VLC) technology I10088 optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geists Upgradeable hot-swap technology users may easily transform Metered PDUs to Monitored by replacing the Interchangeable Monitoring Device (IMD) module without causing any interruption. |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Output voltage | 208 V AC |
| Output voltage | 208 V AC |
| Package Contents |
|
| Package Contents |
|
| Plug/Connector Type | NEMA L21-30P |
| Plug/Connector Type | NEMA L21-30P |
| Product Model | MN01D4W1-38MP19-3TL21A0A10-S |
| Product Model | MN01D4W1-38MP19-3TL21A0A10-S |
| Product Name | MN01D4W1-38MP19-3TL21A0A10-S 38-Outlets PDU |
| Product Name | MN01D4W1-38MP19-3TL21A0A10-S 38-Outlets PDU |
| Product Type | PDU |
| Product Type | PDU |
| Protection Type | Overcurrent Protection |
| Protection Type | Overcurrent Protection |
| Rack Height | 0U |
| Rack Height | 0U |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | NEMA 5-20R |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | NEMA 5-20R |
| Width | 2" |
| Width | 2" |
