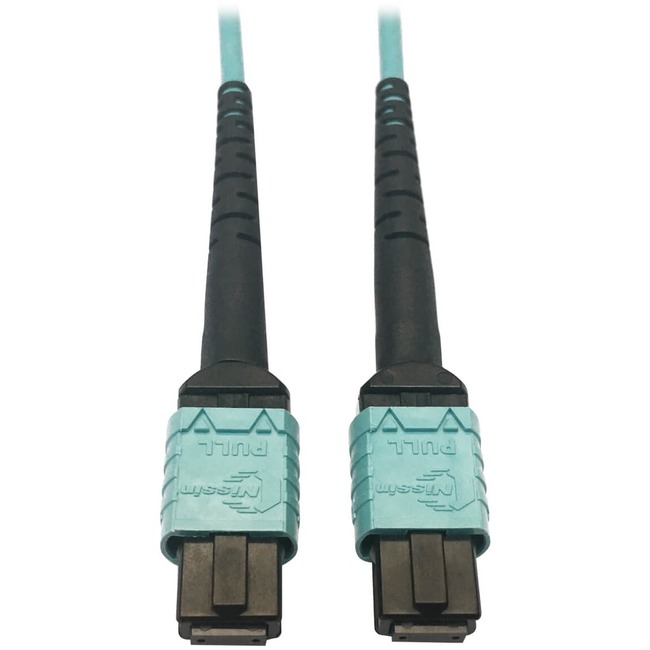

Tripp Lite Multimode Fiber Optic Cable OM4 Plenum 400G 50 24F MTP/MPO-PC F/F 5M - 16.40 ft Fiber Optic Network Cable for Network Device, Transceiver, Network Switch, Patch Panel - First End: 1 x MTP/MPO Female Network - Second End: 1 x MTP/MPO Female Network - 400 Gbit/s - Plenum, OFNP - 50/125 µm - Aqua, Black
16.40 ft Fiber Optic Network Cable for Network Device, Transceiver, Network Switch, Patch Panel - First End: 1 x MTP/MPO Female Network - Second End: 1 x MTP/MPO Female Network - 400 Gbit/s - Plenum, OFNP - 50/125 µm - Aqua, Black
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector Type on First End | MTP/MPO Network - Female |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Cable length | 16.40 ft |
| Cable length | 16.40 ft |
| Cable type | Fiber Optic |
| Cable type | Fiber Optic |
| Color | Aqua |
| Color | Black |
| Color | Aqua |
| Color | Aqua Jacket |
| Color | Aqua Jacket |
| Color | Black |
| Connector on First End | MTP/MPO Female Network |
| Connector on First End | 1 x MTP/MPO Female Network |
| Connector on First End | 1 x MTP/MPO Female Network |
| Connector on First End | MTP/MPO Female Network |
| Core/Cladding Diameter | 50/125 µm |
| Core/Cladding Diameter | 50/125 µm |
| Country of origin | China |
| Country of origin | China |
| Data transfer rate | 400 Gbit/s |
| Data transfer rate | 400 Gbit/s |
| Device Supported | Transceiver |
| Device Supported | Network Device |
| Device Supported | Patch Panel |
| Device Supported | Transceiver |
| Device Supported | Patch Panel |
| Device Supported | Network Device |
| Device Supported | Network Switch |
| Device Supported | Network Switch |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Features | Stranded |
| Features | Stranded |
| Features | Rugged Jacket |
| Features | Push-Pull Tab |
| Features | Rugged Jacket |
| Features | Push-Pull Tab |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Mode | Multi-mode |
| Jacket Color | Aqua |
| Jacket Type | OFNP |
| Jacket Type | Plenum |
| Jacket Type | Plenum |
| Jacket Type | OFNP |
| Limited Warranty | Lifetime |
| Limited Warranty | Lifetime |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | N846D-05M-24AAQ |
| Manufacturer Part Number | N846D-05M-24AAQ |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | 400 GbE Cable Supports Higher Bandwidths Needed for Next-Gen Data and Voice Networking
As the amount of traffic in data networks grows so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services hyperscale data centers telecom applications and equipment OEM companies. This multimode 50/125 OM4 cable is an ideal choice for 400G Ethernet applications up to 100 meters (at 850 nm). It has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards. 24-Fiber MTP/MPO Connectors Designed for the Latest QSFP-DD Transceivers
The 24F MPO connectors have a wide parallel optical interface for use with the latest 400G QSFP-DD transceivers making this cable an excellent solution for your high-density network application. The connectors are the same size as standard SC connectors but much denser allowing vertical stacking in switches or patch panels where space is at a premium. Pull tabs make the cable easy to install or remove with one hand. Aqua Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has an aqua jacket which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The three-millimeter ruggedized plenum-rated jacket has low smoke and flame characteristics making it suitable for premise applications in ceilings walls and ducts. |
| Marketing Information | 400 GbE Cable Supports Higher Bandwidths Needed for Next-Gen Data and Voice Networking
As the amount of traffic in data networks grows so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services hyperscale data centers telecom applications and equipment OEM companies. This multimode 50/125 OM4 cable is an ideal choice for 400G Ethernet applications up to 100 meters (at 850 nm). It has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards. 24-Fiber MTP/MPO Connectors Designed for the Latest QSFP-DD Transceivers
The 24F MPO connectors have a wide parallel optical interface for use with the latest 400G QSFP-DD transceivers making this cable an excellent solution for your high-density network application. The connectors are the same size as standard SC connectors but much denser allowing vertical stacking in switches or patch panels where space is at a premium. Pull tabs make the cable easy to install or remove with one hand. Aqua Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has an aqua jacket which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The three-millimeter ruggedized plenum-rated jacket has low smoke and flame characteristics making it suitable for premise applications in ceilings walls and ducts. |
| Product color | Black |
| Product Name | N846D-05M-24AAQ 400G Multimode 50/125 OM4 Fiber Optic Cable Aqua 5 m |
| Product Name | N846D-05M-24AAQ 400G Multimode 50/125 OM4 Fiber Optic Cable Aqua 5 m |
| Product Type | Network Cable |
| Product Type | Network Cable |
| UPC Alternates | 037332258397 |
| UPC Alternates | 037332258397 |
