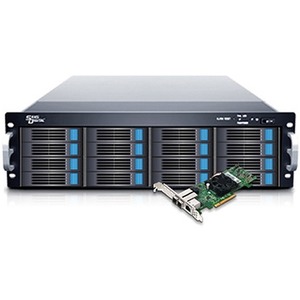

Sans Digital EliteSTOR ES316X12HP - 3U 16 Bay 12G SAS/SATA to 12G Expander with 12G PCIe 3.0 RAID 6 Controller - 16 x HDD Supported - 64 TB Supported HDD Capacity - 16 x SSD Supported - 12Gb/s SAS, Serial ATA/600 Controller - RAID Supported 0, 1, 3, 5, 6, 10, 30, 50, 60, 100, 1E, JBOD, 0, 00, 1, 1E, 10, 10+0, 3, 3+0, 5, 50, ... - 16 x Total Bays - 16 x 3.5" Bay - 3U - Rack-mountable
16 x HDD Supported - 64 TB Supported HDD Capacity - 16 x SSD Supported - 12Gb/s SAS, Serial ATA/600 Controller - RAID Supported 0, 1, 3, 5, 6, 10, 30, 50, 60, 100, 1E, JBOD, 0, 00, 1, 1E, 10, 10+0, 3, 3+0, 5, 50, ... - 16 x Total Bays - 16 x 3.5" Bay - 3U - Rack-mountable
| Maximum Power Supply Wattage | 650 W |
| Total Hard Drive Capacity Supported | 64 TB |
| Certifications & Standards | |
| Controller Type | 12Gb/s SAS |
| Controller Type | Serial ATA/600 |
| Country of origin | Taiwan |
| Depth | 23" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Height | 5.3" |
| Host interface | Mini-SAS |
| Limited Warranty | 3 Year |
| Manufacturer | Sans Digital |
| Manufacturer Part Number | KT-ES316X12HP |
| Manufacturer Website Address | http://www.sansdigital.com |
| Marketing Information | The EliteSTOR ES316X12HP is a complete 3U 12G SAS RAID solution for performance hungry RAID storage solution. Utilizing the latest 12G SAS expander technology the ES316X12HP provides up to 48Gb/s or 4800MB/s of data bandwidth to fulfill the most demanding application. The ES316X12HP supports SATA or SAS 12Gb/s hard drives or SSD and is backward compatible to 6Gb/s SAS & SATA hard drives. By utilizing the latest SAS expander technology the ES316X12HP supports up to 16 SAS or SATA drives using only one HD mini-SAS (SFF-8644) cable. A built-in SAS expansion port enables the system to connect up to 256 drives drives daisy-chained together. The system comes with a high performance RAID controller card and the ES316X12HP is capable of delivering over in 3000MB/s read and write performance doubling the existing 6G SAS expander bandwidth. Dedicated dual-core RAID engines provides RAID 0 1 3 5 6 10 50 60 support with enterprises features and performances. System status information is provided by the LED including hard drives power supply and cooling fan status as well as RAID controller's event log and e-mail notification system. All necessary hardware comes standard including RAID controller card mini-SAS cable hard drives tray modules and built-in mounting rail. The ES316X12HP is an ideal storage expansion solution for servers or high performance video editing workstations. Support Windows (Vista or up Server 2003 or up) Apple (OS X 10.4 or up) Linux and BSD. VMware ESX and Microsoft Hyper-V is also supported. |
| Number of Total Expansion Bays | 16 |
| Package Contents | - EliteSTOR ES316X12HP DAS Array
- 12G PCIe 3.0 RAID Controller
- Bracket
- HD Mini-SAS Cable
- Cooling Fan
- Tray Modules
- Build-in Mounting Rail
|
| Platform Supported | Mac |
| Platform Supported | PC |
| Power source | Power Supply |
| Product Line | EliteSTOR |
| Product Model | ES316X12HP |
| Product Name | EliteSTOR ES316X12HP DAS Array |
| Product Type | DAS Storage System |
| Rack Height | 3U |
| RAID Levels | 3+0 |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 00 |
| RAID Levels | 3 |
| RAID Levels | 10+0 |
| RAID Levels | 0 1 3 5 6 10 30 50 60 100 1E JBOD |
| RAID Levels | 50 |
| RAID Levels | 60 |
| RAID Levels | 6 |
| RAID Levels | 1E |
| RAID Levels | 1 |
| RAID Levels | 0 |
| UPC Alternates | 739410735560 |
| Weight (Approximate) | 46 lb |
| Width | 19" |
