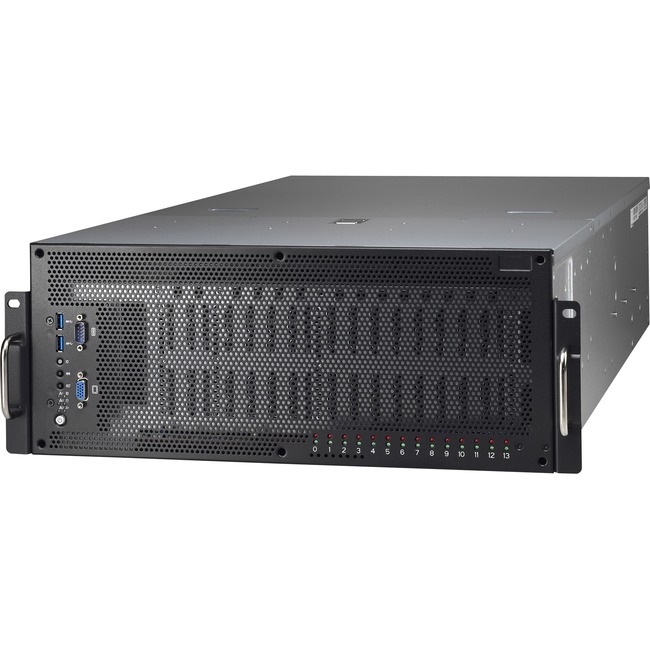

Tyan Thunder HX FA77-B7119 Barebone System - 4U Rack-mountable - Socket P LGA-3647 - 2 x Processor Support - Intel C621 Chip - 3 TB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - 24 Total Memory Slots - Serial ATA/600 RAID Supported Controller - ASPEED AST2500 32 MB Graphic(s) - 4 3.5" Bay(s) - Processor Support (Xeon Silver, Xeon Gold, Xeon Platinum) - 10 Gigabit Ethernet - 4 USB 3.0 Port(s) - 4 x 4800 W - 3 Year
Intel C621 Chip - 3 TB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - 24 Total Memory Slots - Serial ATA/600 RAID Supported Controller - ASPEED AST2500 32 MB Graphic(s) - 4 3.5" Bay(s) - Processor Support (Xeon Silver, Xeon Gold, Xeon Platinum) - 10 Gigabit Ethernet - 4 USB 3.0 Port(s) - 4 x 4800 W - 3 Year
| Chipset | Intel C621 |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2500 |
| Graphics Memory Capacity | 32 MB |
| Maximum Memory Supported | 3 TB |
| Maximum Power Supply Wattage | 4800 W |
| Memory Standard | DDR4-2666/PC4-21300 |
| Number of PCI Express x16 Slots | 11 |
| Number of Power Supplies Installed | 4 |
| Number of Processors Supported | 2 |
| Processor Socket | Socket P LGA-3647 |
| Processor Supported | Xeon Silver |
| Processor Supported | Xeon Gold |
| Processor Supported | Xeon Platinum |
| Brand Name | Tyan |
| Controller Type | Serial ATA/600 |
| Depth | 30.3" |
| Environmental Certification | RoHS-6 |
| Environmentally Friendly | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Form factor | Rack-mountable |
| Height | 6.9" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | B7119F77V4HR-2T-N |
| Manufacturer Website Address | http://www.tyan.com |
| Memory Technology | DDR4 SDRAM |
| Number of Total Memory Slots | 24 |
| Operating System Supported | Red Hat Enterprise linux 7.3 x64 |
| Operating System Supported | Windows Server 2016 |
| Operating System Supported | Windows Server 2012 R2 Datacenter x64 |
| Operating System Supported | Red Hat Enterprise linux 7.4 x64 |
| Operating System Supported | Ubuntu 16.04 x64 |
| Operating System Supported | Red Hat Enterprise Linux 6.9 x64 |
| Package Contents | - Thunder HX FA77B7119 (B7119F77V4HR-2T-N)
- 1 x Quick Installation Guide
- 1 x TYAN Device Driver CD
|
| Packaged Quantity | 1 |
| Product Line | Thunder HX |
| Product Model | FA77-B7119 |
| Product Name | Thunder HX FA77B7119 (B7119F77V4HR-2T-N) |
| Product Type | Barebone System |
| Rack Height | 4U |
| UPC Alternates | 635872045974 |
| Weight (Approximate) | 60.63 lb |
| Width | 17.2" |
