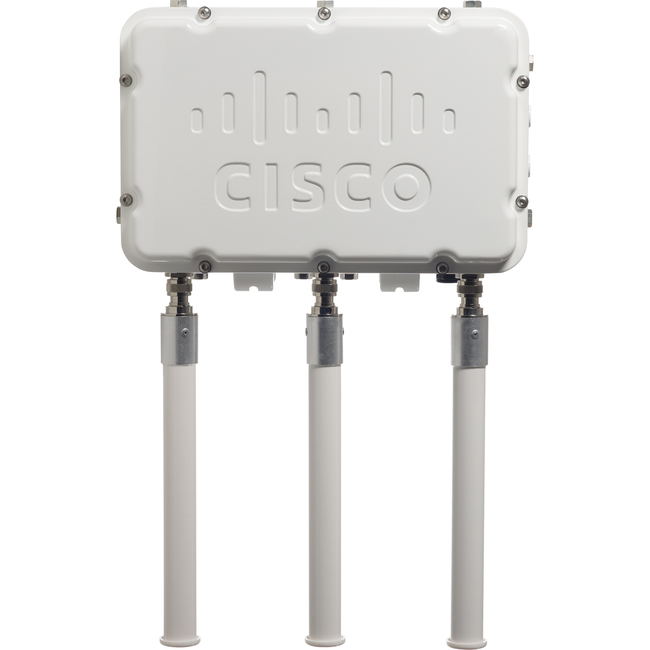

Cisco Aironet 1552E IEEE 802.11n 300 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Pole-mountable
1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Pole-mountable
| Number of Total Expansion Slots | 1 |
| Wireless LAN Standard | IEEE 802.11n |
| Brand Name | Cisco |
| Certifications & Standards | - IP67
- NEMA Type 4X
- Class 1 Div 2/Zone 2
- CSA: Class I Division 2 Groups A B C and D
- ATEX: Class I Zone 2; Ex nA II T5
IEEE Standards: - 802.11b
- 802.11g
- 802.11n
- 802.11a
- 802.15.4
Safety: - UL 60950 2nd Edition
- CAN/CSA-C22.2 No. 60950 2nd Edition
- IEC 60950 2nd Edition
- EN 60950 2nd Edition
Immunity: - ANSI/IEEE C62.41
- EN61000-4-5 Level 4 AC Surge Immunity
- EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity
- EN61000-4-3 Level 4 EMC Field Immunity
- EN61000-4-2 Level 4 ESD Immunity
- EN60950 Overvoltage Category IV
Radio Approvals: - FCC Part 15.247 15.407
- FCC Bulletin OET-65C
- RSS-210
- RSS-102
- AS/NZS 4268.2003
- EN 300 328
- EN 301 893
EMI and Susceptibility: - FCC part 15.107 15.109
- ICES-003
- EN 301 489-1 -17
|
| Depth | 8.6" |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP (mini-GBIC) |
| Features | Quality of Service (QoS) |
| Features | MIMO Technology |
| Form factor | Pole-mountable |
| Height | 6.1" |
| Input voltage | 12 V DC |
| ISM Band | Yes |
| ISM Maximum Frequency | 2.48 GHz |
| ISM Minimum Frequency | 2.40 GHz |
| Limited Warranty | 1 Year |
| Management | Cisco Prime Network Control System (NCS) |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | AIR-CAP1552EAK9-RF |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | Flexible High-Performance Mesh The Cisco Aironet 1550 Series Outdoor Access Point offers a flexible secure and scalable mesh platform that is part of the Cisco Unified Wireless Network and the Cisco Service Provider Wi-Fi solution. It offers high-performance mobility across large metropolitan-sized areas and enterprise campuses manufacturing yards and mining pits. Carrier-grade design allows service providers to take advantage of Wi-Fi for next-generation mobile data offloads. The Cisco Aironet 1550 Series provides high-performance device access through improved radio sensitivity and range with 802.11a/b/g/n multiple-input multiple-output (MIMO) technology with two spatial streams. Multiple uplink and power options are available. The 802.3af-compliant Power-over-Ethernet (PoE) interface makes it easy to connect IP devices such as IP video cameras. NEMA Type 4X enclosures help ensure a robust system that can withstand demanding environments. To help ensure uptime for mission-critical applications even in the event that electrical power becomes unavailable the Cisco Aironet 1550 Series offers an internal battery for backup power. |
| Product Condition | Refurbished |
| Product Family | Aironet 1550 |
| Product Line | Aironet |
| Product Model | 1552E |
| Product Name | Aironet 1552E Wireless Access Point |
| Product Series | 1550 |
| Product Type | Wireless Access Point |
| UNII Maximum Frequency | 5.85 GHz |
| UNII Minimum Frequency | 5.25 GHz |
| UPC Alternates | 882658532979 |
| USB | No |
| Weight (Approximate) | 17.30 lb |
| Width | 12.3" |
| Wireless Security | - AES
- TLIP
- 802.11i
- WPA2
- WPA
- 802.1X
- EAP (EAP-PEAP)
- EAP (EAP-TLS)
- TLS (EAP-TTLS)
- Cisco LEAP
|
| Wireless Transmission Speed | 300 Mbit/s |
