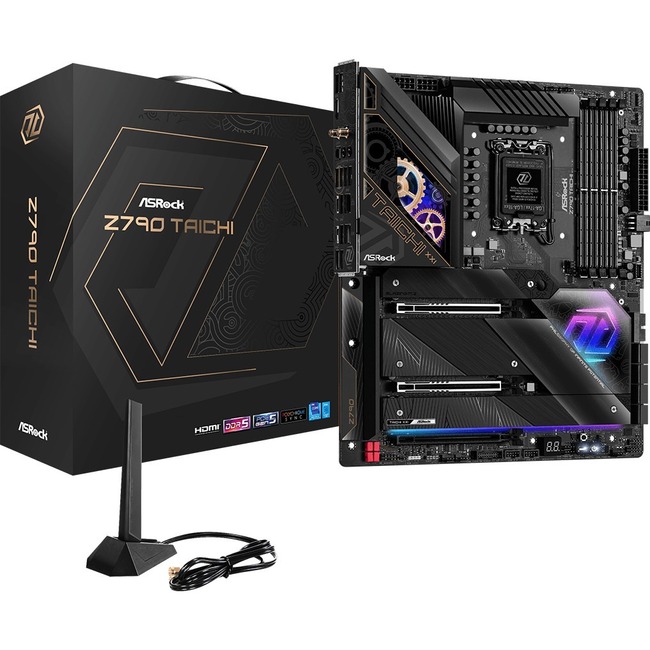

ASRock Z790 TAICHI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Extended ATX
| $427.08 |
- Compatible Core processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- RAID supported levels provide data reliability and fault tolerance
- Wireless LAN support lets you connect to the internet and have instant access to social media, music, movies and online games
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- Extended ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- With 2 USB 2.0 ports, transfer several documents without error
Core Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11ax - HDMI - 8 x SATA Interfaces
Product Specifications
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| HDMI Version | 2.1 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 7000 MHz |
| Multi GPU Supported | CrossFire |
| Number of Memory Slots | 4 |
| Number of PCI Express x16 Slots | 3 |
| Number of SATA Interfaces | 8 |
| Number of USB 3.2 Gen 1 Ports | 6 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express Standard | PCI Express 5.0 |
| Processor Generation Supported | 13th Gen |
| Processor Generation Supported | 12th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Core |
| S/PDIF | Yes |
| Total Number of Onboard USB Ports | 9 |
| Wireless LAN Standard | IEEE 802.11ax |
| Audio Channels | 7.1 |
| Brand Name | ASRock |
| Controller Type | Serial ATA/600 |
| Depth | 10.5" |
| Form factor | Extended ATX |
| Manufacturer | ASRock Inc |
| Manufacturer Part Number | Z790 TAICHI |
| Manufacturer Website Address | http://www.asrock.com |
| Marketing Information | Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task - with style! Become like water. Shapeless formless versatile for any situation. Dr.MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. 8 Layer PCB design The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency ensures a reliable and long-lasting system while delivering ultimate performance without any compromise. DDR5 XMP & EXPO Support Derived from the "built for stable and reliable" designing concept ASRock does not compromise on any details. This motherboards is built with low-loss materials enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7000MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable satisfying and absolutely no sweat at all. DDR5 Memory with Protection Circuit The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal with this superior revolutionary design it is able to dramatically overclock DRAM module up to insane frequency. PCIe 5.0 + Surface-Mount Tech Compares to conventional DIP style PCIe slot the SMT type PCIe slot improves signal flow and maximize stability under high speed a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. PCIe Gen5 Blazing M.2 The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation with a breathtaking 128Gb/s transfer speed it is ready to unleash the full potential of future ultrafast SSDs. Anti-Drop Screw Tired of dropping screws or screws missing inside chassis? |
| Memory form factor | UDIMM |
| Memory form factor | DIMM |
| Memory Technology | DDR5 SDRAM |
| Number of USB 2.0 Ports | 2 |
| Product Name | Z790 TAICHI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| RAID Levels | 0 |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 1 |
| Total Number of USB Ports | 12 |
| Width | 12" |
