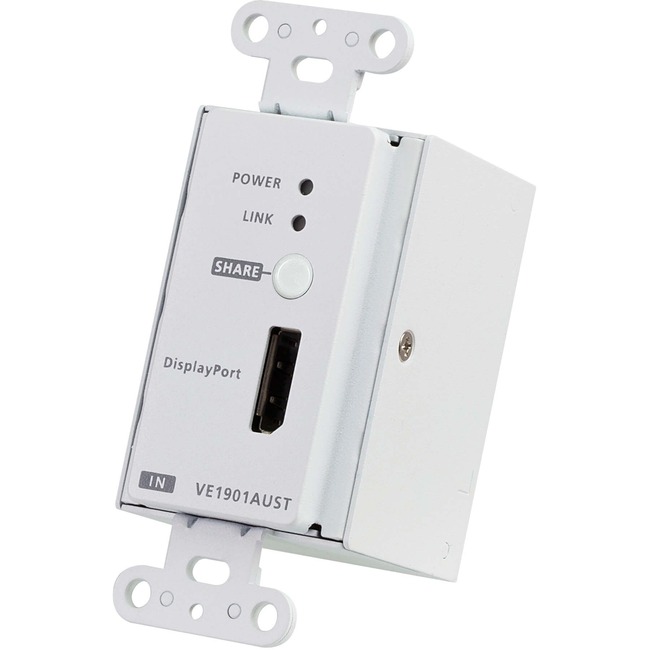

ATEN DisplayPort HDBaseT-Lite Transmitter with US Wall Plate / PoH - 1 Input Device - 229.66 ft Range - 1 x Network (RJ-45) - DisplayPort - 4K UHD - 4096 x 2160 - Twisted Pair - Category 6a - Wall Plate
1 Input Device - 229.66 ft Range - 1 x Network (RJ-45) - DisplayPort - 4K UHD - 4096 x 2160 - Twisted Pair - Category 6a - Wall Plate
| Network (RJ-45) | Yes |
| Transmitter Depth | 2.75" |
| Transmitter Height | 0.25" |
| Transmitter Weight (Approximate) | 7.41 oz |
| Transmitter Width | 4.48" |
| Brand Name | ATEN |
| Connectivity technology | Wired |
| Form factor | Wall Plate |
| Graphics Modes | 4K UHD |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | VE1901AUST |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | The ATEN VE1901AUST DisplayPort HDBaseT-Lite transmitter delivers 4K signals up to 40 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable ensuring users to stabilize DisplayPort signal transmission with support of Deep Color and embedded HD lossless audio formats. During high-quality video transmission the transmitter can resist signal interference with the equipped HDBaseT Anti-jamming technology and offer a reliable signal extension. The VE1901AUST can be easily mounted in a 1-gang junction box with US wall plate concealing bulky cable setups and presenting the needed information in sight. In addition with built-in PoH (Power over HDBaseT) function the VE1901AUST receives power supply from a connected PoH PSE (Power Source Equipment) supported receiver and streamlines complex power line deployment.
With the share function the VE1901AUST can remotely switch source when connecting to a compatible receiver e.g. VP1421 bringing users for more convenient AV extension. This compact transmitter provides a neat and simple installation on walls or tables enabling users to elegantly immerse their AV applications into any environment. Therefore the VE1901AUST is ideal for use in meeting rooms digital educational environments or any application requiring stable high-quality transmission and effortless installation. |
| Maximum Operating Distance | 229.66 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents | - DisplayPort HDBaseT-Lite Transmitter with US Wall Plate / PoH
- 1 x 5-pin Terminal Block
- 1 x Faceplate
- 2 x Flat Head Screws
- 1 x Power Adapter
- 1 x User Instructions
|
| Product Name | DisplayPort HDBaseT-Lite Transmitter with US Wall Plate / PoH |
| Product Type | Video Extender Transmitter |
| Twisted Pair Cable Standard | Category 6a |
| UPC Alternates | 672792012402 |
