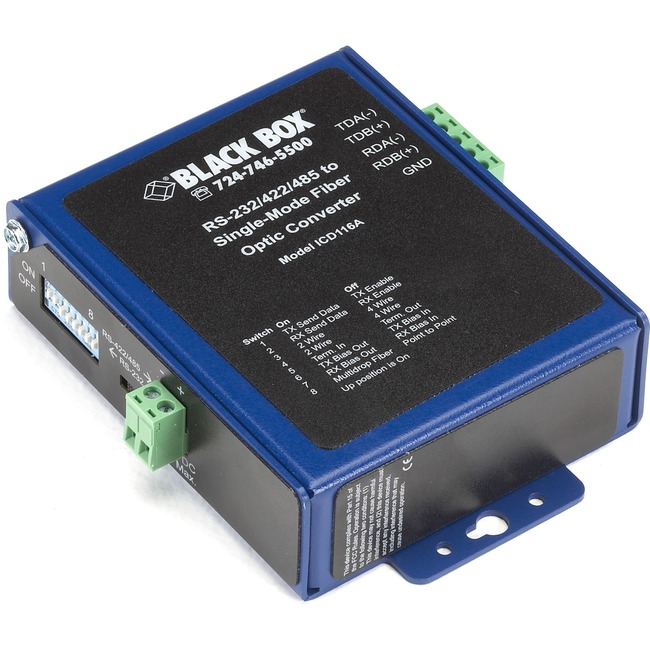

Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter

Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter

New
Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter - 1 x SC Ports - Rail-mountable - TAA Compliant
0 Review(s) Item: ICD116A | By: Black Box |  0 In Stock

Sorry This Product is Currently not Available to Buy.

  • A heavy-duty, industrial-strength serial-to-fiber converter
  • Converts serial signals for single mode fiber transmission up to 15 kilometers (9.3 mi.)
  • Rugged, IP30-rated metal case for panel mounting.
  • Tolerates temperatures ranging from -30 to +185º F (-40 to +85º C).
  • Designed to withstand both shock and vibration
  • Boasts 2-kV triple isolation for safeguarding data and equipment
  • Supports fiber ring communications with 31 other units
More Details
Sorry This Product is Currently not Available to Buy.

You may be also interested
Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter - 1 x SC Ports - Rail-mountable - TAA Compliant
1 x SC Ports - Rail-mountable - TAA Compliant

Product Specifications

Fiber Mode SupportedSingle-mode
Maximum Distance Supported9.32 Mile
Number of SC Ports1
Additional Information

Power supply not included. Must be ordered separately.

Brand NameBlack Box
Certifications & StandardsCE
Country of originUnited States
Depth5.2"
Environmental CertificationRoHS
Environmentally FriendlyYes
Form factorRail-mountable
Height1.3"
Limited Warranty5 Year
ManufacturerBlack Box Corporation
Manufacturer Part NumberICD116A
Manufacturer Website Addresshttp://www.blackbox.com
Marketing InformationMeets stringent IEC and IEEE specs.
Encased in an IP30-rated enclosure the converter's been put through some of the most exacting tests in the industry. The high-grade converter meets the requirements of two standards that make it suitable for electrical substation installations-IEC 61850-3 and IEEE 1613-specifications that are more stringent than NEMA TS1/TS2 requirements for transportation applications.

Plus as a fiber-based conversion and extension device it's inherently immune to electromagnetic and radio-frequency interference (EMI/RFI) as it uses the optical cable to extend RS-232 RS-422 and RS-485 serial data as far as 15 kilometers (9.3 mi.).
Media Type SupportedOptical Fiber
Product NameIndustrial Opto-Isolated Serial to Fiber Single-Mode SC Converter
Product TypeTransceiver/Media Converter
Total Number of Ports2
UPC Alternates013269154100 657248925680 822088100638
USBNo
Weight (Approximate)8 oz
Width3.7"

Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
