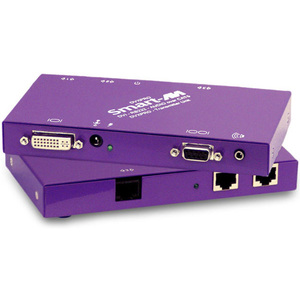

SmartAVI DVX-PRO Cat-5 DVI Video Console/Extender - 1 x 1 - WUXGA, SXGA - 250ft
1 x 1 - WUXGA, SXGA - 250ft
| Network (RJ-45) | Yes |
| Number of DVI Outputs | 1 |
| Transmitter Depth | 6.13" |
| Transmitter Height | 0.83" |
| Transmitter Weight (Approximate) | 6.40 oz |
| Transmitter Width | 6.25" |
| Brand Name | SmartAVI |
| Connectivity technology | Wired |
| Country of origin | United States |
| Form factor | Rack-mountable |
| Limited Warranty | 1 Year |
| Manufacturer | Smart Audio Video Innovation |
| Manufacturer Part Number | DVX-PROS |
| Manufacturer Website Address | http://www.smartavi.com |
| Marketing Information | SmartAVI's DVX-PRO not only extends 1080p (1920x1080 resolution) HD DVI-D video signals up to 250 feet but RS-232 functions as well. DVI-D and RS-232 Extension Solution Capable of 1080p Full HD video signal extension up to 250 feet the DVX-Pro is a powerful solution for DVI-D extension. As an added bonus the DVX-Pro also features RS-232 functionality perfect for sending commands to devices remotely. These RS-232 control signals lets users switch channels or adjust audio from a convenient and comfortable distance. Affordable CAT5 DesignThe DVX-Pro uses highly affordable and popular CAT5 cabling to extend DVI-D signals without putting pressure on users' wallets. Great for use in restaurants airports retail stores and more the DVX-Pro pairs well with SmartAVI signage and video wall solutions in applications ranging from promotions to decorative digital displays.
Features: - Top Image Quality at all Resolutions.
- Video Resolutions up to 1920 x 1200 @ 60Hz (1280 x 1024 @ 75Hz)on all distances up to the maximum distance.
- User selectable: DCC-Information used from the remotely located Monitor from the locally located Monitor or from an internal DDC Table.
- Basic device to remotely locate Touch Screen and Sound.
- Full duplex RS232 up to 150kbps.
- Maximum Screen Resolution on all distances: 250 ft w/ STP Cat5e.
- Compatible with all operating systems.
- Compatible with all major Touch Screen and Tablet.
- Rack Mount options 19
|
| Maximum Operating Distance | 250 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 4 |
| Package Contents | - 1 x DVX-PRO-TX Transmitter Unit
- 1 x DVX-PRO-RX Receiver Unit
- 2 x Extender unit Power Supplies
- Dual-Link DVI M/M Cable
- 1 x Quick Start and Installation Guide
|
| Product Name | DVI-D/Sound/RS-232 CAT6 STP Extender |
| Product Type | Video Extender Transmitter/Receiver |
| Twisted Pair Cable Standard | Category 6 |
| UPC Alternates | 813280014175 813280021203 |
