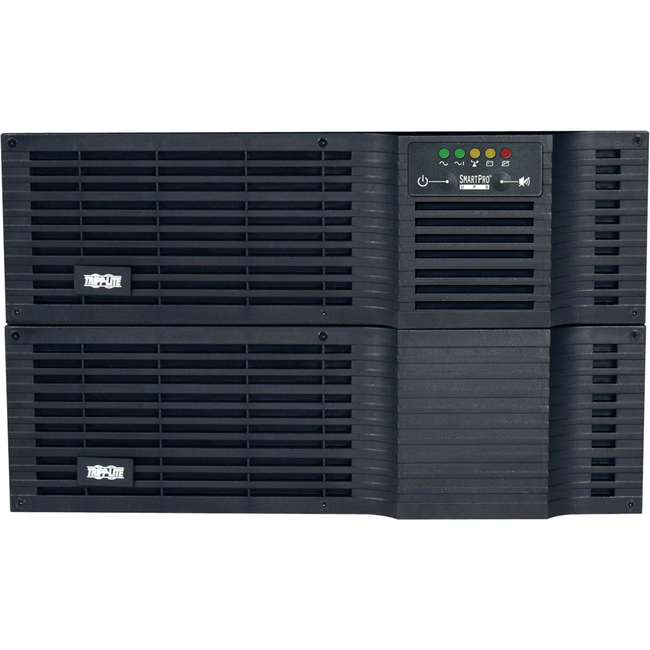

Tripp Lite UPS Smart 5000VA 4000W Rackmount AVR 208V/120V Pure Sign Wave 5kVA USB DB9 6URM - 5000VA/4000W - 16 Minute Full Load - 10 x NEMA 5-15R, 2 x NEMA 5-20R, 1 x NEMA L6-30R, 1 x NEMA L14-30R
5000VA/4000W - 16 Minute Full Load - 10 x NEMA 5-15R, 2 x NEMA 5-20R, 1 x NEMA L6-30R, 1 x NEMA L14-30R
| Load Capacity (VA) | 5000 VA |
| Load Capacity (W) | 4000 W |
| Receptacle Detail | 2 x NEMA 5-20R |
| Receptacle Detail | 1 x NEMA L6-30R |
| Receptacle Detail | 1 x NEMA L14-30R |
| Receptacle Detail | 10 x NEMA 5-15R |
| Waveform Type | Sine Wave |
| Additional Information | - Large 5000VA / 4000 watt output capacity with full time sine wave output offers guaranteed compatibility with all equipment types
- High power density 5kVA power module and battery pack occupy only 3 rack spaces (3U) each (UPS and battery pack use 6U when installed)
- 38 minutes half load runtime expandable runtime with multiple external battery packs (part# BP48V60RT3U)
- Line interactive voltage regulation corrects severe brownouts and overvoltages without using battery power
- Dual voltage output is simultaneously compatible with both 208 and 120V equipment
- 14 total outlets (120V: 10 5-15R 2 5-20R / 208v: 1 L6-30R 1 L14-30R)
- Diagnostic LEDs provide visual indication of 17 separate performance conditions
- Included PowerAlert Software provides e-mail or pager notification of power problems and the simultaneous automatic unattended shutdown of multiple servers
- 4 built-in communications ports (2-DB9 2-USB) for remote monitoring and unattended shutdown
- Slot for SNMP/web card SNMPWEBCARD and environmental sensor ENVIROSENSE for remote communications in large IP environments
- 8 customized load management receptacles can be individually powered off and back on again via software interface to reboot remote equipment or automatic "load shedding" of less critical loads to extend battery runtime for the most critical equipment
- Emergency Power Off (EPO) interface for emergency shutoff in large facilities
- Hot-swappable / user replaceable batteries allow on-site battery replacement through the front panel without powering off connected equipment or removing the UPS from the rack
- UPS battery set ships fully assembled and ready for connection to the power module no time consuming connection of individual internal batteries by user is necessary
- $250000 Ultimate Lifetime Insurance (USA & Canada Only). No warranty cards required for coverage!
- 2 year manufacturers product warranty
|
| Alarm | Overload |
| Alarm | On Battery |
| Alarm | Low Battery |
| Backup/Run Time (Full Load) | 16 Minute |
| Backup/Run Time (Half Load) | 38 Minute |
| Battery Chemistry | Sealed Lead Acid (SLA) |
| Battery life | 6 Year |
| Brand Name | Tripp Lite |
| Certifications & Standards | UL1778 (USA) cUL (Canada) FCC Class A (emissions) NOM (Mexico) Conforms to IEEE 587 / ANSI C62.41 specifications |
| Cord Length | 10 ft |
| Country of origin | China |
| Depth | 16.8" |
| Height | 3.5" |
| Hot Swappable | Yes |
| Input voltage | 220 V AC |
| Limited Warranty | 3 Year |
| Load Capacity | 5000 VA/4000 W |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SMART5000RT3U |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite's line-interactive SMART5000RT3U UPS System protects server networking or telecommunications equipment from blackouts voltage fluctuations and surges in a compact tower/rackmount housing. Large capacity 5000VA/4000W power module converts raw 208V AC input to fully regulated dual output 208/120 voltage for simultaneous protection of both high- and low-voltage equipment loads. True sine wave output at all times offers guaranteed compatibility with all equipment types. Includes 14 outlets 8 of which can be individually reset via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical equipment. Includes slot for internal SNMP/web card plus two DB9 and two USB enhanced monitoring ports for unattended shutdown remote control and monitoring of UPS system and power data. 2 Year Warranty standard. 3 Year Warranty with product registration. |
| Maximum Operating Temperature | 104°F (40°C) |
| Network Management | SNMP Manageable |
| Output voltage | 208 V AC |
| Package Contents | - SMART5000RT3U UPS
- SMART5000RT3U UPS System
- BP48V60RT3U battery pack
- PowerAlert Software and cabling
- Mounting hardware
- Instruction manual with warranty information
|
| Plug/Connector Type | NEMA L6-30P |
| Product Line | SmartPro |
| Product Name | SMART5000RT3U 5000 VA Rack/Tower Line Interactive UPS |
| Product Type | Line-interactive UPS |
| Rack Height | 6U |
| Receptacle Type | NEMA 5-15R |
| Receptacle Type | NEMA 5-20R |
| Receptacle Type | NEMA L6-30R |
| Receptacle Type | NEMA L14-30R |
| Status Indicators | 5 front panel LEDs - Green 5 front panel LEDs - Green POWER LED Green VOLTAGE CORRECTION LED 3 color BATTERY CHARGE LED 3 color OUTPUT LOAD LED red BATTERY WARNING LED |
| Total Number of Expansion Slots | 1 |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 4 Hour |
| UPC Alternates | 031112210537 037332099242 037332100450 725959395235 757584031011 |
| Weight (Approximate) | 58.50 lb |
| Width | 17.3" |
