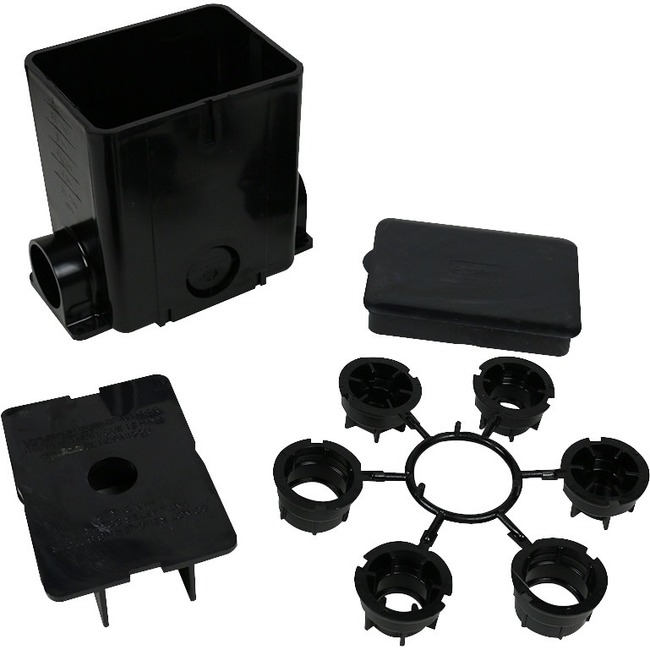

Wiremold Modulink 880MP Series Rectangular Plastic Floor Box - 2-gang - Black - Plastic, Polyvinyl Chloride (PVC)
2-gang - Black - Plastic, Polyvinyl Chloride (PVC)
| Number of Gangs | 2 |
| Product Material | Polyvinyl Chloride (PVC) |
| Product Material | Plastic |
| Brand Name | Wiremold |
| Country of origin | United States |
| Depth | 6" |
| Environmental Certification | RoHS |
| Environmental Certification | PEP ecopassport |
| Environmentally Friendly | Yes |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 880MP |
| Manufacturer Website Address | http://www.legrand.us |
| Marketing Information | TopGuard protection. Activation covers for the 880MP PVC box are TopGuard protected. These cover assemblies keep out water dirt and debris from the power and communication compartments.
Multiple service capability. Eliminates the cost of a separate floor box and cover to accommodate communication service.
Depth markings on exterior of the box. Makes floor box depth calculations quick and easy. Reduces installation time and labor costs.
1 1/4'' [32mm] conduit openings. Provides the largest conduit feed in the industry. Meets customer requirements for greater communication cable capacity.
Ratchet adjusting ring. Allows connection of cover flange without glue or mechanical fasteners. Reduces installation time and cost by providing 10° of post-pour adjustment of the cover flange.
Conduit reducers and plugs provided. Allows direct reduction from 1 1/4'' [32mm] conduit to 1'' [25mm] 3/4'' [19.1mm] or 1/2'' [12.7mm] conduit. Reduces installation time by providing direct reduction and separate plugs by eliminating the need to cut out plugs to form reducers.
Cubic inch markings on the interior of the box. No need to calculate cubic inch capacity for wire fill saving installation time.
Ratchet adjusting ring has built-in fiber storage. Provides bend radius control for fiber optic cables.
Pass-through capability. Can feed multiple gangs from a single cable feed location. Reduces total installation time.
Modular design and gangability. One SKU to order boxes with the ability to configure boxes as needed on the job site.
Boxes and covers have been listed by Underwriters Laboratories Inc. to their standard UL514A 514C 514D and Canadian standard C22.2.
Datacom connectivity options. Accepts industry standard and proprietary devices from a wide range of manufacturers to provide a seamless and aesthetically pleasing interface for voice data audio and video applications at the point-of-use. A wide selection of data and bezel options available for use with Ortronics ® TracJack ™ and Series II devices.
Internal spacer. Protects box from deformation of the sidewalls when high temperature additives are used in the concrete pour.
Redesigned mudcap. High impact mudcap protects the box from damage when heavy equipment such as scissor lift trucks come in contact with the box during installation. |
| Product color | Black |
| Product Line | Modulink |
| Product Name | Modulink 880MP Series Rectangular Plastic Floor Box |
| Product Type | Mounting Box |
| UPC Alternates | 786564524304 997847930488 |
