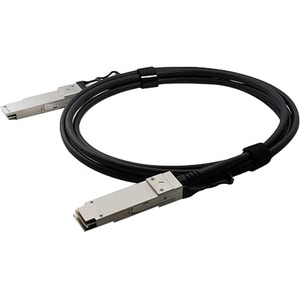

Chelsio Twinax 100Gb Passive Cable - 6.56 ft Twinaxial Network Cable for Network Device, Hub, Switch, Router, Server - First End: 1 x QSFP28 Male Network - Second End: 1 x QSFP28 Male Network - 100 Gbit/s - 30 AWG
6.56 ft Twinaxial Network Cable for Network Device, Hub, Switch, Router, Server - First End: 1 x QSFP28 Male Network - Second End: 1 x QSFP28 Male Network - 100 Gbit/s - 30 AWG
| American Wire Gauge | 30 AWG |
| Brand Name | Chelsio |
| Cable length | 6.56 ft |
| Cable type | Twinaxial |
| Compatibility | Chelsio Communications Adapters: - T62100-CR
- T62100-LP-CR
- T62100-SO-CR
- T61100-OCP
|
| Connector on First End | QSFP28 Male Network |
| Connector on First End | 1 x QSFP28 Male Network |
| Country of origin | Malaysia |
| Data transfer rate | 100 Gbit/s |
| Device Supported | Router |
| Device Supported | Hub |
| Device Supported | Switch |
| Device Supported | Network Device |
| Device Supported | Server |
| Environmental Certification | RoHS-6 |
| Environmentally Friendly | Yes |
| Features | Passive |
| Features | Crosstalk Protection |
| Manufacturer | Chelsio Communications |
| Manufacturer Part Number | QTAPCABLE28-2M |
| Manufacturer Website Address | http://www.chelsio.com |
| Marketing Information | Chelsio's QTAPCABLE28-2M 100Gb/s QSFP28 to QSFP28 Direct Attach Twinaxial Passive cables are designed and certified for use with Chelsio's 100 Gigabit Ethernet Unified Wire adapters. These Twinaxial cables offer a cost- effective and power-efficient cabling solution for high-speed data applications.
The Chelsio QTAPCABLE28-2M 2meter copper cable is compatible with Chelsio's T6- based Unified Wire adapters. The T6 adapters support PCI Express 3.0 host bus interface and are optimized for storage cloud computing HPC virtualization and other datacenter applications. The sixth-generation T6 ASIC technology from Chelsio provides the highest performance while dramatically lowering host-system CPU and memory overhead with on-board hardware that offloads TCP/IP iSCSI FCoE iWARP RDMA IPsec TLS/SSL DTLS and SMB 3.X crypto processing. As a result the system benefits from higher bandwidth lower latency and reduced power consumption. |
| Product Name | Twinax 100Gb Passive Cable |
| Product Type | Network Cable |
| UPC Alternates | 897709002974 |
