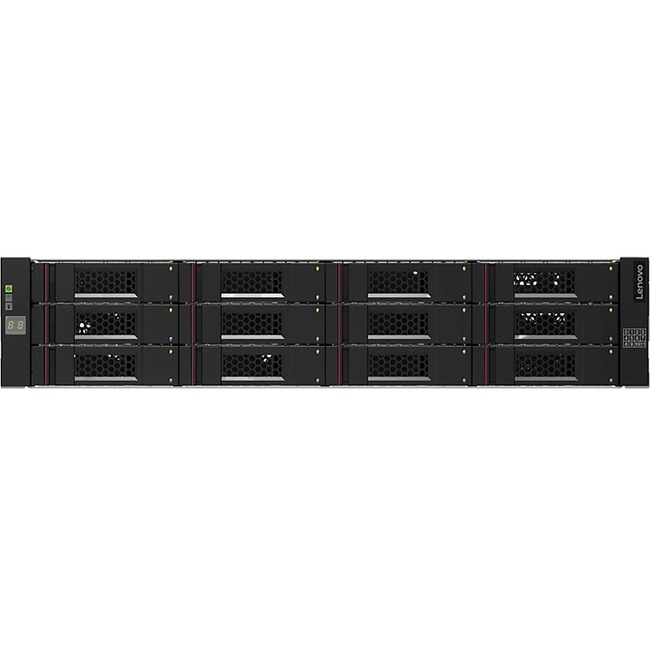

The Lenovo Storage D1212 and D1224 Disk Expansion Enclosures offer 12 Gbps SAS direct-attached storage expansion capabilities that are designed to provide simplicity speed scalability security and high availability for small to large businesses. The D1212 and D1224 deliver enterprise-class storage technology in a cost-effective solution with flexible drive configurations and RAID or JBOD (non-RAID) host connectivity. This product guide provides essential pre-sales information to understand the structure of the D1212 and D1224 drive enclosure offerings their key features and specifications components and options and configuration guidelines. This guide is intended for technical specialists sales specialists sales engineers IT architects and other IT professionals who want to learn more about the D1212 and D1224 and consider their use in IT solutions.
Introduction The Lenovo Storage D1212 and D1224 Disk Expansion Enclosures offer 12 Gbps SAS direct-attached storage expansion capabilities that are designed to provide simplicity speed scalability security and high availability for small to large businesses. The D1212 and D1224 deliver enterprise-class storage technology in a cost-effective solution with flexible drive configurations and RAID or JBOD (non-RAID) host connectivity. The D1212 and D1224 expansion units are designed for a wide range of workloads including big data and analytics video surveillance media streaming private clouds file and print serving e-mail and collaboration and databases. They also well-suited for software defined storage (SDS) and Windows Server solutions with Storage Spaces. Did you know? The D1212 and D1224 expansion enclosures offer flexible drive configurations with the choice of 2.5-inch and 3.5-inch drive form factors 10K or 15K rpm SAS and 7.2K rpm NL SAS hard disk drives (HDDs) and self-encrypting drives (SEDs) and SAS solid-state drives (SSDs). With support for daisy chaining the D1212 can be scaled up to 960 TB for capacity-optimized configurations and the D1224 can be scaled up to 192 drives for performance-optimized configurations. The D1212 and D1224 expansion units support 12 Gbps SAS connectivity which doubles the data transfer rate compared to 6 Gb SAS solutions to maximize performance of storage I/O-intensive applications. |
