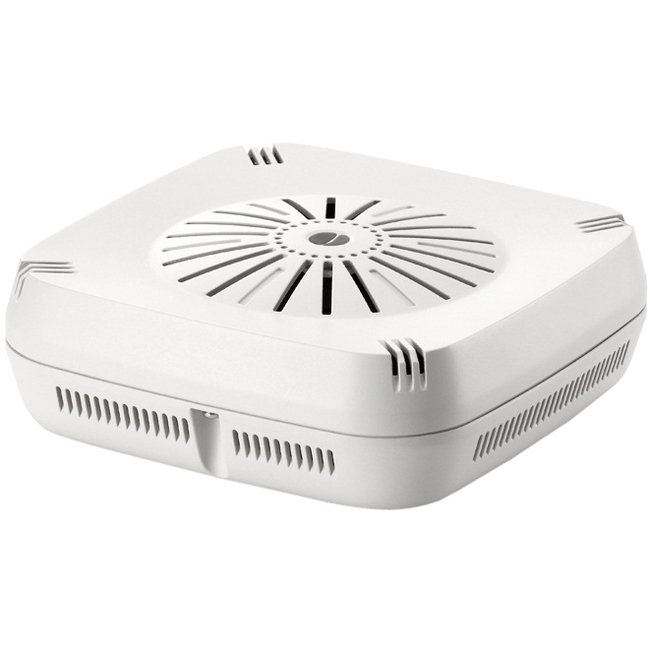

SMC EliteConnect WAP5110 IEEE 802.11n 54 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Wall Mountable
1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Wall Mountable
| Antenna Gain | 3 dBi |
| Antenna Gain | 2 dBi |
| Wireless LAN Standard | IEEE 802.11n |
| Antenna Type | PCB Antenna |
| Brand Name | SMC |
| Certifications & Standards | IEEE Standards:
- 802.11n
- 802.11a
- 802.11b
- 802.11g
- 802.3
- 802.3u
- 802.3ab
- 802.3af
- 802.11h
- 802.1x
|
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Ethernet |
| Ethernet Technology | Fast Ethernet |
| Features | MIMO Technology |
| Form factor | Wall Mountable |
| Height | 1.9" |
| Input voltage | 220 V AC |
| Input voltage | 110 V AC |
| ISM Band | Yes |
| ISM Maximum Frequency | 2.48 GHz |
| ISM Minimum Frequency | 2.40 GHz |
| Limited Warranty | 2 Year |
| Management | - CLI
- Telnet
- SSH
- Web-Based Management
- SNMP v1/v2c/v3
|
| Manufacturer | Edge-Core Networks Corporation |
| Manufacturer Part Number | WAP5110 |
| Manufacturer Website Address | http://www.edge-core.com |
| Marketing Information | The WAP5110 is an indoor 802.11a/b/g/n dual-band dual-radio enterprise AP with a 2x2 MIMO antenna configuration. Through its Gigabit Ethernet port the 802.11n dual-band wireless AP can connect to the backbone network. The WAP5110 supports 802.3af PoE which enables the AP to be powered remotely by a PoE switch. An AC power adapter option is also included for locations where PoE is not available.
Wireless 802.11n Technology
Using 802.11n MIMO (Multiple Input Multiple Output) wireless technology the AP supports two transmitting and two receiving antennas that extend range and increase the throughput by up to nine times that of existing Wi-Fi. |
| Number of Network (RJ-45) Ports | 1 |
| Product Line | EliteConnect |
| Product Name | 802.11n Dual-Band Wireless Access Point |
| Product Type | Wireless Access Point |
| UNII Maximum Frequency | 5.83 GHz |
| UNII Minimum Frequency | 5.15 GHz |
| UPC Alternates | 662698603774 |
| USB | No |
| Weight (Approximate) | 1.12 lb |
| Width | 5.5" |
| Wireless Security | - WEP 64/128-bits
- WPA
- WPA2
- WPS
- EAP-MD5
- EAP-TLS
- EAP-TTLS
- PEAP
- EAP-SIM
- EAP-AKA
- RADIUS
|
| Wireless Transmission Speed | 54 Mbit/s |
