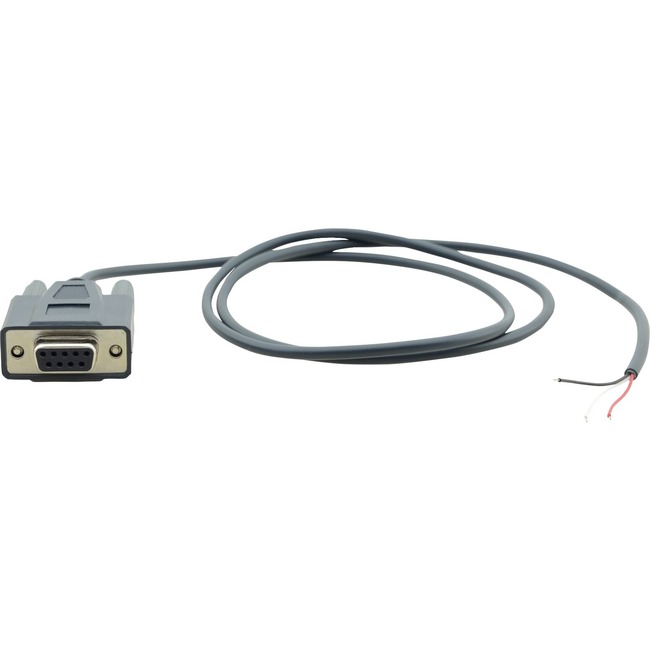

Kramer RS-232 to Open End Control Cable - 3 ft DB-9 Control Cable for PC, Touchscreen Monitor, Serial Controller - First End: 1 x 9-Pin DB-9 RS-232 Serial - Female - 28 AWG - Red, White, Black
3 ft DB-9 Control Cable for PC, Touchscreen Monitor, Serial Controller - First End: 1 x 9-Pin DB-9 RS-232 Serial - Female - 28 AWG - Red, White, Black
| Color Details | Pinout - Red White Black |
| Connector on First End Details | 1 x 9-Pin DB-9 RS-232 Serial - Female |
| Connector Type on First End | DB-9 RS-232 Serial - Female |
| Connector Type on Second End | Bare Wire |
| Material Details | Conductor - Tinned Copper |
| Product Material | Tinned Copper |
| Product Material | Nickel Plated |
| American Wire Gauge | 28 AWG |
| Brand Name | Kramer |
| Cable length | 3 ft |
| Cable type | DB-9 |
| Country of origin | China |
| Device Supported | PC |
| Device Supported | Touchscreen Monitor |
| Device Supported | Serial Controller |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Strain Relief |
| Features | Molded |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | 95-0210003 |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Marketing Information | Kramer's c-d9f/open control cables are for rs-232 applications to control devices within a professional av system. Many kramer products are rs-232 controllable and equipped with terminal block connector. This rs-232 cable helps to connect them safely to transmit the rs-232 serial commands to a touch-screen system pc or other serial controller equipped with d9 connector. - Quality construction - constructed using three 28awg isolated conductors terminated with a molded female 9-pin d-sub connector nickel plated on one side and open end non-terminated on the second side.
- pinout - wired pin to pin on pins 2 3 & 5.
- molded strain relief.
- stripped & tinned wires - at open end.
- rohs compliant.
- varied selection of lengths - 3 to 50ft (1 to 15m).
|
| Product color | Black |
| Product color | Red |
| Product color | White |
| Product Model | C-D9F/OPEN-3 |
| Product Name | RS-232 to Open End Control Cable |
| Product Type | Control Cable |
