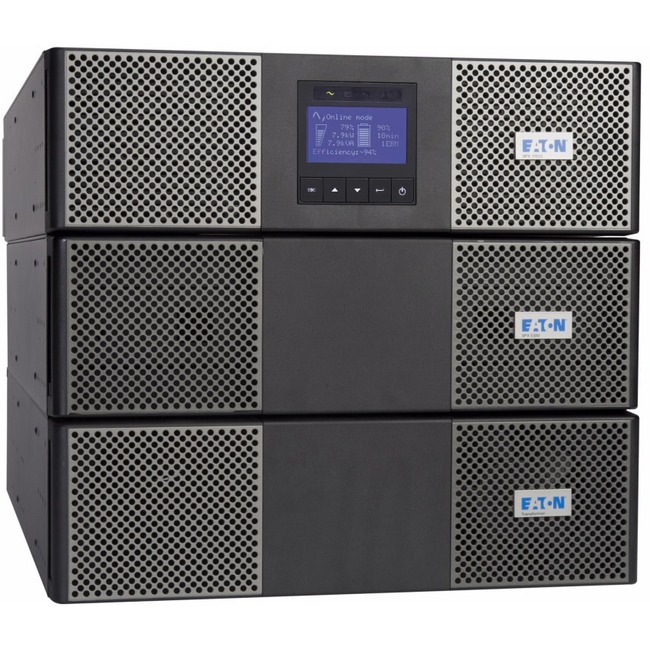

Eaton 9PX 11kVA 10kW 208V Online Double-Conversion UPS - Hardwired Input, 8x 5-20R, 2 L14-30R, 3 L6-30R Hardwired Outlets, Cybersecure Network Card, Extended Run, 9U - 9U Rack/Tower - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC, 250 V AC Output - 8 x NEMA 5-20R, 2 x NEMA L6-30R, 2 x NEMA L14-30R
9U Rack/Tower - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC, 250 V AC Output - 8 x NEMA 5-20R, 2 x NEMA L6-30R, 2 x NEMA L14-30R
| Load Capacity (VA) | 11000 VA |
| Load Capacity (Watt) | 10 kW |
| Receptacle Detail | 2 x NEMA L6-30R |
| Receptacle Detail | 2 x NEMA L14-30R |
| Receptacle Detail | 8 x NEMA 5-20R |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Waveform Type | Sine Wave |
| Application/Usage | Medical |
| Application/Usage | Edge Computing |
| Application/Usage | Healthcare |
| Application/Usage | IT |
| Application/Usage | Industrial Automation |
| Battery Characteristics | Hot-swappable/Sealed |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Chemistry | Lead Acid |
| Brand Name | Eaton |
| Country of origin | Philippines |
| Depth | 30" |
| Form factor | Rack/Tower |
| Height | 15.3" |
| Input frequency | 60 Hz |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Load Capacity | 11000 VA/10 kW |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX11KTF11M |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | 11kVA/10kW/208V Battery Backup for IT Installations and Edge Networks This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts brownouts surges and line noise that can damage valuable IT equipment or destroy data. An included transformer permits a step-down voltage from 208V to 120V to allow connection of a wider range of components. The 9PX11KTF11M is superlative power management for education commercial financial or healthcare networking components including Cisco switches and servers. Expandable Battery Backup Keeps You Operational Through Power Outages Valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can connect up to five extended battery modules (9PXEBM240RT sold separately) for hours of extended runtime or up to 12 EBMs with the optional 3U rack-mount 240VDC supercharger (SC240RT sold separately). The included 9PX maintenance bypass (MBP11K208) lets you service or replace the entire UPS without powering down connected equipment. Included Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 Gigabit network card enables full remote configuration and management including load shedding reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2 sold separately) provides a variety of environmental monitoring capabilities including temperature and humidity conditions. NEMA Outlets Protect Your Connected Components Two L14-30R three L6-30R and eight 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The 9PX11KTF11M also supports hardwired output. |
| Network Management | SNMP/Webcard |
| Network Management | Web/SNMP |
| Output voltage | 200 V AC |
| Output voltage | 220 V AC |
| Output voltage | 240 V AC |
| Output voltage | 250 V AC |
| Output voltage | 208 V AC |
| Package Contents | - 9PX UPS
- 9PXEBM240RT 3U Extended Battery Module
- 9PXTFMR11 11K 120V Stepdown Transformer
- MBP11K208 Maintenance Bypass
- Gigabit Network Card (Network-M2)
- 4-post Rail Kit
- User Manual
- Quick Start Guide
- Tower Pedestals
- Intelligent Power Software Suite CD
- RS-232 Serial Cable
- USB Cable
- Cable Gland for Hardwire Connection
- Phillips Head Screw Driver
|
| Plug/Connector Type | Hardwired |
| Product color | Black |
| Product color | Silver |
| Product Name | 9PX UPS |
| Product Series | 9PX |
| Product Type | Double Conversion Online UPS |
| Rack Height | 9U |
| Receptacle Type | NEMA L6-30R |
| Receptacle Type | NEMA 5-20R |
| Receptacle Type | NEMA L14-30R |
| Serial Port | Yes |
| Status Indicators | Graphical Display |
| UPC Alternates | 743172082091 |
| Weight (Approximate) | 392 lb |
| Width | 17.3" |
