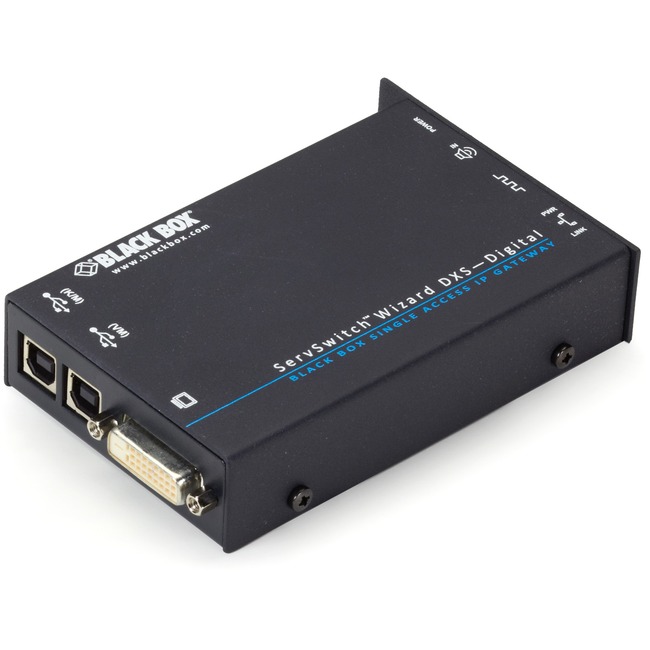

Black Box ServSwitch Wizard IP DXS, Single-Server IP Gateway, DVI - 1 Computer(s) - 4 Remote User(s) - WUXGA - 1920 x 1200 Maximum Video Resolution - 1 x Network (RJ-45) - 2 x USB - 1 x DVI - Rack-mountable
1 Computer(s) - 4 Remote User(s) - WUXGA - 1920 x 1200 Maximum Video Resolution - 1 x Network (RJ-45) - 2 x USB - 1 x DVI - Rack-mountable
| KVM Technology | Digital |
| Number of Remote Users Supported | 4 |
| Transmitter Depth | 3" |
| Transmitter Height | 1.10" |
| Transmitter Weight (Approximate) | 11.20 oz |
| Transmitter Width | 4.90" |
| Brand Name | Black Box |
| Certifications & Standards | CE |
| Connectivity technology | Wired |
| Country of origin | United Kingdom |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Graphic Mode | WUXGA |
| Input voltage | 110 V AC |
| Input voltage | 220 V AC |
| Limited Warranty | 2 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACR101A-DVI |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Description
ServSwitch Wizard IP DXS Single-Server IP Gateway DVI
Quick Facts - Easily log into and control a computer via the Internet or a corporate network.
- Enables direct KVM-over-IP (KVMoIP) computer management.
- Works with CPUs and servers with DVI-D video output.
- Supports virtual media (VM).
Further Details
- Network-independent operation. Provides full control during bootup.
- Enables BIOS-level control of a computer during crash states.
- Supports virtual media via USB for easy remote file transfer.
- Highly secure and supports both IPV4 and IPV6 addresses.
- Includes Windows® VNC viewer for configuring settings and making connections.
- Ideal for remotely upgrading or patching distant host systems.
- Enables same-session access by up to four remote users at one time.
- Compact palm-sized unit can be rackmounted in the ACU5000A.
Set up remote secure access to a computer with digital DVI-D video output using the ServSwitch™ Wizard IP DXS Single-Server IP Gateway DVI a multiuser point-to-point KVM-over-IP solution. With it you get full control of a connected CPU or server down to the BIOS level.
Communicating over a standard IP network the IP gateway provides system administrators with full non-blocking remote access from anywhere in the world. Its small size and included Windows® VNC viewer application make this KVM-over-IP solution ideal for enterprise remote management.
|
| Maximum Video Resolution | 1920 x 1200 |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 2 |
| Package Contents | - ServSwitch Wizard IP DXS Single-Server IP Gateway DVI
- 5-VDC Power Supply with 6-ft. (1.8-m) Cord
- Set of (4) Rubber Feet
- Rackmounting Bracket with (3) screws (to be Used with the ACU5000A Sold Separately)
- USB Type A to B Cable
- 3.5-mm Audio Cable 10 ft. (3 m)
- DVI-D Cable 6 ft. (1.8 m)
- End User License Agreement for VNC Application
- Safety Guide
|
| Platform Supported | PC |
| Power consumption | 12.50 W |
| Product Line | ServSwitch |
| Product Name | ServSwitch Wizard IP DXS Single-Server IP Gateway DVI |
| Product Type | KVM Extender |
| UPC Alternates | 822088077336 |
