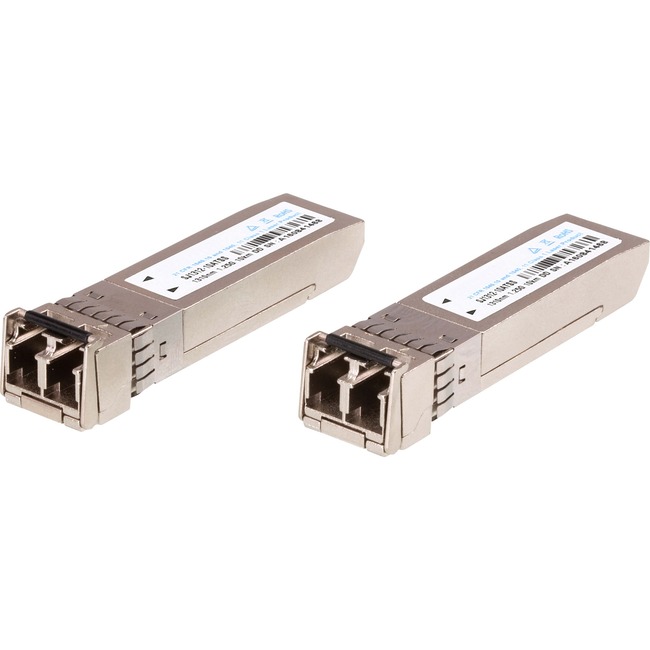

ATEN 10G Multi-Mode/300M Fiber SFP+ Module - For Data Networking, Optical Network - 1 x Duplex 10GBase-X Network - Optical Fiber - Multi-mode - 10 Gigabit Ethernet - 10GBase-X - Hot-pluggable
For Data Networking, Optical Network - 1 x Duplex 10GBase-X Network - Optical Fiber - Multi-mode - 10 Gigabit Ethernet - 10GBase-X - Hot-pluggable
| Fiber Mode Supported | Multi-mode |
| Fiber Mode Supported | Multi-mode |
| Interfaces/Ports Details | 1 x Duplex 10GBase-X Network |
| Interfaces/Ports Details | 1 x Duplex 10GBase-X Network |
| Application/Usage | Optical Network |
| Application/Usage | Data Networking |
| Application/Usage | Data Networking |
| Application/Usage | Optical Network |
| Brand Name | ATEN |
| Brand Name | ATEN |
| Compatibility | MSA Compliant |
| Compatibility | MSA Compliant |
| Depth | 2.2" |
| Depth | 2.2" |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Form factor | Hot-pluggable |
| Form factor | Hot-pluggable |
| Height | 0.5" |
| Height | 0.5" |
| Manufacturer | ATEN Technology Inc |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | 2A-141G |
| Manufacturer Part Number | 2A-141G |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | The 2A-141G 10G Multi-Mode/300M Fiber SFP+ Module is designed for use in 10GbE Ethernet environment that allows you to connect a multi-mode Gigabit Ethernet network cable to a network switch's SFP+ port. The 2A-141G provides 10GbE connectivity at distances up to 300 meters. As a hotpluggable module with a standard duplex connector for fiber communications the 2A-141G works with multi-mode-fiber (MMF) connections and operates at a nominal wavelength of 850 nm. This makes the module a cost-effective and highperformance transceiver to substantially increase the span of a compatible network switch. |
| Marketing Information | The 2A-141G 10G Multi-Mode/300M Fiber SFP+ Module is designed for use in 10GbE Ethernet environment that allows you to connect a multi-mode Gigabit Ethernet network cable to a network switch's SFP+ port. The 2A-141G provides 10GbE connectivity at distances up to 300 meters. As a hotpluggable module with a standard duplex connector for fiber communications the 2A-141G works with multi-mode-fiber (MMF) connections and operates at a nominal wavelength of 850 nm. This makes the module a cost-effective and highperformance transceiver to substantially increase the span of a compatible network switch. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Optical Fiber |
| Network Technology | 10GBase-X |
| Network Technology | 10GBase-X |
| Packaged Quantity | 2 |
| Packaged Quantity | 2 |
| Product Name | 10G Multi-Mode/300M Fiber SFP+ Module |
| Product Name | 10G Multi-Mode/300M Fiber SFP+ Module |
| Product Type | SFP+ |
| Product Type | SFP+ |
| Total Number of Ports | 1 |
| Total Number of Ports | 1 |
| Weight (Approximate) | 0.04 lb |
| Weight (Approximate) | 0.04 lb |
| Width | 0.6" |
| Width | 0.6" |
