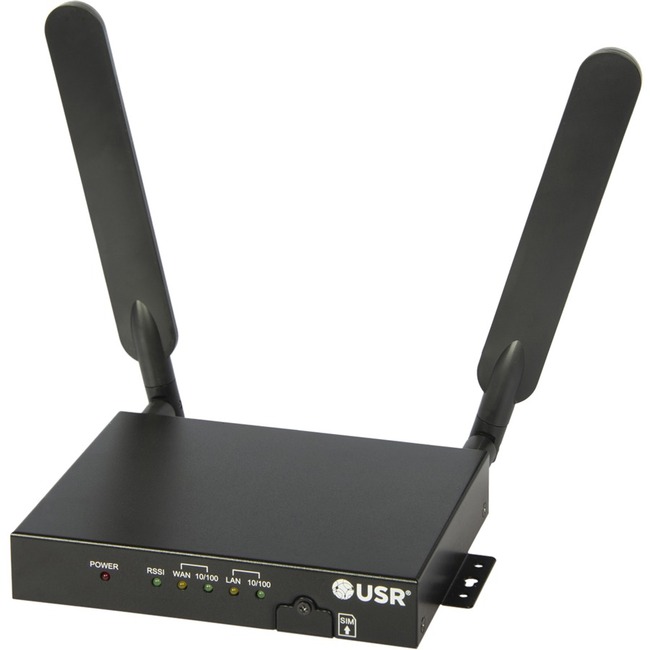

USRobotics Courier USR3513 1 SIM Cellular, Ethernet Modem/Wireless Router - 4G - LTE 1900, LTE 1700, LTE 850, LTE 700, WCDMA 1900, WCDMA 850 - HSDPA, HSUPA, LTE(2 x External) - 1 x Network Port - 1 x Broadband Port - Fast Ethernet - VPN Supported - DIN Rail Mountable
4G - LTE 1900, LTE 1700, LTE 850, LTE 700, WCDMA 1900, WCDMA 850 - HSDPA, HSUPA, LTE(2 x External) - 1 x Network Port - 1 x Broadband Port - Fast Ethernet - VPN Supported - DIN Rail Mountable
| Cellular Data Connectivity Technology | HSDPA |
| Cellular Data Connectivity Technology | HSUPA |
| Cellular Data Connectivity Technology | LTE |
| Cellular Generation | 4G |
| Cellular Network Supported | LTE 700 |
| Cellular Network Supported | LTE 850 |
| Cellular Network Supported | WCDMA 850 |
| Cellular Network Supported | LTE 1900 |
| Cellular Network Supported | WCDMA 1900 |
| Cellular Network Supported | LTE 1700 |
| Multi-SIM Supported | No |
| Brand Name | USRobotics |
| Broadband Transmission Technology | Ethernet |
| Broadband Transmission Technology | Cellular |
| Country of origin | Taiwan |
| Depth | 4.5" |
| Environmental Certification | RoHS |
| Ethernet Technology | Fast Ethernet |
| Form factor | DIN Rail Mountable |
| Height | 1" |
| Limited Warranty | 2 Year |
| Manufacturer | U.S. Robotics |
| Manufacturer Part Number | USR3513 |
| Manufacturer Website Address | http://www.usr.com |
| Marketing Information | USR® Cellular M2M Gateway provides LAN-to-WWAN routing ideal for traditional M2M and IoT applications around the world. The new USR® Courier® M2M 4G LTE Cat 1 Cellular Gateway provides cost-effective LAN-to-WWAN small-volume data transfer on all major 4G cellular networks. Affordable Cat 1 hardware reduces overall costs significantly while lowering the entry barriers to a wide range of M2M solutions making for an easier transition from analog to a long-term cellular solution. With an embedded serial port the gateway allows quick implementation for a wide variety of serial-based systems already out in the field - making it ideal for M2M Serial applications including remote maintenance and control Point-of-Sale ATMs monitoring and automation. The embedded HTML-based GUI makes initial configuration simple and fast with remote configuration available after deployment. For reliable secure persistent connections rely on USR's international cellular modems and gateways for mission-critical applications. |
| Number of External Antennas | 2 |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents | - Courier M2M 4G LTE CAT 1 Cellular Gateway
- 2 x 0db SMA Penta-band Antennas
- Ethernet Cable
- US Power Supply
- Quick Start Guide
|
| Product Line | Courier |
| Product Name | Courier M2M 4G LTE CAT 1 Cellular Gateway |
| Product Type | Modem/Wireless Router |
| UPC Alternates | 738168041770 |
| VPN Supported | Yes |
| Weight (Approximate) | 15.17 oz |
| Width | 5.9" |
