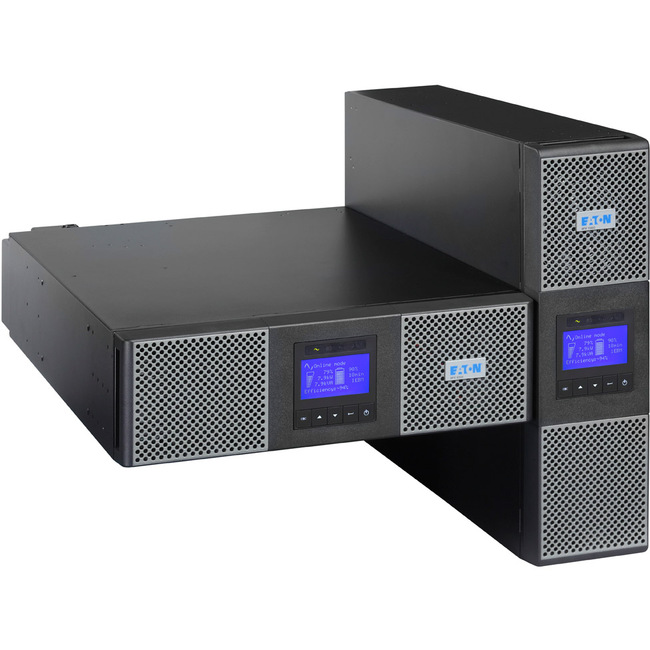

Eaton 9PX UPS 5000VA 4500 Watt 208V Network Card Included 6U Rack/Tower UPS - 6U Rack/Tower - 3 Minute Stand-by - 110 V AC, 220 V AC Input - 120 V AC, 208 V AC, 200 V AC, 220 V AC, 230 V AC, 240 V AC Output - 1 x NEMA L6-30R, 1 x NEMA L14-30R, 6 x NEMA 5-20R
6U Rack/Tower - 3 Minute Stand-by - 110 V AC, 220 V AC Input - 120 V AC, 208 V AC, 200 V AC, 220 V AC, 230 V AC, 240 V AC Output - 1 x NEMA L6-30R, 1 x NEMA L14-30R, 6 x NEMA 5-20R
| Bypass Switch | Internal |
| Bypass Switch | Internal |
| Output Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Receptacle Detail | 1 x NEMA L6-30R |
| Receptacle Detail | 1 x NEMA L14-30R |
| Receptacle Detail | 1 x NEMA L6-30R |
| Receptacle Detail | 6 x NEMA 5-20R |
| Receptacle Detail | 6 x NEMA 5-20R |
| Receptacle Detail | 1 x NEMA L14-30R |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Chemistry | Lead Acid |
| Battery Chemistry | Lead Acid |
| Brand Name | Eaton |
| Brand Name | Eaton |
| Country of origin | China |
| Depth | 28" |
| Depth | 28" |
| Emergency Power OFF | Yes |
| Emergency Power OFF | Yes |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Form factor | Rack/Tower |
| Form factor | Rack/Tower |
| Height | 10.2" |
| Height | 10.2" |
| Input frequency | 70 Hz |
| Input frequency | 70 Hz |
| Input voltage | 220 V AC |
| Input voltage | 220 V AC |
| Input voltage | 110 V AC |
| Input voltage | 110 V AC |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Load Capacity | 5000 VA |
| Load Capacity | 5000 VA |
| Manufacturer | Eaton Corporation |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX5KP1 |
| Manufacturer Part Number | 9PX5KP1 |
| Manufacturer Website Address | http://www.eaton.com |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions. |
| Marketing Information | The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions. |
| Marketing Information | 5kVA/4.5kW/208V Battery Backup for IT Installations and Edge Networks This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts brownouts surges and line noise that can damage valuable IT equipment or destroy data. The 9PX5KP1 is superlative power management for education commercial financial or healthcare networking components including Cisco switches and servers. Expandable Internal Battery Backup Keeps You Operational Through Power Outages The field-replaceable hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9PXEBM180RT sold separately) for hours of extended runtime. Included Distribution Module Helps Accommodate a Range of Connected Equipment The 9PXPPDM1 PowerPass Distribution Module allows a step-down voltage from 208V to 120V to allow the connection of a variety of IT components. It also features a maintenance bypass which lets you service or replace the 9PX5KP1 without powering down any connected equipment. Included Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 Gigabit network card enables full remote configuration and management including load shedding reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2 sold separately) provides a variety of environmental monitoring capabilities including temperature and humidity conditions. NEMA Outlets Protect Your Connected Components One L6-30R one L14-30R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The 9PX5KP1 also supports hardwired output. |
| Network Management | SNMP Manageable |
| Network Management | SNMP Manageable |
| Output voltage | 200 V AC |
| Output voltage | 208 V AC |
| Output voltage | 120 V AC |
| Output voltage | 240 V AC |
| Output voltage | 208 V AC |
| Output voltage | 120 V AC |
| Output voltage | 200 V AC |
| Output voltage | 230 V AC |
| Output voltage | 230 V AC |
| Output voltage | 240 V AC |
| Package Contents | - 9PX5K 5kVA UPS
- 9PXPPDM1 PowerPass Distribution Module
- Network-MS Web/SNMP Card
- 4-Post Rail Kit
- User Manual
- Quick Start Guide
- Tower Pedestals
- Intelligent Power Software Suite CD
- RS-232 Serial Cable
- USB Cable
- Cable Gland for Hardwire Conection
- Phillips Head Screw Driver
|
| Package Contents | - 9PX5K 5kVA UPS
- 9PXPPDM1 PowerPass Distribution Module
- Network-MS Web/SNMP Card
- 4-Post Rail Kit
- User Manual
- Quick Start Guide
- Tower Pedestals
- Intelligent Power Software Suite CD
- RS-232 Serial Cable
- USB Cable
- Cable Gland for Hardwire Conection
- Phillips Head Screw Driver
|
| Plug/Connector Type | NEMA L6-30P |
| Plug/Connector Type | NEMA L6-30P |
| Product Name | 9PX5K 5kVA UPS |
| Product Name | 9PX5K 5kVA UPS |
| Product Series | 9PX |
| Product Series | 9PX |
| Product Type | Dual Conversion Online UPS |
| Product Type | Double Conversion Online UPS |
| Product Type | Dual Conversion Online UPS |
| Rack Height | 6U |
| Rack Height | 6U |
| Receptacle Type | NEMA L14-30R |
| Receptacle Type | NEMA L6-30R |
| Receptacle Type | NEMA 5-20R |
| Receptacle Type | NEMA L14-30R |
| Receptacle Type | NEMA 5-20R |
| Receptacle Type | NEMA L6-30R |
| Software Included | Eaton Intelligent Power Software |
| Software Included | Eaton Intelligent Power Software |
| Transfer Time | 0 ns |
| Transfer Time | 0 ns |
| UPC Alternates | 743172040541 |
| UPC Alternates | 743172040541 |
| Weight (Approximate) | 202.83 lb |
| Weight (Approximate) | 202.83 lb |
| Width | 17" |
| Width | 17" |
