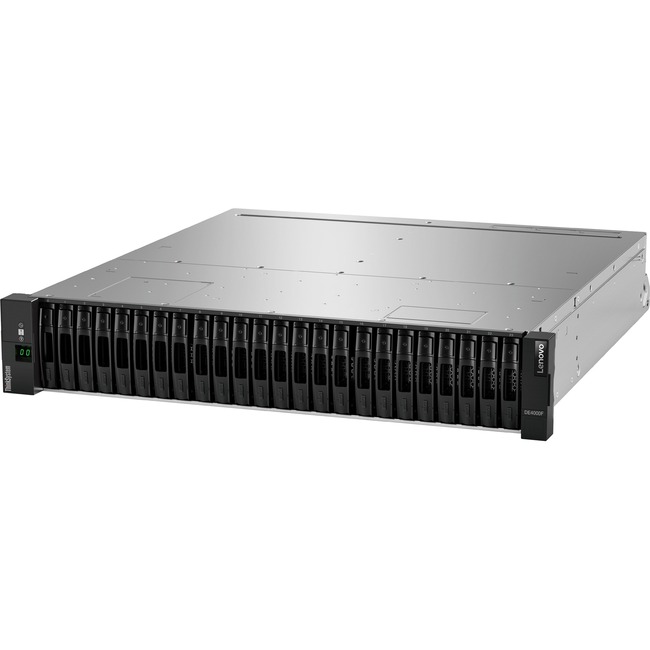

Lenovo ThinkSystem DE4000F SAN Storage System - 24 x SSD Supported - 0 x SSD Installed - 2 x 12Gb/s SAS Controller - RAID Supported 0, 1, 3, 5, 6, 10 - 24 x Total Bays - 24 x 2.5" Bay - 25 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - SSH, SMI-S, SNMP, LDAP, SSL, iSCSI - 4 SAS Port(s) External - 12 iSCSI Ports - 2U - Rack-mountable
24 x SSD Supported - 0 x SSD Installed - 2 x 12Gb/s SAS Controller - RAID Supported 0, 1, 3, 5, 6, 10 - 24 x Total Bays - 24 x 2.5" Bay - 25 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - SSH, SMI-S, SNMP, LDAP, SSL, iSCSI - 4 SAS Port(s) External - 12 iSCSI Ports - 2U - Rack-mountable
| Maximum Power Supply Wattage | 913 W |
| Number of Controllers | 2 |
| Number of Hard Drives Supported | No |
| Number of iSCSI Ports | 12 |
| Number of SAS Ports (External) | 4 |
| Number of Solid State Drive Installed | 0 |
| Redundant Power Supply | Yes |
| Brand Name | Lenovo |
| Depth | 21.8" |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | 25 Gigabit Ethernet |
| Form factor | Rack-mountable |
| Height | 3.3" |
| Host interface | iSCSI |
| Host interface | 12Gb/s SAS |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7Y76A00GWW |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Marketing Information | Lenovo ThinkSystem DE4000F is a scalable all flash entry-level storage system that is designed to provide performance simplicity capacity security and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options flexible drive configurations and enhanced data management features. The ThinkSystem DE4000F is a perfect fit for a wide range of enterprise workloads including big data and analytics video surveillance technical computing and other storage I/O-intensive applications. ThinkSystem DE4000F models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) and include two controllers each with 32 GB memory for a system total of 64 GB. Host interface cards provide 12 Gb SAS 10/25 Gb iSCSI or 8/16/32 Gb FC connections. The ThinkSystem DE4000F Storage Array scales up to 96 solid-state drives (SSDs) with the attachment of 3 Lenovo ThinkSystem DE240S 2U24 SFF Expansion Enclosures. |
| Number of Total Expansion Bays | 24 |
| Plug/Connector Type | C13 to IEC 320-C14 |
| Product Family | ThinkSystem DE |
| Product Line | ThinkSystem |
| Product Model | DE4000F |
| Product Name | ThinkSystem DE4000F SAN Storage System |
| Product Series | DE |
| Product Type | SAN Storage System |
| Protocols | SSH |
| Protocols | SSL |
| Protocols | SMI-S |
| Protocols | LDAP |
| Protocols | SNMP |
| Rack Height | 2U |
| RAID Levels | 0 1 3 5 6 10 |
| Weight (Approximate) | 54.21 lb |
| Width | 17.7" |
