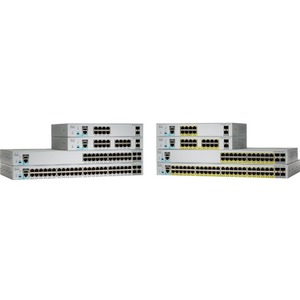

Cisco Catalyst 2960-L WS-C2960L-SM-48PQ Layer 3 Switch - 48 Ports - Manageable - 3 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - DIN Rail Mountable, Rack-mountable - Lifetime Limited Warranty
48 Ports - Manageable - 3 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - DIN Rail Mountable, Rack-mountable - Lifetime Limited Warranty
| Compatible Rack Unit | 1U |
| Number of Total Expansion Slots | 4 |
| Total Number of Network Ports | 48 |
| Brand Name | Cisco |
| Country of origin | China |
| Depth | 11.5" |
| Environmental Certification | EU RoHS |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Form factor | Rack-mountable |
| Form factor | DIN Rail Mountable |
| Height | 1.7" |
| Layer Supported | 3 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | WS-C2960L-SM-48PQ |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | Cisco® Catalyst® 2960-L Series Switches are fixed and smart-managed Gigabit Ethernet switches that provide enterprise-class access switching for branch offices out-of-the-wiring-closet applications and critical Internet of Things (IoT) deployments as well as small and medium-sized businesses. They operate on Cisco IOS® Software and support simple device management and network management via Command Line Interface (CLI) as well as an on-box web interface. Catalyst 2960-L Smart Managed Switches are secure reliable enterprise grade switches built for small office deployments. These switches can be configured and managed via an on-box web interface allowing customers a quick and reliable way to get a small branch or office network up and running within minutes. These switches also feature limited CLI support for troubleshooting and monitoring. The Cisco Catalyst 2960-L Series and 2960-L Smart Managed Switches are fully managed switches that offer advanced Layer 2 and basic Layer 3 features as well as Power over Ethernet Plus (PoE+) power. These switches deliver enhanced network security network reliability and operational efficiency. Product Highlights Cisco Catalyst 2960-L Switches feature: - 8 16 24 or 48 Gigabit Ethernet data or PoE+ ports with line-rate forwarding
- 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) uplinks or 4 fixed 10 Gigabit Ethernet SFP+ uplinks
- Perpetual PoE+ support with a power budget of up to 370W
- Enhanced version of Cisco IOS LAN Lite software
- CLI and/or intuitive Web-UI manageability options
- Device management support with:
- Over-the-air access via Bluetooth Simple Network Management Protocol (SNMP) RJ-45 or USB console access and virtual stacking
- Network management with Cisco Prime® Cisco Network Plug and Play and Cisco DNA™ Center
- Security with 802.1X support for connected devices Switched Port Analyzer (SPAN) and Bridge Protocol Data Unit (BPDU) Guard
- Basic Layer 3 features with Static routing and Routing Information Protocol (RIP)
- Fanless operation with operating temperature up to 45°C
- Compact design with a depth of less than 11.5 inches
- Reliability with higher Mean Time Between Failures (MTBF) and an Enhanced Limited Lifetime Warranty (E-LLW)
|
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 10GBase-X |
| Network Technology | 10/100/1000Base-T |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
| Power source | Power Supply |
| Product Family | Catalyst 2960-L |
| Product Line | Catalyst |
| Product Name | Catalyst 2960-L WS-C2960L-SM-48PQ Layer 3 Switch |
| Product Series | 2960-L |
| Product Type | Layer 3 Switch |
| Weight (Approximate) | 10.01 lb |
| Width | 17.5" |
