| Connectivity technology | Cable |
| Connectivity technology | Cable |
| Depth | 28" |
| Depth | 28" |
| Device Supported | Satellite Receiver |
| Device Supported | Computer |
| Device Supported | Display |
| Device Supported | Blu-ray Disc Player |
| Device Supported | Set-top Box |
| Device Supported | Projector |
| Device Supported | Projector |
| Device Supported | Satellite Receiver |
| Device Supported | Set-top Box |
| Device Supported | Blu-ray Disc Player |
| Device Supported | Display |
| Device Supported | Computer |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Graphics Modes | 4K |
| Graphics Modes | 4K |
| Height | 8.8" |
| Height | 8.8" |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | KanexPro |
| Manufacturer | KanexPro |
| Manufacturer Part Number | HDMMX6464-4K |
| Manufacturer Part Number | HDMMX6464-4K |
| Manufacturer Website Address | http://www.kanexpro.com |
| Manufacturer Website Address | http://www.kanexpro.com |

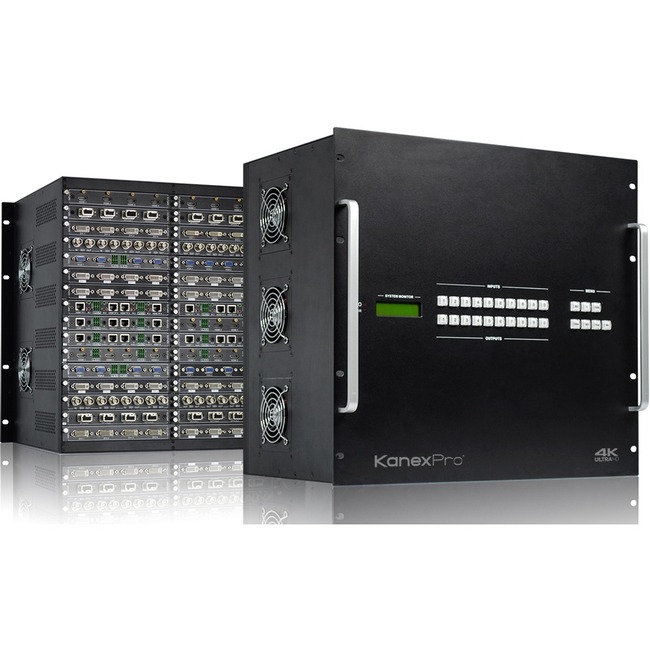

| Marketing Information | The KanexPro HDMMX6464-4K is a 64 input by 64 output modular matrix switcher chassis with 16 input slots and 16 output slots; each modular input or output card supports up to 16 device connections. As an add-on to front panel control the HDMMX6464-4K can be controlled via IR RS232 or TCP/IP connections. The optional modular input cards include the following connections: HDMI DVI VGA HDBaseT (with RS232 and bi-directional wide-band IR) Fiber Optic and analog video with digital scaling via HD15 (VGA-UXGA RGBHV RGBS RGsB RsGsBs component video S-video and composite video). The modular output cards include the following connections: HDMI SDI DVI VGA HDBaseT and Fiber Optic. Stereo audio embedding is supported on the HDMI input cards to allow analog audio to be inserted into the digital signal. Stereo audio can also be de-embedded using the HDMI or HDBaseT output cards. Advanced EDID management restricts sources to output only stereo audio while emulating the native video data from the attached displays. This system allows analog audio to be switched with the paired digital video eliminating the requirement for an additional audio matrix switcher. The clear button caps provide readable text on the front panel which can be customized for each installation. Control via IR RS232 and TCP/IP provide a wide range of options for third party control systems. Ten programmable presets provide an efficient means of configuring the video and audio distribution for common usage patterns. Applications Ideal for various large-scale commercial applications such as control centers digital signage smart lecture halls medical and government facilities and residential environments where 4K UHD signal distribution and audio is critical.
|
| Marketing Information | The KanexPro HDMMX6464-4K is a 64 input by 64 output modular matrix switcher chassis with 16 input slots and 16 output slots; each modular input or output card supports up to 16 device connections. As an add-on to front panel control the HDMMX6464-4K can be controlled via IR RS232 or TCP/IP connections. The optional modular input cards include the following connections: HDMI DVI VGA HDBaseT (with RS232 and bi-directional wide-band IR) Fiber Optic and analog video with digital scaling via HD15 (VGA-UXGA RGBHV RGBS RGsB RsGsBs component video S-video and composite video). The modular output cards include the following connections: HDMI SDI DVI VGA HDBaseT and Fiber Optic. Stereo audio embedding is supported on the HDMI input cards to allow analog audio to be inserted into the digital signal. Stereo audio can also be de-embedded using the HDMI or HDBaseT output cards. Advanced EDID management restricts sources to output only stereo audio while emulating the native video data from the attached displays. This system allows analog audio to be switched with the paired digital video eliminating the requirement for an additional audio matrix switcher. The clear button caps provide readable text on the front panel which can be customized for each installation. Control via IR RS232 and TCP/IP provide a wide range of options for third party control systems. Ten programmable presets provide an efficient means of configuring the video and audio distribution for common usage patterns. Applications Ideal for various large-scale commercial applications such as control centers digital signage smart lecture halls medical and government facilities and residential environments where 4K UHD signal distribution and audio is critical.
|
| Maximum Video Resolution | 3840 × 2160 |
| Maximum Video Resolution | 3840 × 2160 |
| Number of Displays Supported | 64 |
| Number of Displays Supported | 64 |
| Package Contents |
|
| Package Contents |
|
| Product Name | 4K UHD 64x64 Modular Matrix Switcher |
| Product Name | 4K UHD 64x64 Modular Matrix Switcher |
| Product Type | Audio/Video Switchbox |
| Product Type | Audio/Video Switchbox |
| UPC Alternates | 813982020290 814556017746 |
| UPC Alternates | 813982020290 814556017746 |
| Width | 19" |
| Width | 19" |
