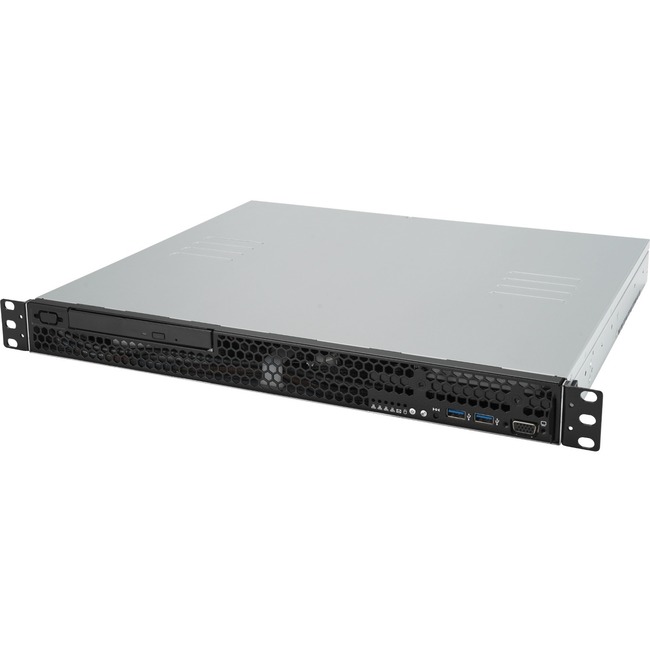

Asus RS100-E11-PI2 Barebone System - 1U Rack-mountable - Socket LGA-1200 - 1 x Processor Support - Intel C252 Chip - 128 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 4 Total Memory Slots - Serial ATA RAID Supported Controller - ASPEED AST2600 64 MB Graphic(s) - 2 3.5" Bay(s) - Processor Support (Xeon, Pentium) - Gigabit Ethernet - 2 USB 3.2 Gen 1 Port(s) - 3 Year
Intel C252 Chip - 128 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 4 Total Memory Slots - Serial ATA RAID Supported Controller - ASPEED AST2600 64 MB Graphic(s) - 2 3.5" Bay(s) - Processor Support (Xeon, Pentium) - Gigabit Ethernet - 2 USB 3.2 Gen 1 Port(s) - 3 Year
| Chipset | Intel C252 |
| Chipset Manufacturer | Intel |
| Chipset Model | C252 |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2600 |
| Graphics Memory Capacity | 64 MB |
| Maximum Memory Supported | 128 GB |
| Memory Standard | DDR4-3200/PC4-25600 |
| Number of 3.5" Bays | 2 |
| Number of External 5.25" Bays | 1 |
| Processor Socket | Socket LGA-1200 |
| Processor Supported | Xeon |
| Processor Supported | Pentium |
| Supported Storage Drive Types | HDD |
| Brand Name | Asus |
| Controller Type | Serial ATA |
| Country of origin | China |
| Depth | 16.9" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Limited Warranty | 3 Year |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | RS100-E11-PI235W |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | RS100-E11-PI2 Intel® Xeon® E-2300 1U short-depth server with four DIMM one M.2 two PCIe 4.0 slots two NVMe dual LAN Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM Key Features - Powered by the Intel® Xeon® E platform
- 95W CPU and up to 128GB memory support
- Flexible storage expandability with up to 5 storage devices
- M.2 slot accommodate 2280-size SSDs for faster boot speed
- Dual Intel®Gigabit Ethernet with teaming support
- Comprehensive I/O connectivity to meet different needs
- Complete server management with ASUS Control Center
- Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
Intel Xeon E-2300 processors Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts Intel Xeon E-2300 processors deliver essential server performance expandability and reliability small businesses to support critical business and customer data needs. PCIe 4.0 Ready PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth which is double the speed of PCIe 3.0 offering lower power consumption better lane scalability and backwards compatibility. ASUS RS100-E11-PI2 servers are PCIe 4.0 ready to support a diverse array of graphics storage and networking - enabling flexible scalability for demanding or increasing workloads. Enhanced security
ASUS RS100-E11-PI2 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.
In addition all RS100-E11-PI2 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities. High-resolution HDMI monitoring RS100-E11-PI2 server features a HDMI 1.4 port directed from CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring. Dual Ethernet Bandwidth Featuring dual onboard LAN ported by Intel I210-AT Ethernet Controller RS100-E11-PI2 server provides server-grade connectivity and supports high-density high-bandwidth low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications |
| Memory Technology | DDR4 SDRAM |
| Number of Total Expansion Bays | 3 |
| Number of Total Memory Slots | 4 |
| Product Model | RS100-E11-PI2 |
| Product Name | RS100-E11-PI2 Barebone System |
| Product Type | Barebone System |
| Rack Height | 1U |
| Weight (Approximate) | 16.53 lb |
| Width | 15" |
