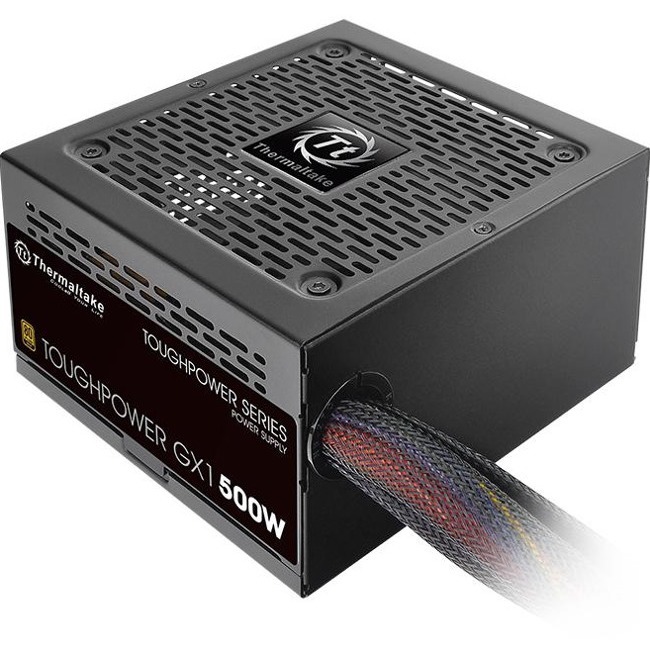

Thermaltake Toughpower GX1 SP-500AH2NCG Power Supply - Internal - 120 V AC, 230 V AC Input - 3.3 V DC @ 18 A, 5 V DC @ 18 A, 12 V DC @ 41 A, 12 V DC @ 300 mA, 5 V DC @ 2.5 A Output - 500 W - 1 +12V Rails - 1 Fan(s)
Internal - 120 V AC, 230 V AC Input - 3.3 V DC @ 18 A, 5 V DC @ 18 A, 12 V DC @ 41 A, 12 V DC @ 300 mA, 5 V DC @ 2.5 A Output - 500 W - 1 +12V Rails - 1 Fan(s)
| Modular | No |
| Specification Compliance | ATX12V/EPS12V |
| Specification Compliance | ATX12V/EPS12V |
| Brand Name | Thermaltake |
| Country of origin | China |
| Environmentally Friendly | Yes |
| Form factor | Internal |
| Height | 5.5" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Length | 5.9" |
| Manufacturer | Thermaltake Technology Co. Ltd |
| Manufacturer Website Address | http://www.thermaltakeusa.com |
| Marketing Information | Thermaltake Toughpower GX1 500W Built to deliver 80 PLUS Gold efficiency Toughpower GX1 comes with capacities ranging from 500W to 700W and the application of 120mm Fluid Dynamic Bearing Fan <±3% tight voltage regulation Japanese 105°C/221°F main capacitors and premium components. Its near silent operation trouble free installation and reliable performance are making itself one of the best values for basic system upgrades.
80 PLUS Gold Certified and Intel C6/C7 States Ready Toughpower GX1 saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.
Ultra Quiet 120mm Fluid Dynamic Bearing Fan Featuring an 120mm Fluid Dynamic Bearing Fan to kept friction at really low levels even after prolonged usage while guaranteeing superior cooling performance and silent operation. Low Ripple Noise The maximum ripple/noise is lower than 60mV on the +12V rail and lower than 40mV on the +5V &+3.3V rails to ensure an excellent power supply stability. Low ripple noise will keep your performance-critical components such as high-end graphics cards to operate reliably for longer.
? ±3% Strict Voltage Regulation The voltage regulation of the PSU is set to no more than ±3% for major rails to meet the highest performance. The strict voltage regulation is better than Intel's standard ±5% for major rails and ±10% for -12V.
Sophisticatedly Designed Exterior Shroud Sophisticatedly designed exterior shroud stimulates the aesthetic of your power supply while protecting the inner components from a direct contact. Multiple Connectors Comes with multiple connectors that power the system at an advantageous voltage and make cable installation an easy task. High Quality Japanese 105°C/221°F Main Capacitor Comes with high quality 105 °C (221 ° F) Japanese main capacitor to greatly improve the durability and offer the highest stability and reliability.
High Amperage Single +12V Rail & DC to DC Design Powerful single +12V rail and DC to DC design ensure a stable and reliable supply to other PC components. |
| Number of Fans | 1 |
| Output power | 500 W |
| Output voltage | 3.3 V DC @ 18 A |
| Output voltage | 5 V DC @ 18 A |
| Output voltage | 12 V DC @ 41 A |
| Output voltage | 12 V DC @ 300 mA |
| Output voltage | 5 V DC @ 2.5 A |
| Product Line | Toughpower GX1 |
| Product Model | SP-500AH2NCG |
| Product Name | Toughpower GX1 SP-500AH2NCG Power Supply |
| Product Type | Power Supply |
| UPC Alternates | 841163002582 |
| Width | 3.4" |
